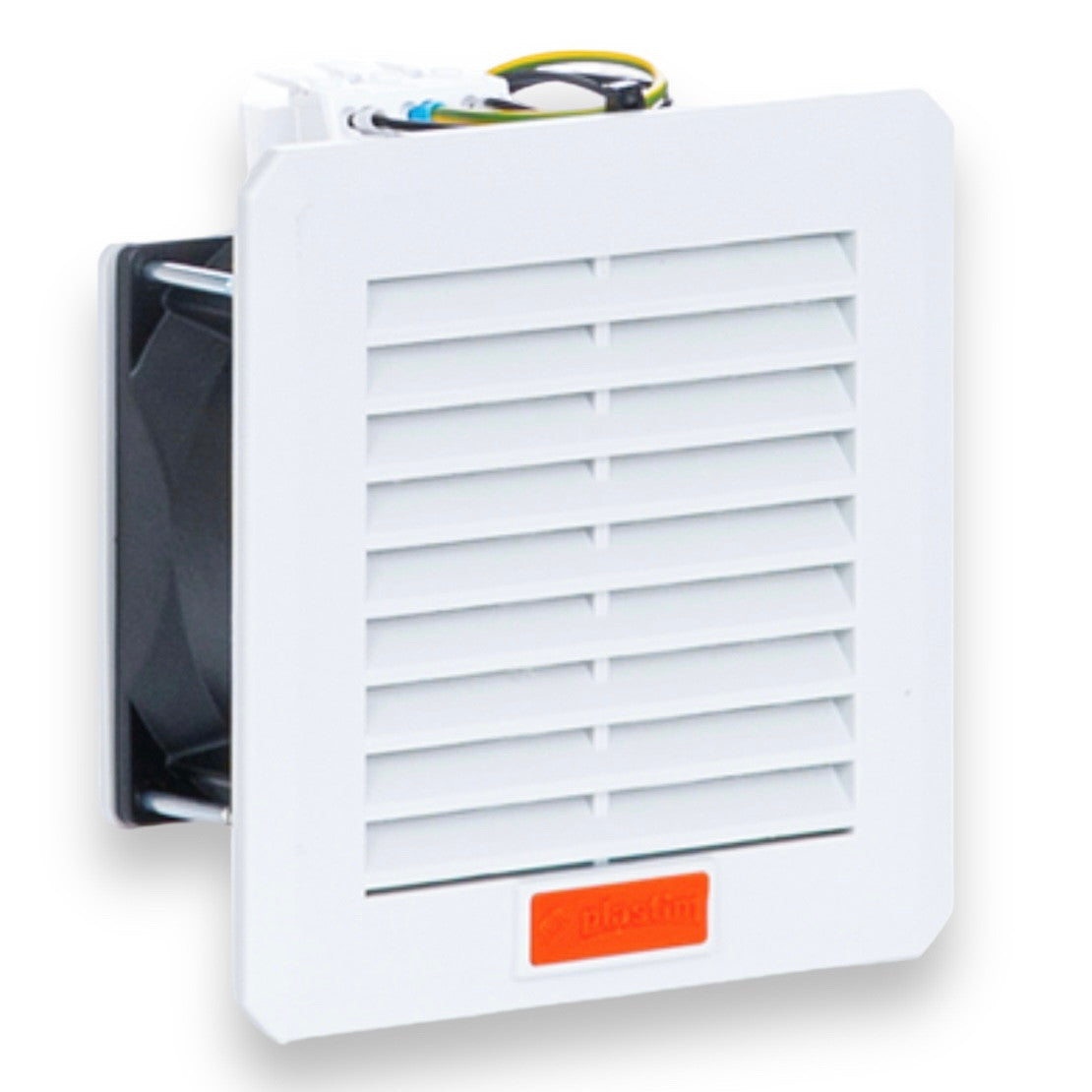

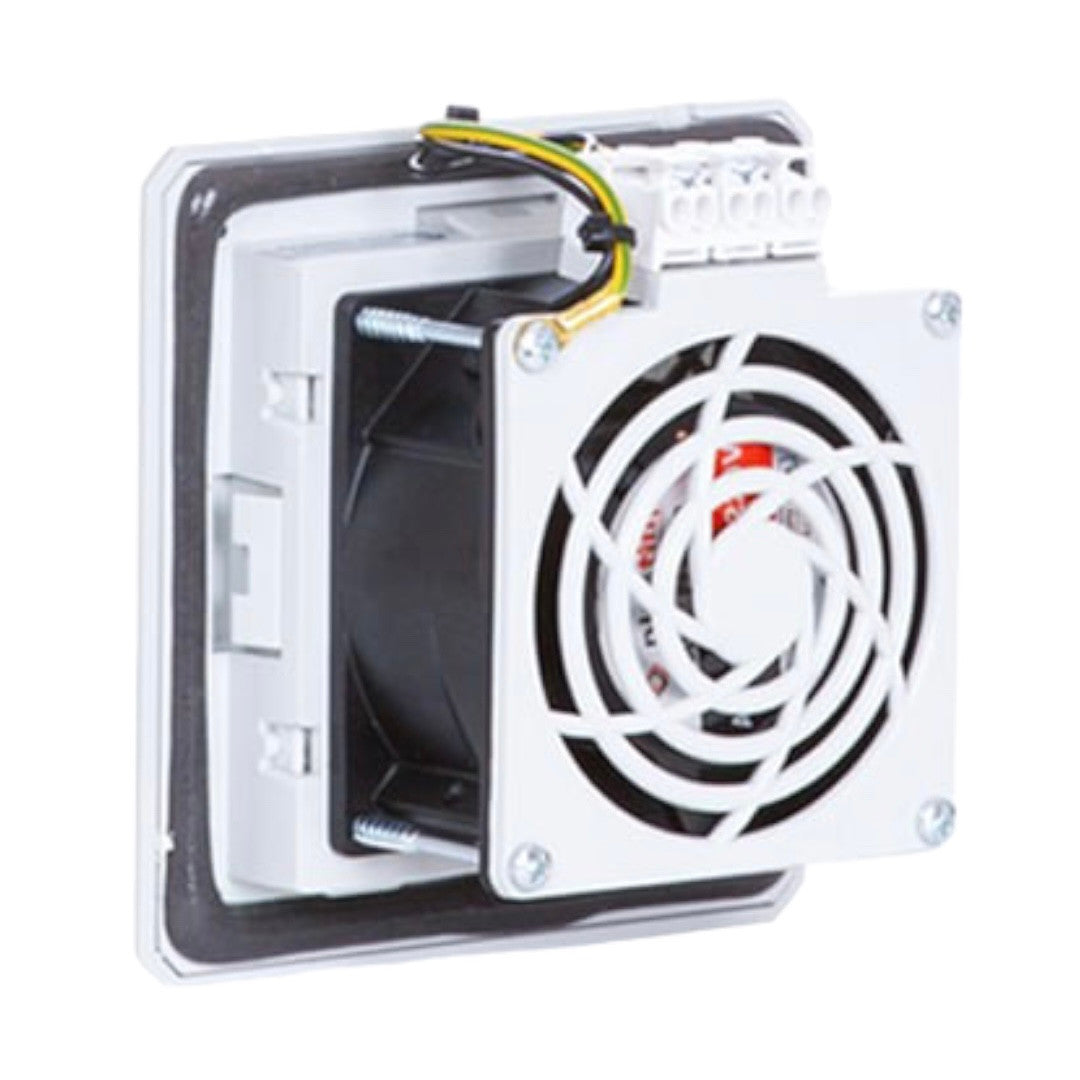

Ventilation grille with fan and filter, size 120x120 mm, for installation in electrical panels, automation cabinets, ATMs or gaming terminals. PTF1000T, manufacturer Plastim (Turkey)
Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, vending machines, automation cabinets, control panels, gas stations. Typically installed on the side walls of enclosures to maintain IP rating.
- External dimensions: 120x120x58.5 mm.
- Mounting dimensions: 92x92 mm
- Volume flow rate: 30 (41) m3/h
- Noise level: 28 (31) dB(A)
- Bearing: sleeve bearing
- Operating voltage: 220-230 V AC, 50/60 Hz
- Current consumption: 0.08 (0.07) A
- Rated power: 14 (13) W
- Electrical connection: 3-pole 2.5 mm2 terminal
- Flow direction: Outside to inside (reversible)
- Operating temperature: -10/+70 °C
- Protection class: IP54
- Plastic material: UL94 V0 ABS Flame retardant
- Sealing: self-adhesive
- Color: RAL 7035 (RAL 7032 on request)
- Weight: 0.4 kg
- Installation: quick-fit
To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller; both devices can be purchased on our website.
