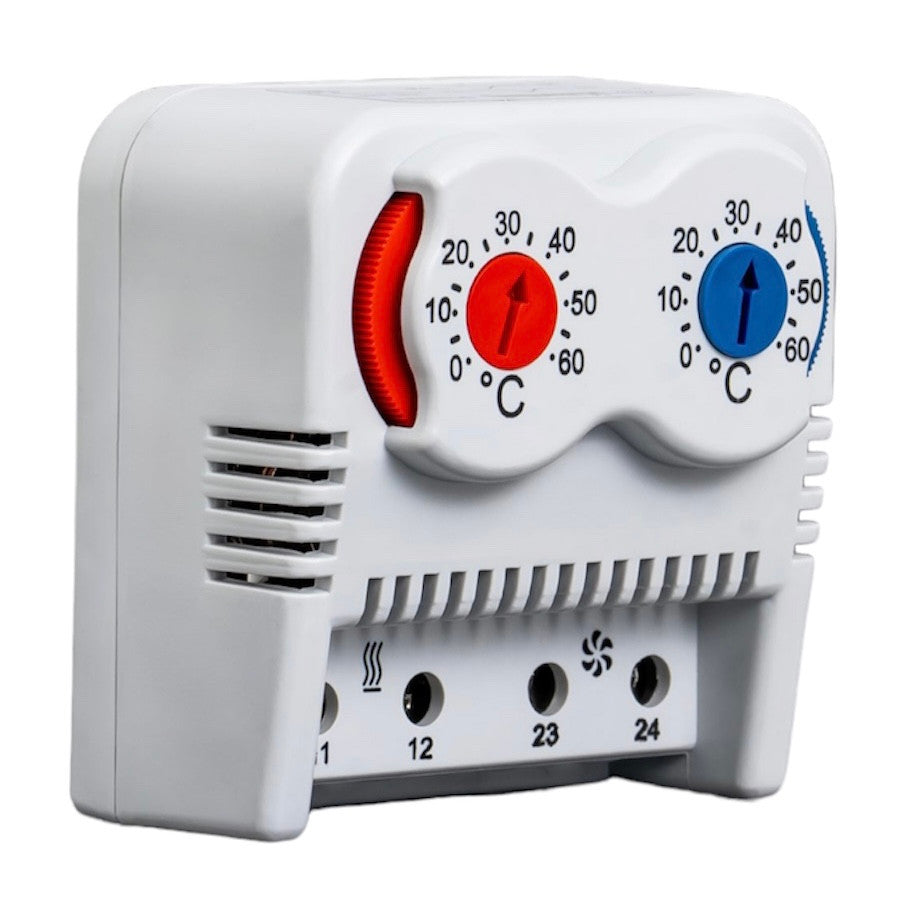

PTHVT Double / double bimetallic thermostat NC+NO switching, range 0-60°C Plastim
- Regular price
- €14,44
- Regular price
-
- Sale price
- €14,44
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Double bimetallic thermostat PTHVT Double thermostat NC+NO (cooling/heating), switchable, 0-60°C, bimetallic
Separate thermostat. 220(250) V AC. Bimetallic sensor with type, heating function. electrical connection with 4 terminals 2.5 mm2. mounting type on 35 mm DIN rail, cross rails, on mounting panel.
Used to connect both fans (coolers/air conditioners) and heating devices - heaters, panel heaters, heated floors, heating cables, heat fans.
Characteristics |
PTHVT |
Contact type |
NC+NO |
Setting range |
0-60 / 0-60 °C |
Potentiometer color |
Red / blue |
250 V AC / 120 V AC |
10 (2) 15 (2) A |
Sensor type |
Bimetallic |
Contact type |
Closing action |
Service life |
> 100,000 |
Electrical connection |
4-pole terminal, screw terminals |
Plastic material |
UL94 V0 ABS flame retardant |
Degree of protection |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 /+80°C |
Installation |
DIN rail 35 mm |
Dimensions HxWxD |
65x59x42 mm |
Weight |
80 g |
