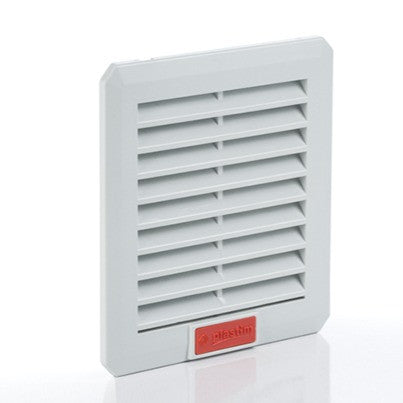

Grid with filter PFI1000, Plastim
Used to bring outside air into electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations or to exhaust heated air for cooling. They are usually installed in the side walls of boxes (plastic and metal) to maintain IP.
- External dimensions: 120x120x20.5 mm.
- Installation dimensions: 92x92 mm
- Operating temperature: -10/+70 °C
- Protection degree: IP54
- Plastic material: UL94 V0 ABS flame retardant
- Gasket: self-adhesive
- Color: RAL 7035 (RAL 7032 on request)
- Weight: 0.10 kg
- Installation: quick-attach
Can be used with PTF1000 / PTF1000T products or other fans.
The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
