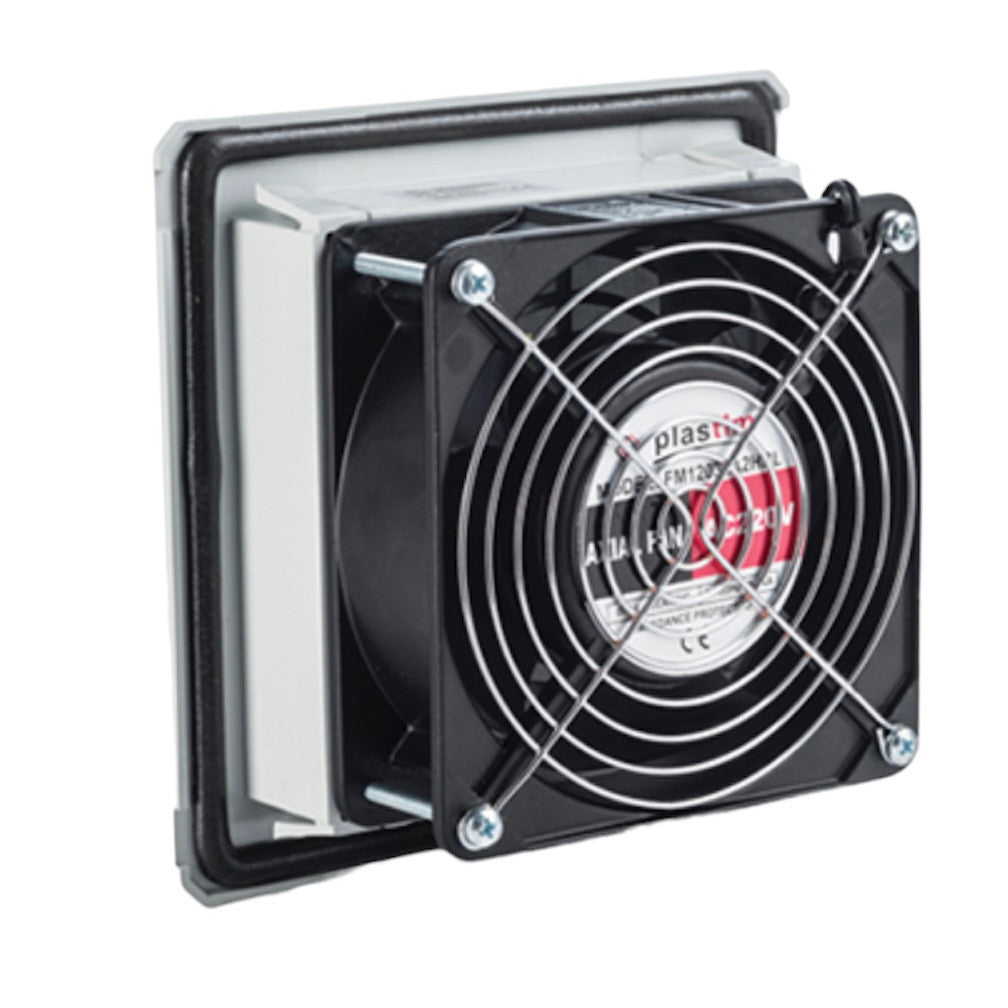

Ventilation grille with fan and filter, size 160x160 mm, for installation in an electrical panel, automation cabinet, ATM or gaming terminal. PTF1500T, manufacturer Plastim (Turkey)
Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of boxes to maintain IP.
- External dimensions: 160x160x69 mm
- Installation dimensions: 125x125 mm
- Volume flow rate: 100 (140) m3/h
- Noise level: 42 (46) dB(A)
- Bearing: ball bearing
- Operating voltage: 220-230 V AC, 50/60 Hz
- Current consumption: 0.14 (0.13) A
- Rated power: 26 (23) W
- Electrical connection: 3-pole 2.5 mm2 terminal
- Flow direction: Outside to inside (can be changed)
- Operating temperature: -10/+70 °C
- Protection degree: IP54
- Plastic material: UL94 V0 ABS Fireproof
- Seal: polyurethane seal
- Color: RAL 7035 (RAL 7032 on request)
- Weight: 0.68 kg
- Installation: quick attachment
To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller; both devices can be purchased on our website.
