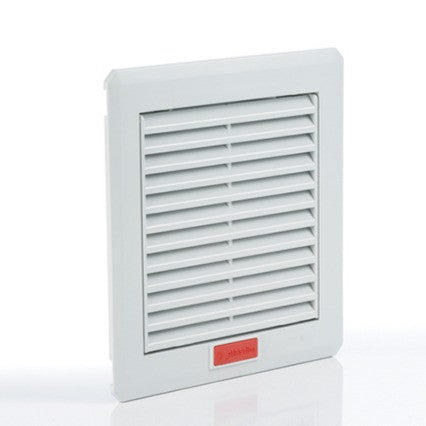

Grille with filter PFI1500, Plastim
Used to bring outside air into electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations or to cool heated air from them. They are usually installed in the side walls of boxes (plastic and metal) to maintain IP.
- External dimensions: 160x160x31 mm mm mm
- Installation dimensions: 125x125 mm
- Operating temperature: -10/+70 °C
- Protection degree: IP54
- Plastic material: UL94 V0 ABS flame retardant
- Sealing: polyurethane gasket
- Color: RAL 7035 (RAL 7032 on request )
- Weight: 0.18 kg
- Installation: quick attachment
The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
Can be used with PTF1500 / PTF1500T products or other fans.
