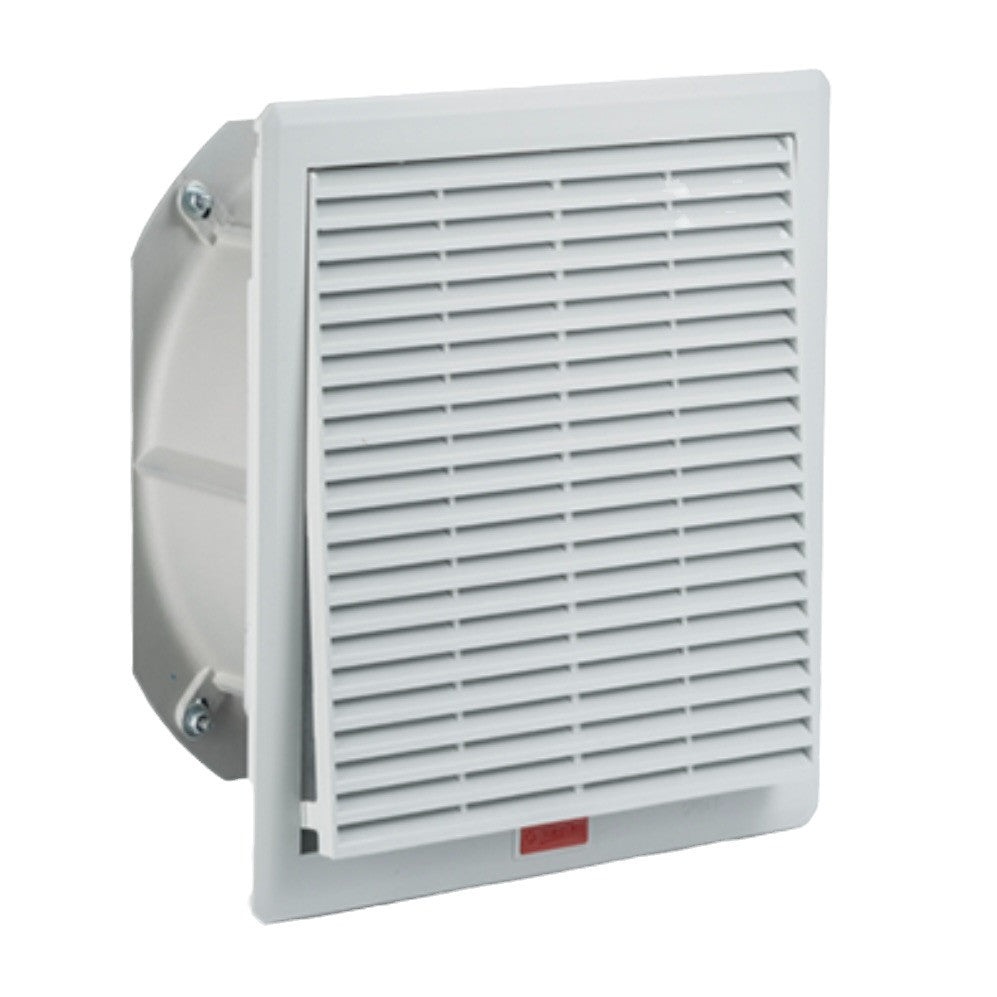

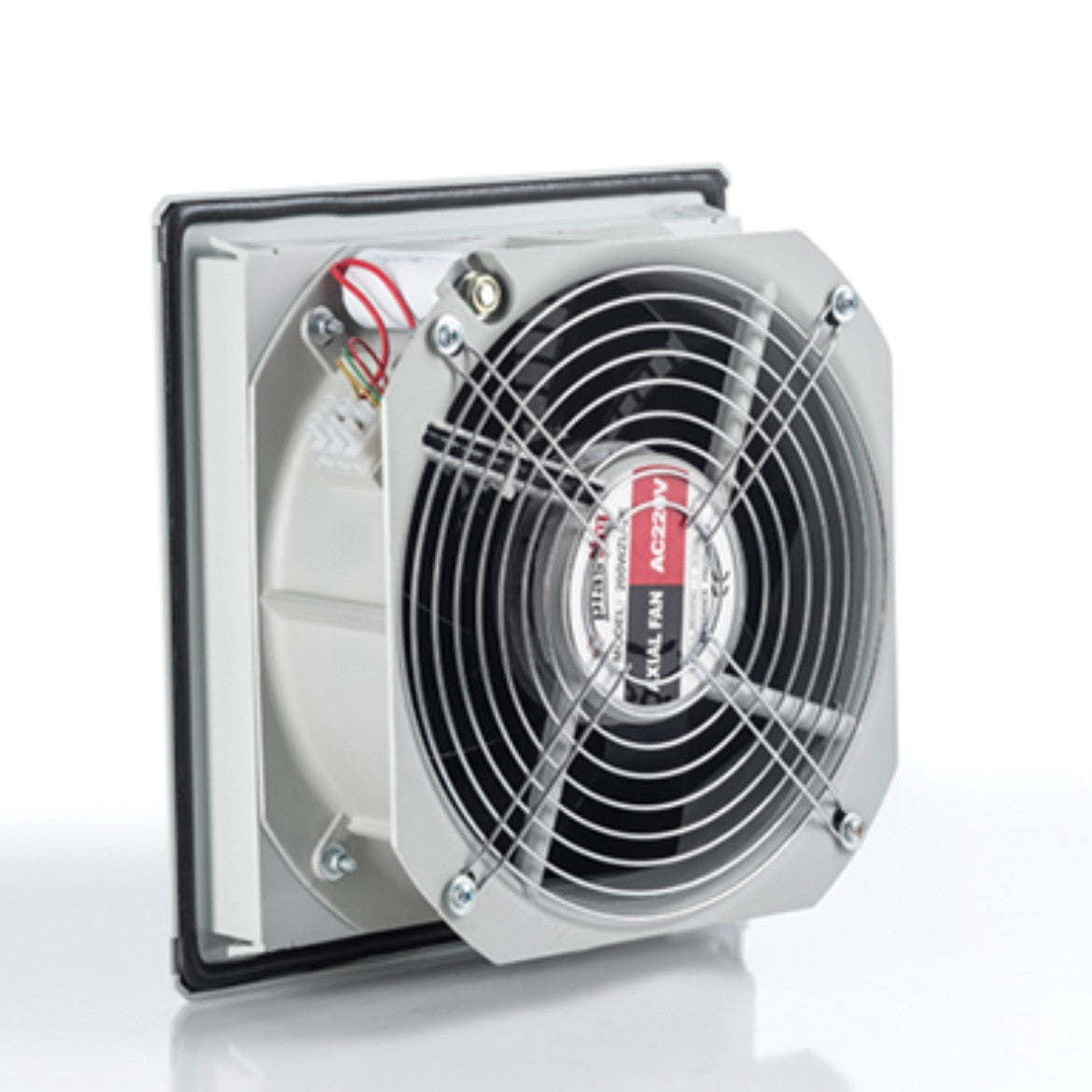

Ventilation grille with fan and filter, size 260x260 mm, for installation in an electrical panel, automation cabinet, ATM or gaming terminal. PTF4500, manufacturer Plastim (Turkey)

Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of boxes to maintain IP.

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.

External dimensions: 260x260x111 mm.
Installation dimensions: 223x223 mm
Volume flow rate: 650 (900) m3/h
Noise level: 60 (63) dB(A)
Bearing: ball bearing
Operating voltage: 220-230 V AC, 50/60 Hz
Current consumption: 0.5 (0.38) A
Rated power: 75 (66) W
Electrical connection: 4-pole terminal
Flow direction: Outside to inside (can be changed)
Operating temperature: -10/+70 °C
Protection degree: IP54
Plastic material: UL94 V0 ABS Fireproof
Seal: polyurethane seal
Color: RAL 7035 (RAL 7032 on request)
Weight: 2.84 kg
Installation: quick attachment

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller; both devices can be purchased on our website.
