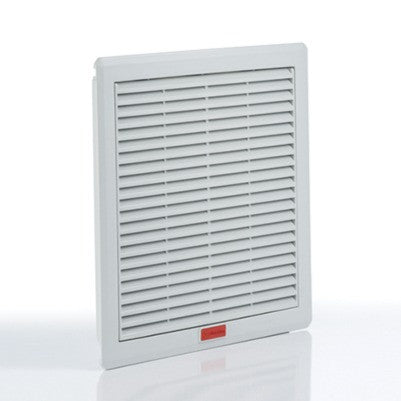

Grille with filter PFI2500, Plastim
Used to bring outside air into electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations or to exhaust heated air for cooling. They are usually installed in the side walls of boxes (plastic and metal) to maintain IP.
The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
- External dimensions: 260x260x31 mm.
- Installation dimensions: 223x223 mm
- Operating temperature: -10/+70 °C
- Protection degree: IP54
- Plastic material: UL94 V0 ABS flame retardant
- Sealing: polyurethane gasket
- Color: RAL 7035 (RAL 7032 on request)
- Weight: 0.48 kg
- Installation: quick attachment
Can be used with PTF2500, PTF3500, PTF4500 or other fan products.
The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
