Plastim

Fan with filter, 100 (140) m3/h, 160x160, 230V 50/60Hz IP54 PTF1500 Plastim

In stock - 150 items available
SKU: PTF1500
€35,64 with VAT

Online payment by card - after completing the order you will be redirected to the payment gateway, confirmation of payment will be sent to your email

Cash on delivery - payment according to the payment terms, which you will pay to the driver of the transport company

By bank transfer - you will receive an advance invoice to your email no later than the next business day, in which you will find the account number, which you will enter during payment.

On account - this payment option is used by partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

No fees are charged for returning goods.

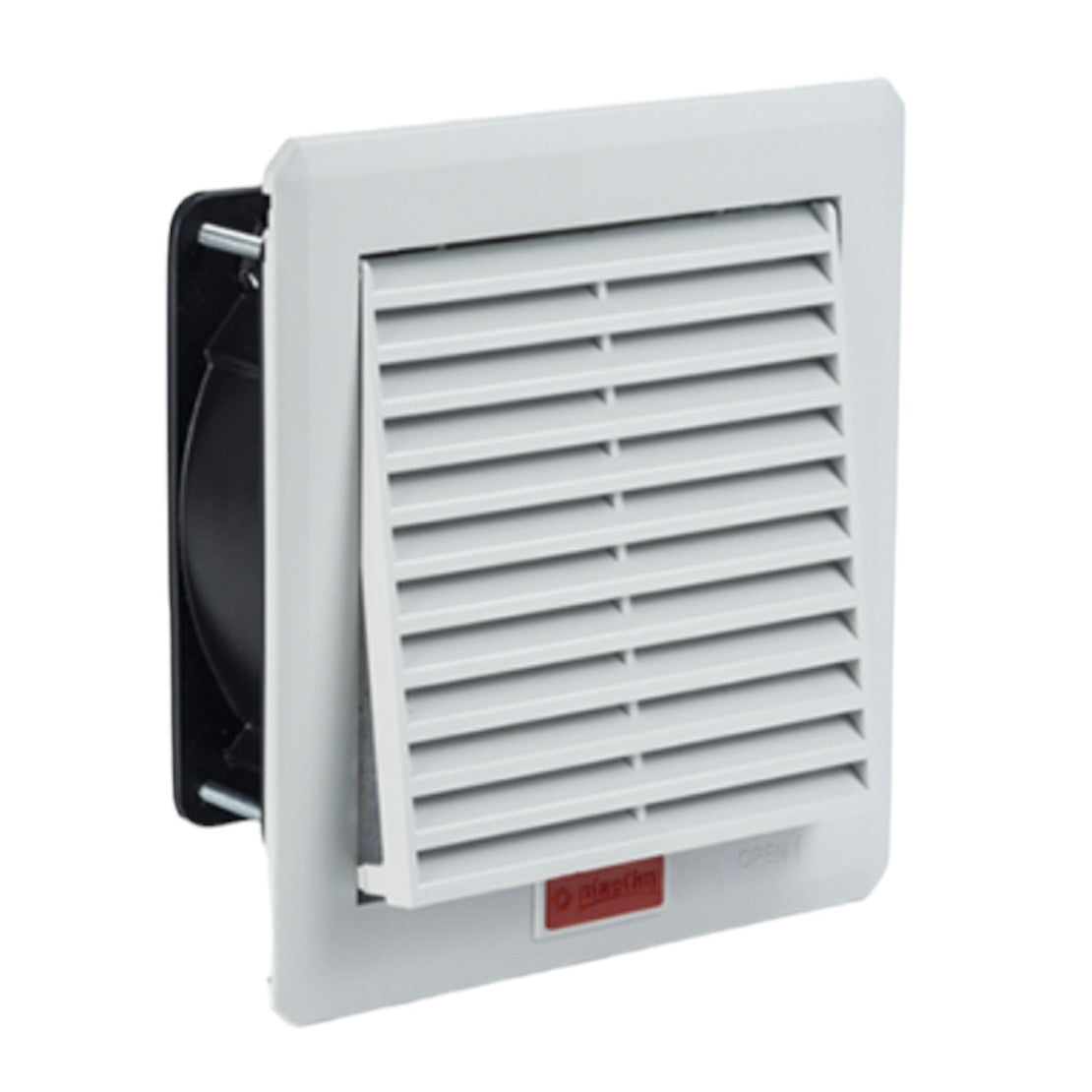

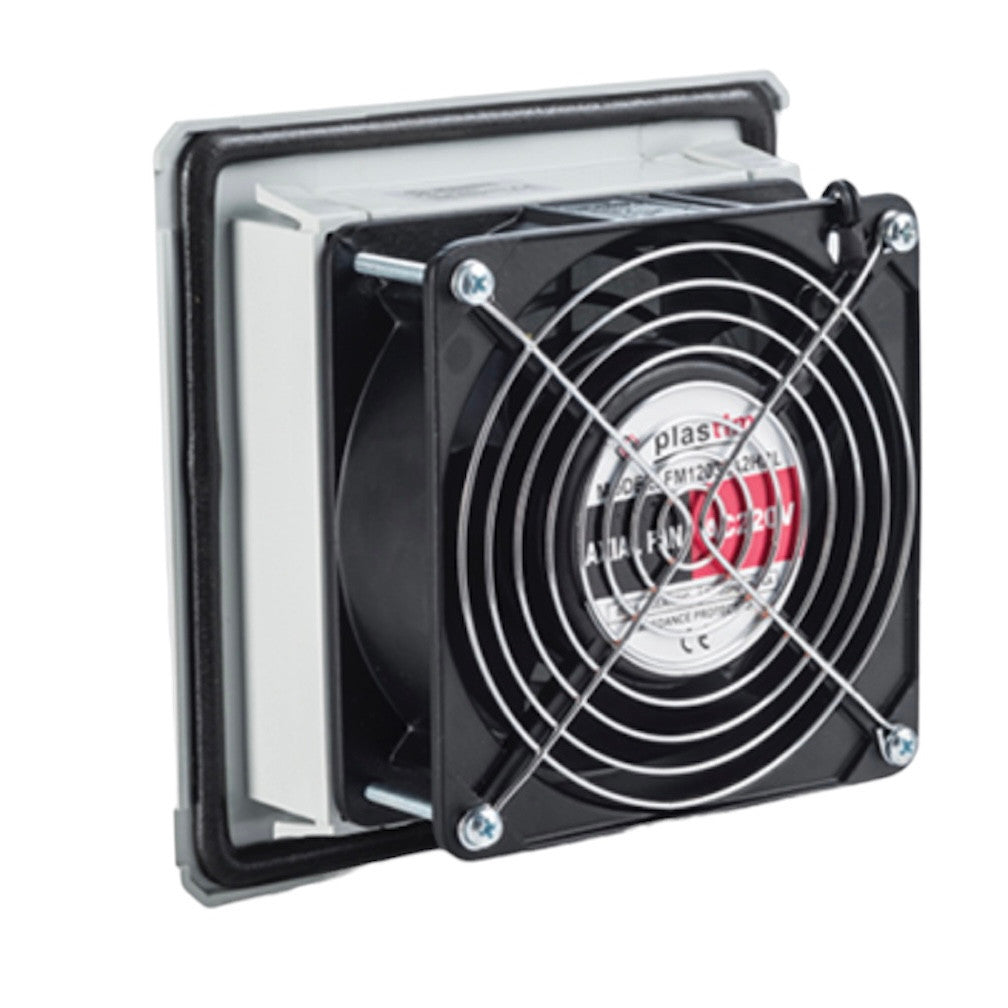

Ventilation grille with fan and filter, size 160x160 mm, for installation in an electrical panel, automation cabinet, ATM or gaming terminal. PTF1500, manufacturer Plastim (Turkey)

Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of boxes to maintain IP.

  • External dimensions: 160x160x69 mm
  • Installation dimensions: 125x125 mm
  • Volume flow rate: 100 (140) m3/h
  • Noise level: 42 (46) dB(A)
  • Bearing: ball bearing
  • Operating voltage: 220-230 V AC, 50/60 Hz
  • Current consumption: 0.14 (0.13) A
  • Rated power: 26 (23) W
  • Electrical connection: wire
  • Flow direction: Outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection degree: IP54
  • Plastic material: UL94 V0 ABS Fireproof
  • Seal: polyurethane seal
  • Color: RAL 7035 (RAL 7032 on request)
  • Weight: 0.68 kg
  • Installation: quick attachment

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller; both devices can be purchased on our website.
