Fan with filter, 125 (175) m3/h, 210x210, 230V 50/60Hz IP54 PTF2000 Plastim

Barcode: PTF2000

Regular price: €63,96 €52,86 excl. VAT
Regular price
Sale price: €63,96 €52,86 excl. VAT
Unit price: per

22 in stock

All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.

Product variants

Description
Instructions
Payment methods
Warranty

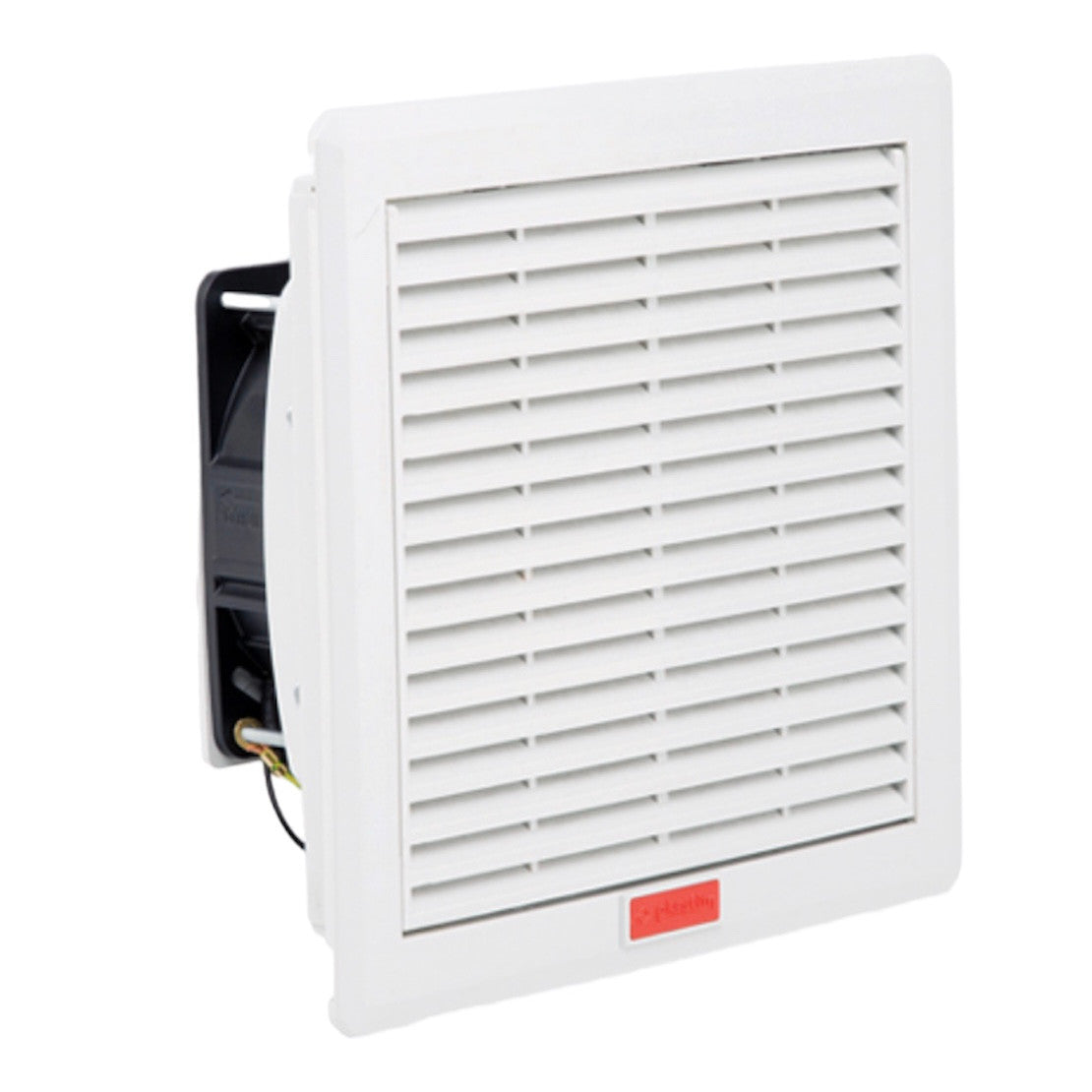

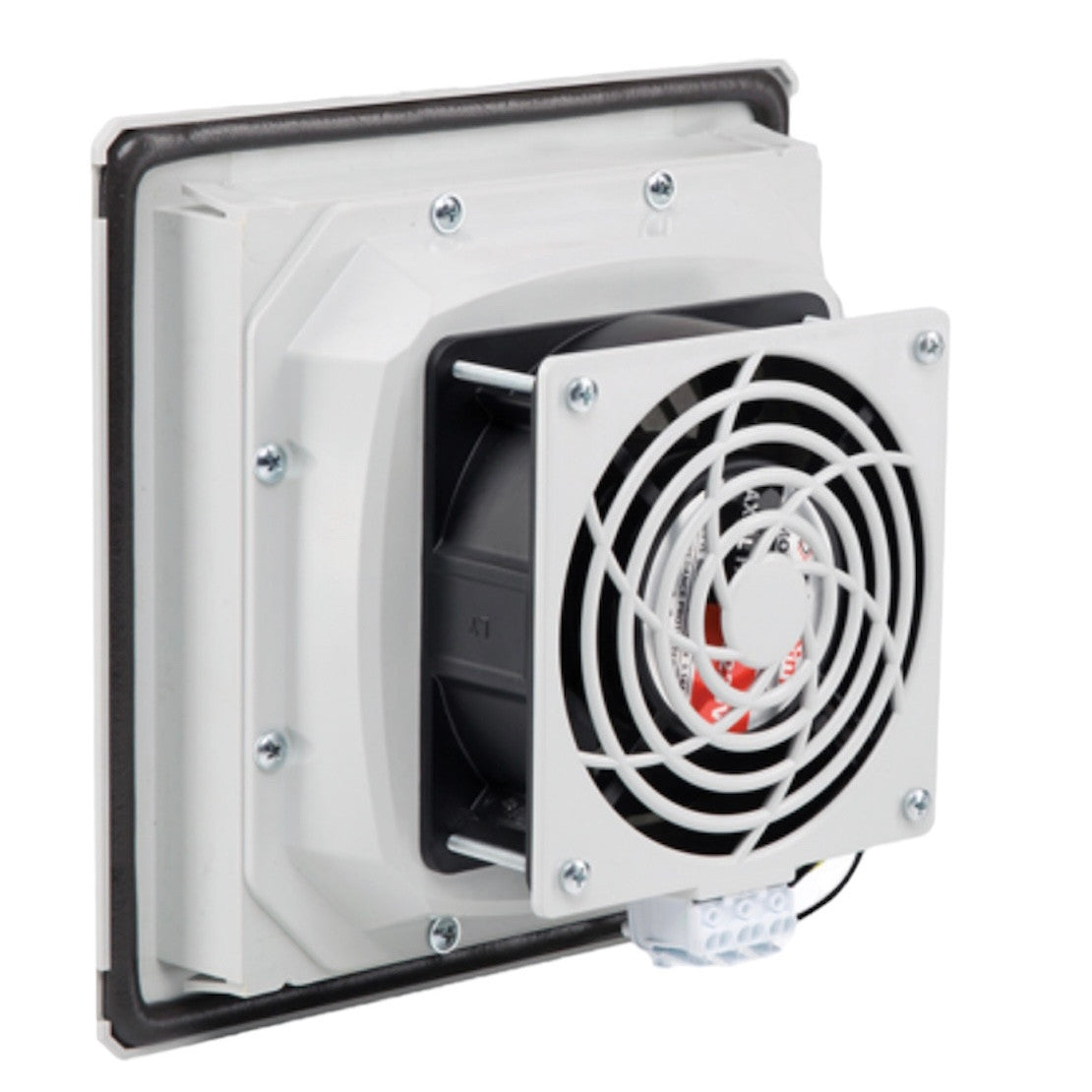

Ventilation grille with fan and filter, size 210x210 mm, for installation in an electrical panel, automation cabinet, ATM or gaming terminal. PTF2000, manufacturer Plastim (Turkey)

Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of boxes to maintain IP.

External dimensions: 210x210x98 mm
Installation dimensions: 175x175 mm
Volume flow rate: 125 (175) m3/h
Noise level: 42 (46) dB(A)
Bearing: ball bearing
Operating voltage: 220-230 V AC, 50/60 Hz
Current consumption: 0.14 (0.13) A
Rated power: 26 (23) W
Electrical connection: 3-pole terminal
Flow direction: Outside to inside (can be changed)
Operating temperature: -10/+70 °C
Protection degree: IP54
Plastic material: UL94 V0 ABS Fireproof
Seal: polyurethane seal
Color: RAL 7035 (RAL 7032 on request)
Weight: 1.05 kg
Installation: quick attachment

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller; both devices can be purchased on our website.
