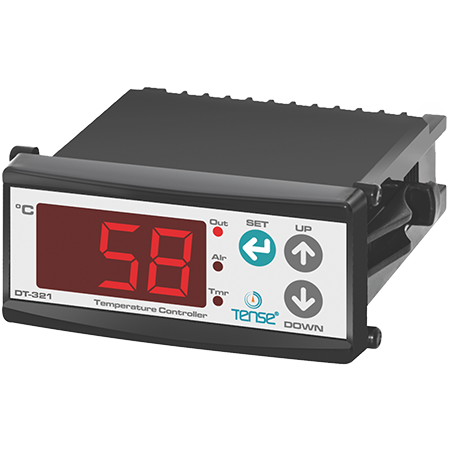

Thermostat / 2-point temperature controller DT-321 - TENSE (Turkey)

Description:
2-point thermostat with external sensor for panel mounting in ON-OFF mode. Designed for controlling and monitoring heat processes in heating, air conditioning, ventilation systems, building automation, and industrial applications.

Key features

• Sensor type: NTC (external sensor)

• Outputs: relay OUT and ALARM (NO+NC), 250 VAC, 2A.

• Additional function: heating/cooling

• Adjustable hysteresis for SET and ALARM settings

• OUT output turn-on delay for cooling mode

• Adjustable ON/OFF timers in case of sensor failure

• Upper and lower limits for SET and ALARM settings

• EEPROM memory for saving settings

• Password protection against unauthorized parameter changes

• High measurement accuracy

Technical parameters

• Measurement range: -30 ºC ... +150 ºC

• Resolution/step: 1 ºC

• Power supply and operation: panel mount format

• Relay outputs: 250 VAC / 2 A

Applications:

• Temperature control in industrial equipment, air conditioning and heating systems

• Temperature process monitoring

• Equipment protection and process automation

• Can be used with three types of sensors available in the e-shop
