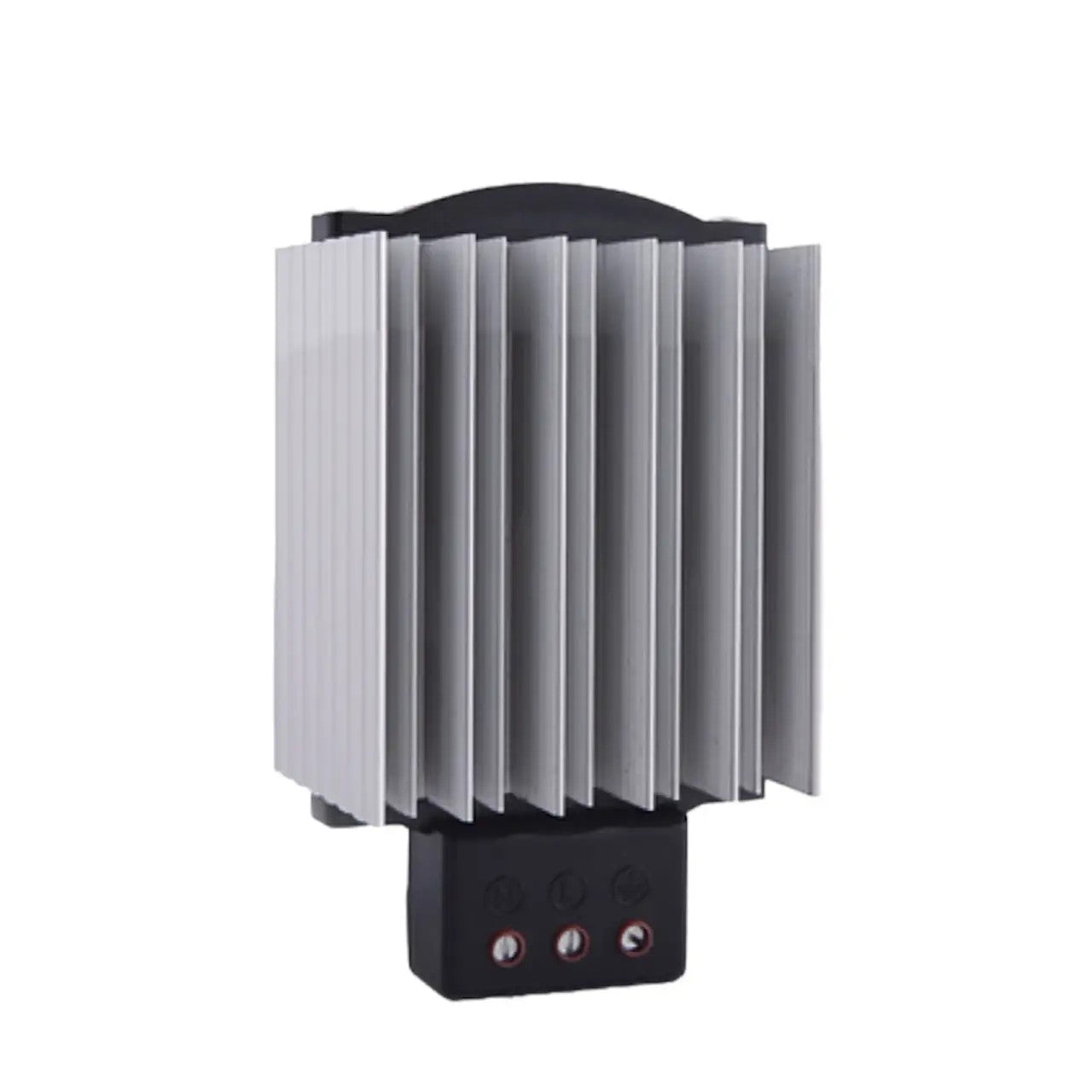

Switchboard heater PTC 30W, PHT030, Plastim

Electric (PTC body heater, post-voltage heater) cabinet heater with anodized aluminum radiator and overload protection, for DIN rail mounting, 30 W, 110-220 V AC or DC, PHT030, Plastim - made in Turkey.

• Heating power: 30 W
• Operating voltage: 100-250 V AC/DC
• Maximum current: 2A
• Self-regulating PTC resistor
• Overload protection: electronic thermal overload relay
• Electrical connection: 3-pole N-L-E terminal
• IEC protection class: Class II
• Protection degree: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat conductor: aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Installation position: Maximum efficiency in vertical position

• External dimensions: 128x70x59 mm

• Weight: 0.41 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. In the past, incandescent bulbs were used for these purposes – however, it is clear that this method does not meet modern stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating but also guarantee operational safety and longevity.

All heaters are equipped with electronic surface overheat protection, which provides an additional guarantee of safe operation.

Given the high demands on cabinet heaters, Plastim has paid the utmost attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric, and the electrical connection terminal block for all components is manufactured by the Italian company KORNER on special order. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odors and thus does not release any harmful carcinogenic substances into the atmosphere. You will agree that such an approach to supplier selection favorably distinguishes high-quality Plastim heaters from cheap Chinese analogues.

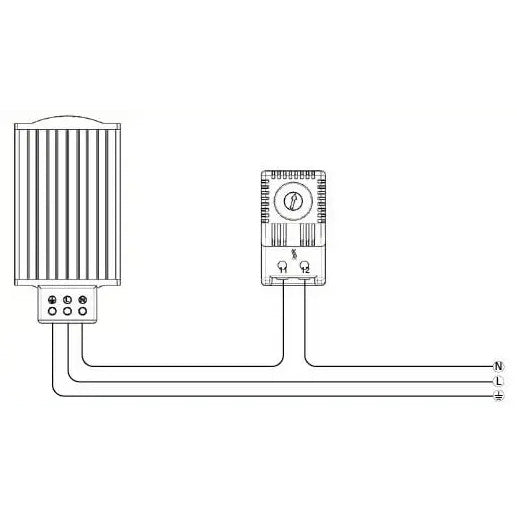

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex thermostat. Both devices can be purchased on our website:
