Bimetallic thermostat 0-60C NC, PTHT, Plastim
- Regular price
- €9,24
- Regular price
-
- Sale price
- €9,24
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

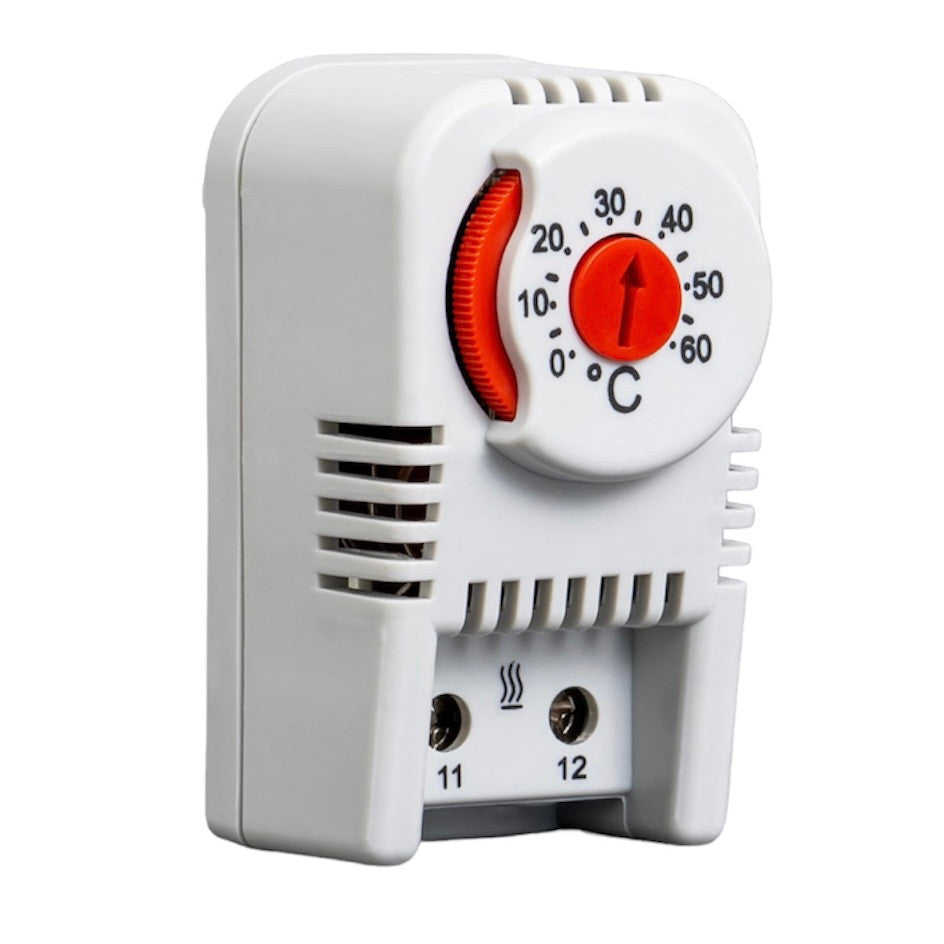

Thermostat for heating regulation. Adjustable temperature 0-60°C. On DIN rail. 1xNC, Plastim bimetallic thermostats.
Simple thermostat. 220(250) V AC. Bimetallic sensor with type, heating function. electrical connection with 2 terminals 2.5 mm2. mounting type on 35 mm DIN rail, cross rails, on mounting panel.
Used to connect heating elements - radiators, panel heaters, heated floors, heating cables, heat fans.
Characteristics |
PTHT |
Contact type |
NC |
Setting range |
0-60°C |
Potentiometer color |
Red |
250 V AC / 120 V AC |
10 (2) A |
Sensor type |
Bimetallic |
Contact type |
Closing action |
Service life |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Plastic material |
UL94 V0 ABS flame retardant |
Degree of protection |
IP20 |
| Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 /+80°C |
Installation |
DIN rail 35 mm |

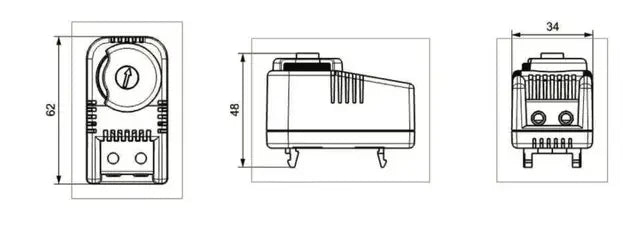

Dimensions HxWxD |
61x34x38 mm |
Weight |
45g |
