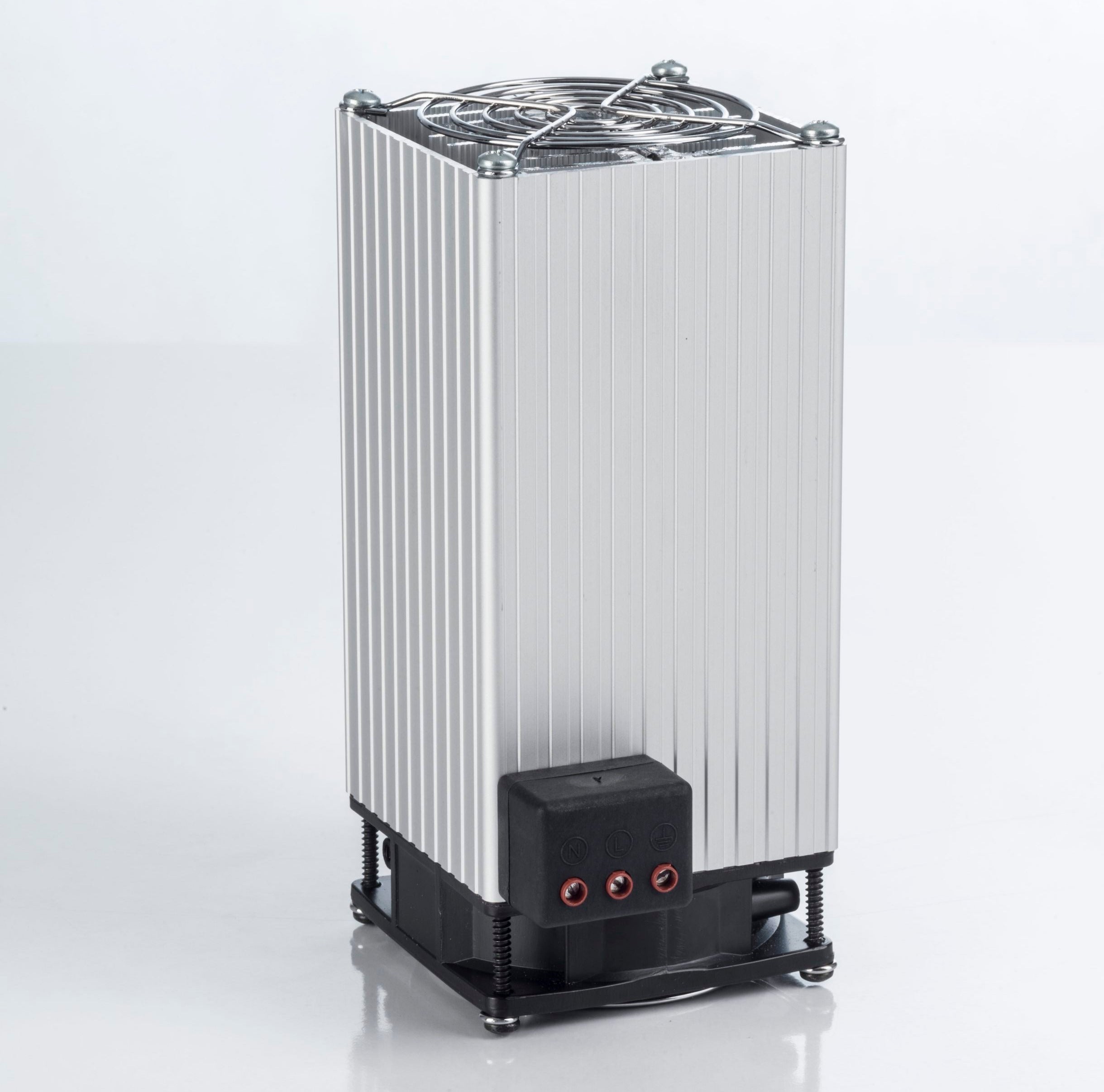

Resistive switchboard heater with fan 500W, PFHT500, PLASTIM

Electric (resistance heater, after heater) switchboard heater with fan, with anodized aluminum radiator and overload protection, for DIN rail mounting, 250 W, 220/230 V AC, PFHT250, Plastim - made in Turkey.

• Heating power: 500 W

• Operating voltage: 220/230 V AC, 50/60 Hz

• Maximum current: 2.4 A

• Resistance heater type.

• Axial fan: 80x80x25mm 35m3/h

• Overload protection: electronic thermal overload relay

• Electrical connection: 3-pole NLE terminal

• IEC Protection Class: Class II

• Protection degree: IP20

• Operating temperature: -25 / +70 °C

• Storage temperature: -25 / +70 °C

• Heat pipe: aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Installation position: 35 DIN 35 mm: Highest efficiency in vertical position

• External dimensions: 182x80x110 mm

• Weight: 1.2 kg

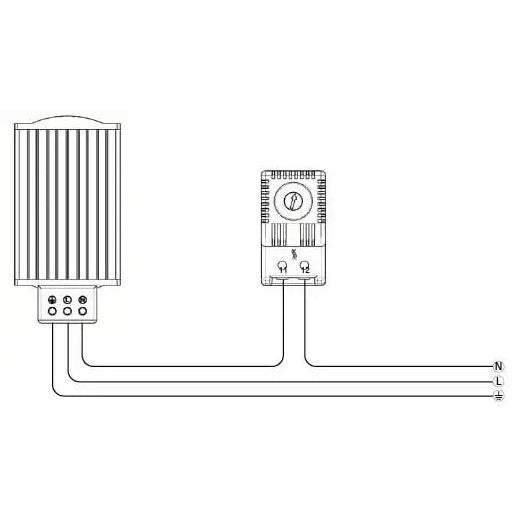

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website.
