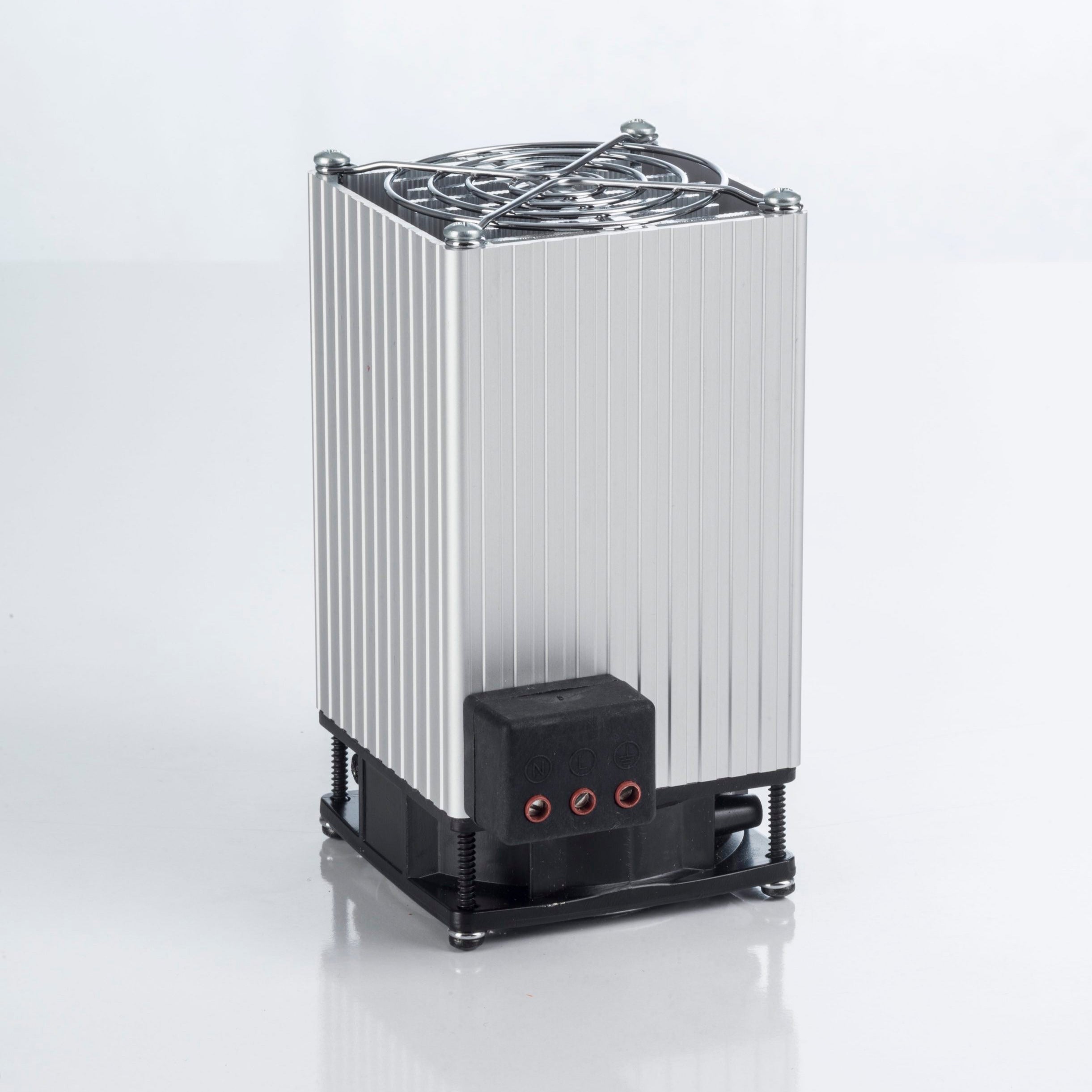

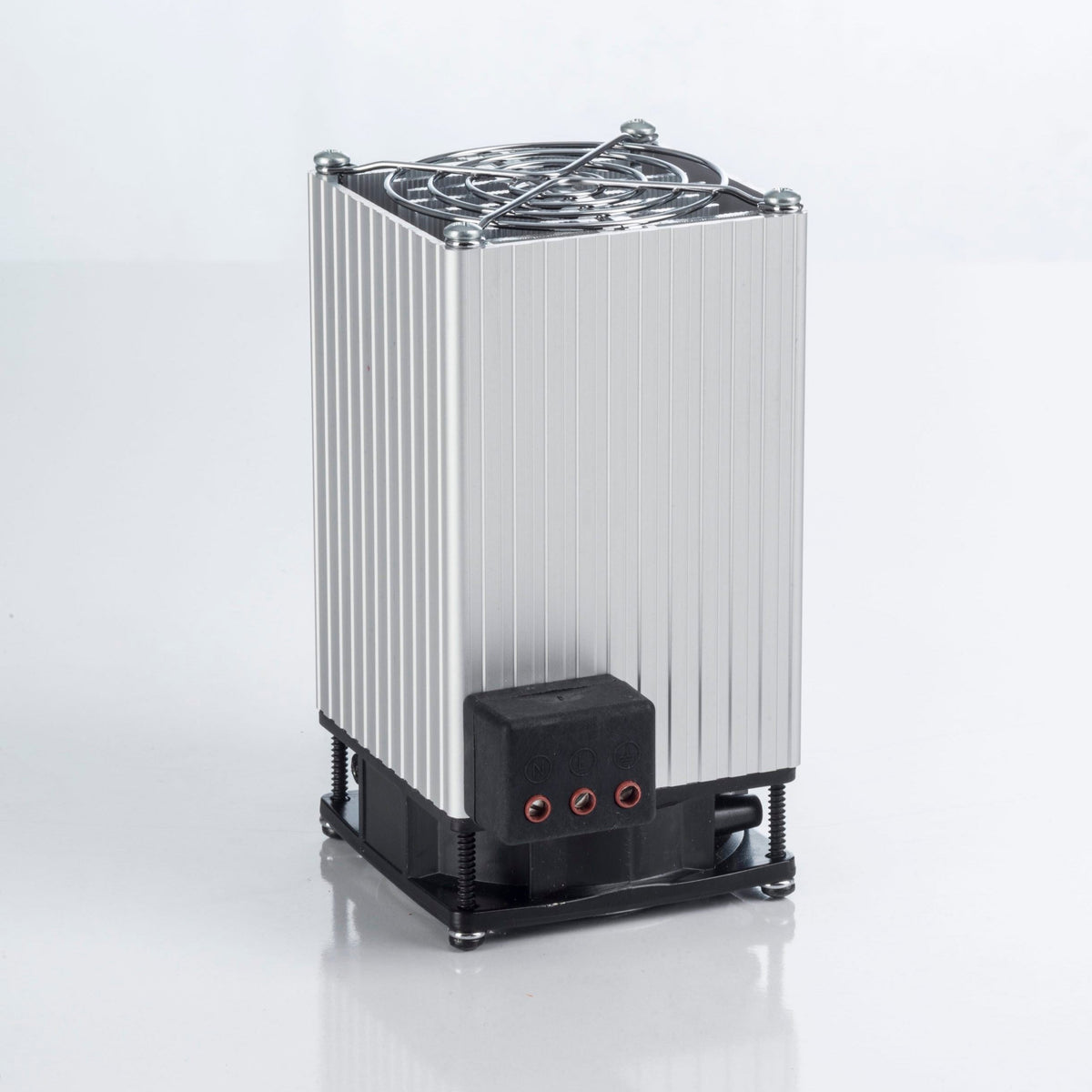

Resistive switchboard heater with fan 250W, PFHT250, PLASTIM

Electric (resistance heater, after heater) cabinet heater with fan, with anodized aluminum radiator and overload protection, for DIN rail mounting, 250 W, 220/230 V AC, PFHT250, Plastim - made in Turkey.

• Heating power: 250 W

• Operating voltage: 220/230 V AC, 50/60 Hz

• Maximum current: 1.2 A

• Resistance heater

• Axial fan: 80x80x25mm 35m3/h

• Overload protection: electronic thermal overload relay

• Electrical connection: 3-pole N-L-E terminal

• IEC protection class: Class II

• Degree of protection: IP20

• Operating temperature: -25 / +70 °C

• Storage temperature: -25 / +70 °C

• Heat conductor: aluminum profile, anodized

• Mounting: 35 mm DIN rails

• Installation position: 35 DIN 35 mm: Highest efficiency in vertical position

• External dimensions: 152x80x110 mm

• Weight: 0.98 kg

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more sophisticated temperature controller. Both devices can be purchased on our website.<a href="</p><p></p><p><a href="https://www.pelek.cz/product-pageregul-tory-teploty-a-senzory" target="_blank"></a></p> <p> </p> </p
