Resistance heater with fan 750W, PFHT750, PLASTIM

Barcode: PFHT750
€148,36
€148,36
excl. VAT: €123
27 in stock
  • Description
  • Payment methods
  • Warranty

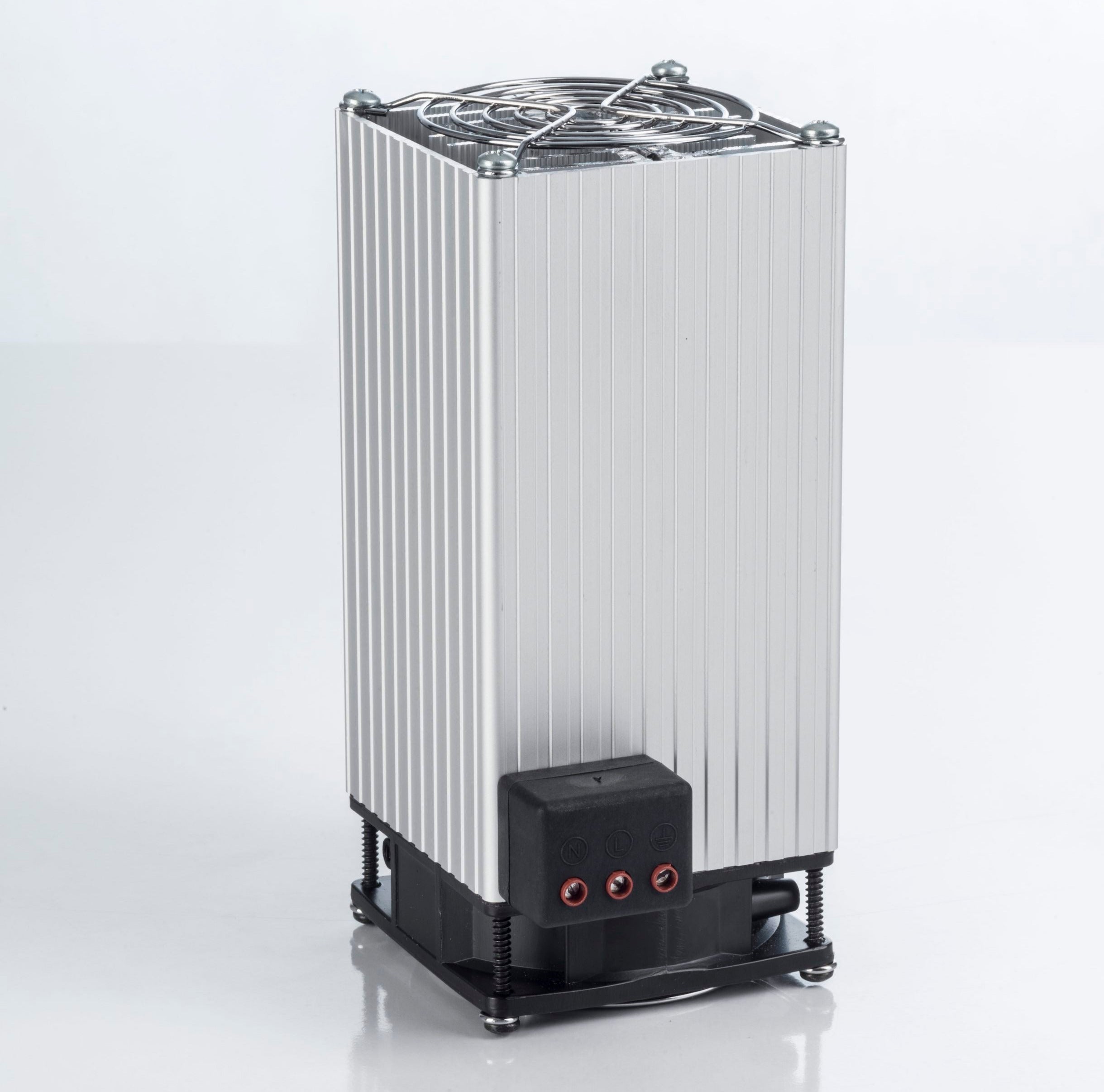

Electric (resistance heater, post-storage heater) switchboard heater with fan, with anodized aluminum radiator and overload protection, for installation on DIN rail, with power 750 W, 220/230 V AC, PFHT750, Plastim - made in Turkey.

  • Heating power: 750 W

  • Operating voltage: 220/230 V AC, 50/60 Hz.

  • Maximum current: 3.6 A

  • Resistance heater type.

  • Axial fan: 80x80x25mm 35m3/h

  • Overload protection: electronic thermal overload relay.

  • Electrical connection: 3-pole NLE terminal

  • IEC Protection Class: Class II

  • Protection degree: IP20

  • Operating temperature: -25 / +70 °C

  • Storage temperature: -25 / +70 °C

  • Heat pipe: aluminum profile, anodized

  • Mounting: 35 mm DIN rail

  • Installation position: 35 DIN 35 mm: Highest efficiency in vertical position

  • External dimensions: 232x80x110 mm

  • Weight: 1.45 kg

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more sophisticated temperature controller. Both devices can be purchased on our website:

The electrical equipment we supply meets high quality standards, comes with a 24-month warranty, and complies with all EU requirements.
In case of claims, returns are free of charge.
