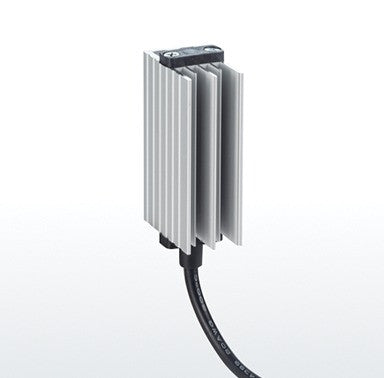

Mini switchboard heater PTC 15W, MPHT15, Plastim

Mini electric (PTC body heater, post-tension heater) switchboard heater with anodized aluminum radiator and overload protection, for DIN rail mounting, 15 watts, 110-220 volts AC or DC, MPHT15, Plastim - made in Turkey.

• Heating power: 15 W

• Operating voltage: 100-250 V AC/DC

• Maximum current: 2A

• Heating element type: self-regulating PTC resistor.

• Overload protection: electronic thermal overload relay

• Electrical connection: 30 cm wire, NLE

• IEC Protection Class: Class II

• Protection degree: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat pipe: aluminum profile, anodized

• Installation: 35 mm DIN rail

• Installation position: 35 DIN 35 mm: Highest efficiency in vertical position

• External dimensions: 60x50x27 mm

• Weight: 0.11 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes, but it is clear that this method does not meet the modern stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating, but also guarantee operational safety and durability.

All heaters are equipped with electronic surface overheating protection, which provides an additional guarantee of safe operation.

Given the high demands placed on cabinet heaters, Plastim has paid the utmost attention to the selection of component suppliers. For example, the supplier of PTC heaters is Schneider Electric.

I agree that this approach to choosing suppliers favorably distinguishes Plastim's high-quality heaters from cheap Chinese analogues.

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more sophisticated temperature controller. Both devices can be purchased on our website.
