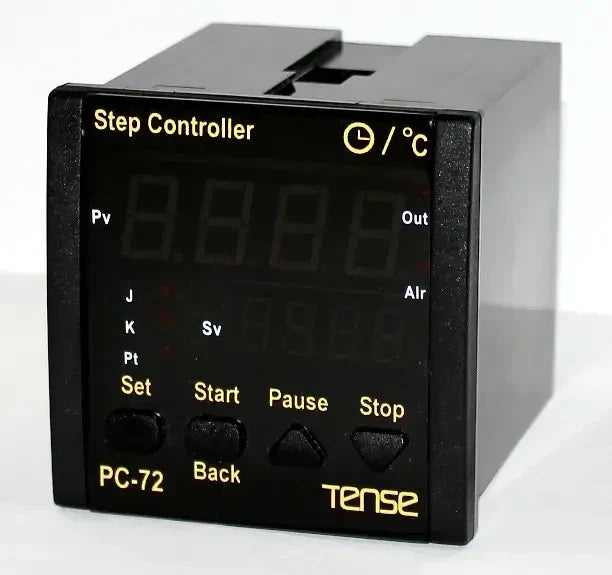

TENSE PID temperature controller for panel mounting

Product description

PID temperature controller for panel mounting, designed for industrial and processing equipment.

• Relay outputs (NO+NC)

• Measuring range: -100 °C ... +1750 °C

• Resolution: 0.1 °C

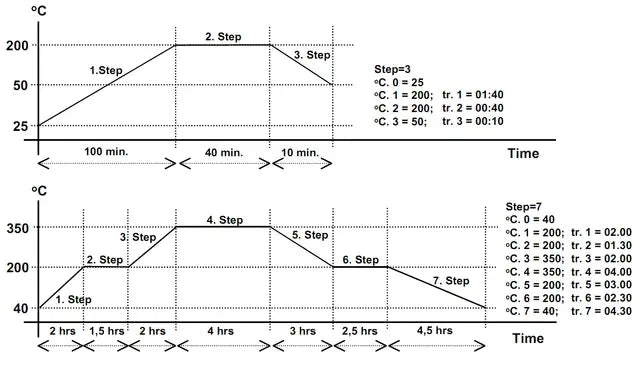

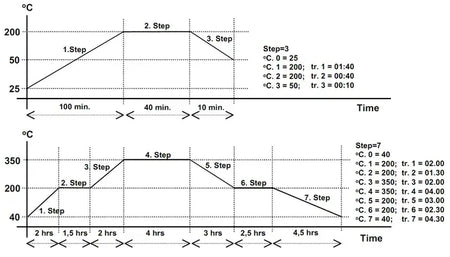

• Ability to set up to 20 temperature steps / heating steps.

The controller provides precise temperature control using PID or on/off mode. It offers self-optimization to minimize process value overshoot.

Key features

• Control: ON/OFF or PID

• Sensor type: T/C (J,K,T,S,R), Pt100.

• PID auto-tuning: prevents overshoot

• Anti-windup: protection against integral component accumulation

• OUT switch-on delay in cooling mode

• Parameter settings password protection

• Memory: non-volatile EEPROM

• Relay outputs: NO+NC, 250 VAC/2A

• Programming: 20 heating steps, each step up to 18 hours

• Indication: current temperature, setpoint, step, and time are displayed simultaneously.

• Control: START / STOP / PAUSE / SET buttons

Use

• Temperature control in industrial furnaces and heating systems

• Automation of processing machines

• Control of air conditioning or ventilation processes

Recommended accessories

• Temperature sensors: J-type Fe-Const thermocouples (6/8 meters)

• Available cable lengths: 1m, 1.5m, 2m, 2.5m, 3m, 4m, 5m.

Advantages compared to cheap analogs

• Setting the limit temperature and time to reach the values for each step

• Precise PID control to minimize deviations.

• Clear panel with indication of current temperature, setpoint and heating steps

• Fast operation with START/STOP/PAUSE/SET buttons.
