GKM-11 - Single-phase overvoltage and undervoltage relay, TENSE

Product description

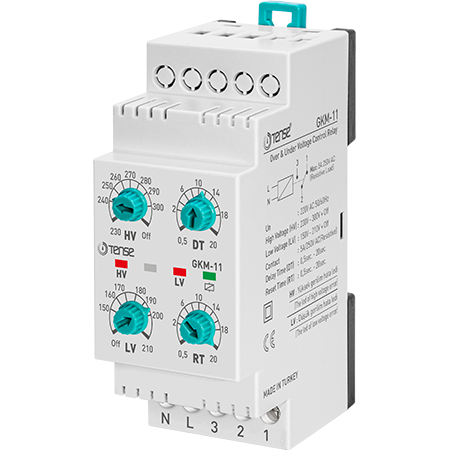

The GKM-11 relay is used to protect sensitive equipment against overvoltage and undervoltage in single-phase distribution systems. If the set upper or lower voltage limit is exceeded, the relay opens the output contact and disconnects the load, preventing damage to the equipment.

Function and operation

• Status indication:

  • Normal state - green LED

  • Overvoltage fault - red "HV" LED.

  • Undervoltage fault - red "LV" LED.

• Adjustable protection: upper and lower voltage limit, delay time (DT) and reset time (RT)

• Relay contact: 5 A / 250 V AC (resistive load)

Technical data

• Operating voltage: 220 V AC, 50/60 Hz

• Overvoltage range: 230-300 V

• Undervoltage range: 150-210 V

• Delay and reset time: 0.5-20 s

• Power consumption: <6 VA

• Operating temperature: -20 °C to +55 °C

• Installation: DIN rail

• Weight: 0.1 kg

• Maximum cable cross-section: 2.5 mm²

• Maximum installation height: 2000 m

Application:

• Single-phase distribution and switchgear

• Sensitive electrical equipment, household appliances, industrial equipment.
