Three-phase monitoring relay with PTC control phase failure/asymmetry/sequence

Three-phase relays for phase control with shutdown protection and winding temperature control, TENSE - FKV-14P

Product description

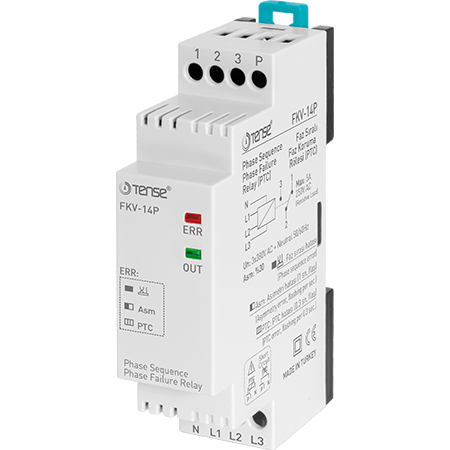

The FKV-14P three-phase phase control relay is designed to protect three-phase electric motors and equipment from critical malfunctions in the power grid. It provides comprehensive control of phase presence, phase failure, phase interference, asymmetry (fixed 40%), incorrect phase sequence, and excessive motor winding temperature. Equipped with a neutral conductor and designed for DIN rail mounting.

Key features

• Checks for the presence of all three phases

• Protection against phase failure

• Detection of phase interference (overload)

• Fixed voltage asymmetry control at 40%

• Protection against incorrect phase sequence

• Motor winding temperature control

• Optical status indication (LED OUT)

• Automatic restart when parameters return to the allowed range

Operating principle

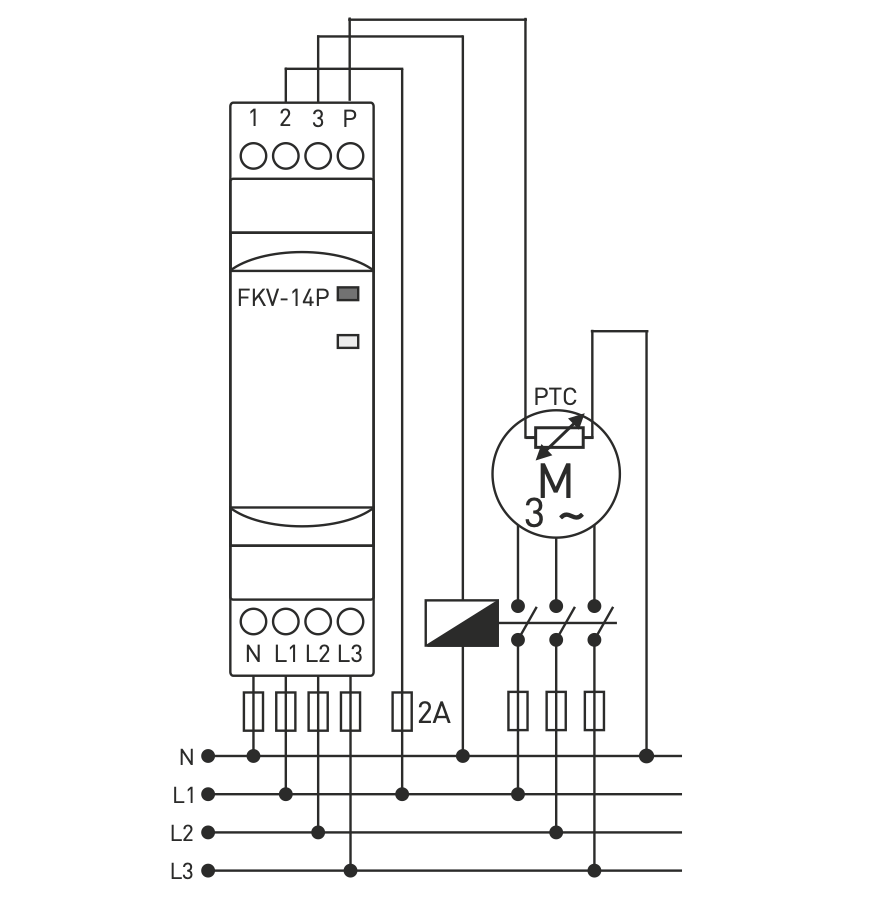

• Normal operation: if all three mains voltages are present, the phase sequence is correct, and the winding temperature does not exceed the permissible limits, the relay switches on (contacts 15-18 are closed) and the OUT LED lights up.

• Voltage fault or asymmetry: if the voltage of any phase differs by more than 40%, contacts 15-18 open and contacts 15-16 close; the OUT LED is off.

• Phase sequence fault: the relay reacts by opening the contacts and turning off the OUT LED.

• Winding temperature exceeded: the relay disconnects the output until the temperature returns to the permissible limits.

• Operation recovery: After the parameters normalize, the relay automatically returns to the operating state.

Technical specifications

• Device type: phase monitoring relay

• Number of phases: 3 + N

• Asymmetry: 40% (fixed)

• Winding temperature protection: Yes

• Output contacts: 15-18 (closed during operation), 15-16 (closed in case of fault)

• Indication: LED OUT

• Installation: DIN rail

• Manufacturer: TENSE (Turkey)

Advantages

• Comprehensive motor and electrical wiring protection

• Stable operation due to fixed 40% asymmetry

• Easy installation on DIN rail

• Automatic function recovery without operator intervention

• Reliable protection in harsh industrial conditions

Typical applications

• Three-phase electric motors

• Industrial pump systems

• Compressors

• Fans

• Machines sensitive to voltage sequence and quality
