Three-phase monitoring/protection relay for phase failure/overvoltage/asymmetry/surge control
- Regular price
- €20,47 €16,92 excl. VAT
- Regular price
-
- Sale price
- €20,47 €16,92 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty

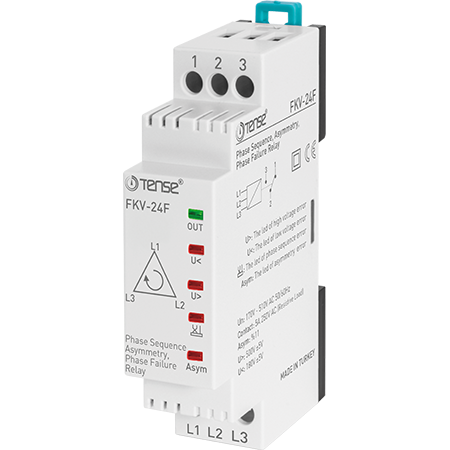

Phase protection relays - FKV-24F | TENSE
The FKV series phase protection relays are designed to protect three-phase equipment, especially motors, against damage due to incorrect voltage values, asymmetry, phase failures, or incorrect phase sequence. The FKV-24F operates in a wide 180-500 VAC range and has a fixed asymmetry of 11%.
It ensures reliable operation of equipment with high demands on power precision and protects them from thermal and mechanical damage.
Features and operating principle
Voltage asymmetry (11%)
-
Monitors the difference in phase voltages.
-
If asymmetry exceeds 11%, the relay switches off the output after approximately 1 s and opens the NO/COM contacts.
-
If the difference drops by 5 V, the relay evaluates the state as normal and resumes output operation after a delay period.
Phase sequence check
-
Correct phase sequence → OUT LED lights up, output is active (NO closed).
-
Incorrect phase sequence → LED turns off, and the output switches to a fault state.
High voltage protection (U>)
-
If the voltage exceeds 500 V, a high voltage indication is activated.
-
If the condition persists for more than 2 s, the relay disconnects the output.
-
When the voltage drops by 5 V below the U> limit, the relay starts a delayed countdown and then resumes operation.
Low voltage protection (U<)
-
If the voltage drops below 180 V, a low voltage indication is activated.
-
If the condition does not end during the error delay, the output switches off.
-
If the voltage rises by 5 V above U<, after a delay period, the relay reactivates the output.
Status indications
-
5 LEDs provide information about:
-
relay status (OUT)
-
high voltage (U>)
-
low voltage (U<)
-
phase sequence
-
asymmetry / error
-
Key functions
-
Wide operating voltage range: 180-500 VAC
-
Fixed asymmetry: 11%
-
Protection against:
-
Undervoltage
-
Overvoltage
-
asymmetry
-
phase sequence errors
-
phase failures
-
-
No neutral wire required
-
Fast reaction to fault conditions (approx. 1 s)
-
LED indication of all functions
-
Suitable for motors, compressors, pumps and other three-phase loads.
Technical parameters
| Parameter | Value |
|---|---|
| Operating voltage (Un) | 3 × 380 VAC |
| Operating range | 180-500 VAC |
| Operating frequency | 50/60 Hz |
| Operating power | < 4 VA |
| Asymmetry | 11% (fixed) |
| Low voltage U< | 180 V (fixed) |
| High voltage U> | 500 V (fixed) |
| Indication | 5× LEDs |
| Contact | 5 A / 250 VAC (resistive load) |
| Wire diameter | up to 2.5 mm² |
| Operating temperature | -20 °C to +55 °C |
| Weight | < 110 g |
| Installation | DIN rail |
| Protection degree | IP20 |
