Vendor: TENSE

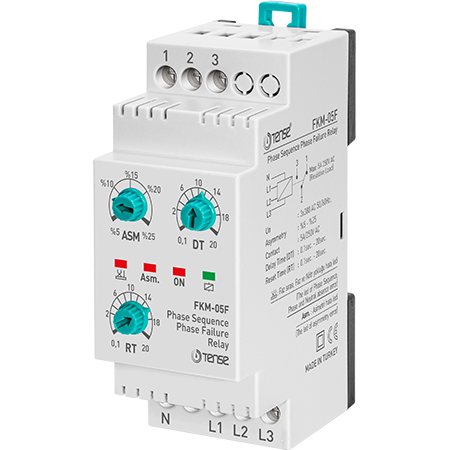

Three-phase monitoring/protection relays monitor phase/asymmetry/voltage disturbances

Barcode: FKM-05F
€25,80
€25,80
excl. VAT: €21
42 in stock
Luge stage: Yes
  • Description
  • Instructions
  • Payment methods
  • Warranty

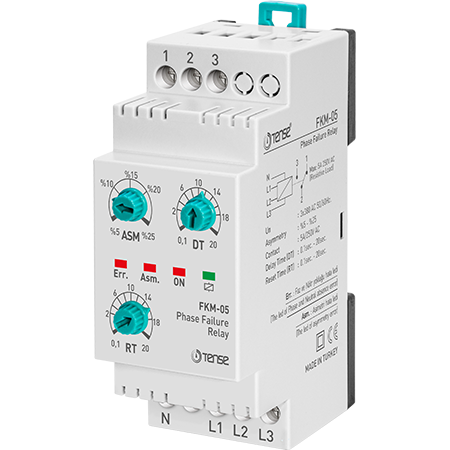

Three-phase monitoring/protection relay for sequence control, disconnection, phase asymmetry, overvoltage, undervoltage, neutral wire disconnection with timer. Protection monitoring relay FKM-05/05F (TENSE)

Phase protection relays are designed to protect three-phase loads from damage caused by line voltage.

  • Overvoltage: 300 V (fixed)
  • Undervoltage: 140 V (fixed)
  • Asymmetry: 5 % - 25 % (adjustable)

  • Timer: 0.1 s - 20 s (adjustable)

  • Protection against phase failures

  • Neutral phase failure protection

  • Phase sequence control (FKM-05F)

  • DIN rail mounting

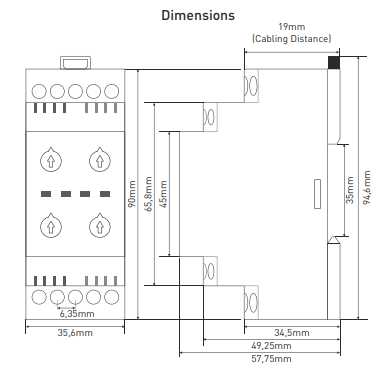

  • Width 35.6 mm


The electrical equipment we supply meets high quality standards, comes with a 24-month warranty, and complies with all EU requirements.
In case of claims, returns are free of charge.
