Three-phase voltage and current protection relay 1–63 A on DIN rail, GKE-63T
- Regular price
- €79,59 €65,78 excl. VAT
- Regular price
-
- Sale price
- €79,59 €65,78 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

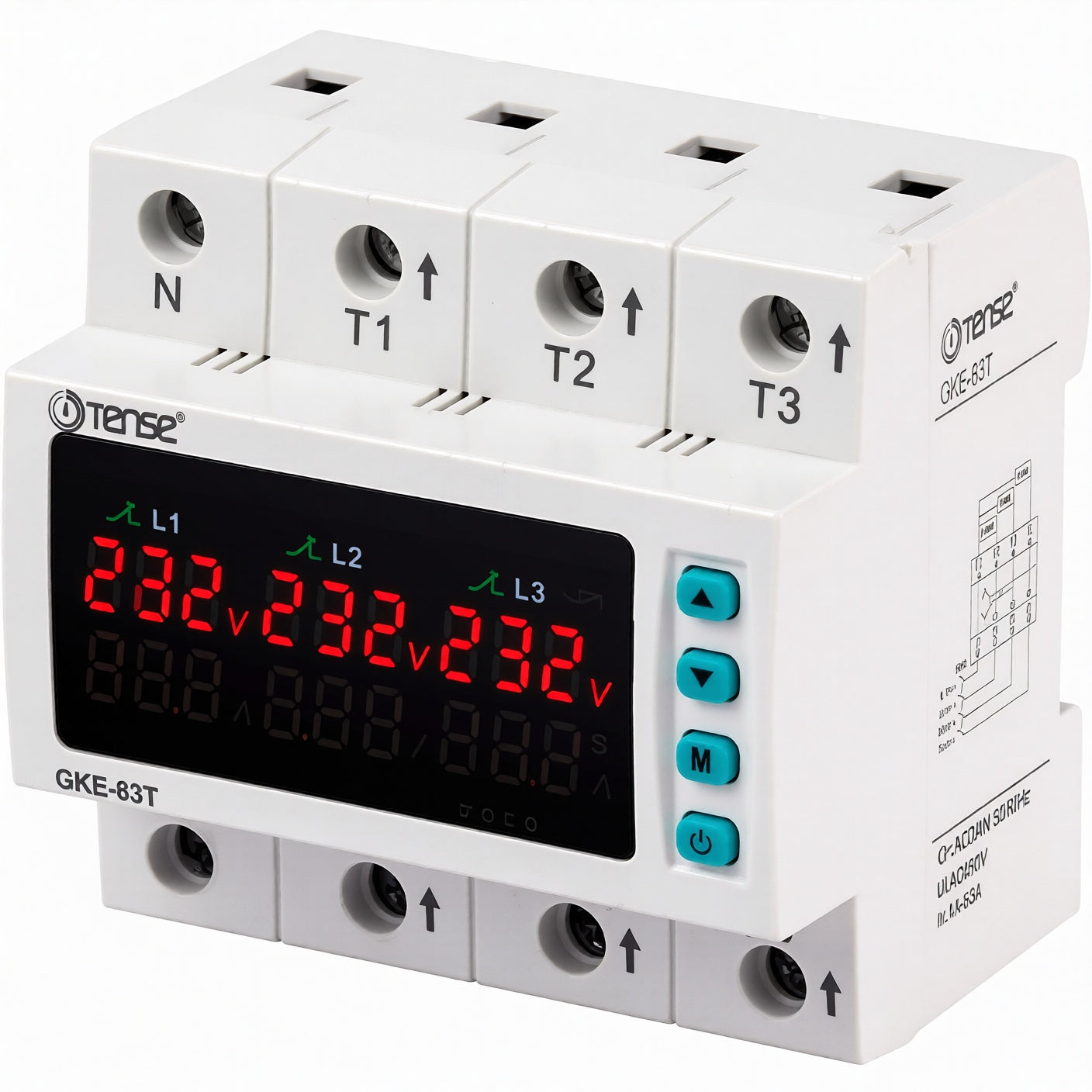

Three-phase voltage and current protection relay on DIN rail, Tense
The advanced Tense GKE-63T protection relay with integrated microprocessor is designed for comprehensive protection of electrical equipment and motors against adverse conditions in the distribution network. The device continuously monitors network parameters and provides highly accurate protection against overvoltage, undervoltage, current overload, voltage asymmetry, phase failure or mixing, and internal overheating. The relay is equipped with an automatic reset function with adjustable time delay and memory for recording the last fault state. The compact modular design is intended for easy installation on a standard 35 mm DIN rail.
Main operating modes
Synchronous mode: Three-phase operation – if a fault occurs in one phase, the entire three-phase circuit section is disconnected.
Asynchronous mode: independent operation – each phase is monitored and disconnected separately (suitable for single-phase loads distributed across three phases).
Technical parameters
Product type: Digital protection relay (voltage and current)
Number of phases: 3 (three-phase)
Rated current (adjustable): 1 – 63 A
Trip speed in case of short circuit: 0,04 s
Neutral wire (N) break protection: Yes
Mounting type: 35 mm DIN mounting rail
Setting ranges
Overvoltage protection: 220 – 300 V
Low voltage protection: 80 – 210 V
Voltage asymmetry: 20 – 99 V
Start-up delay: 1 – 300 s
Reset delay: 1 – 600 s
