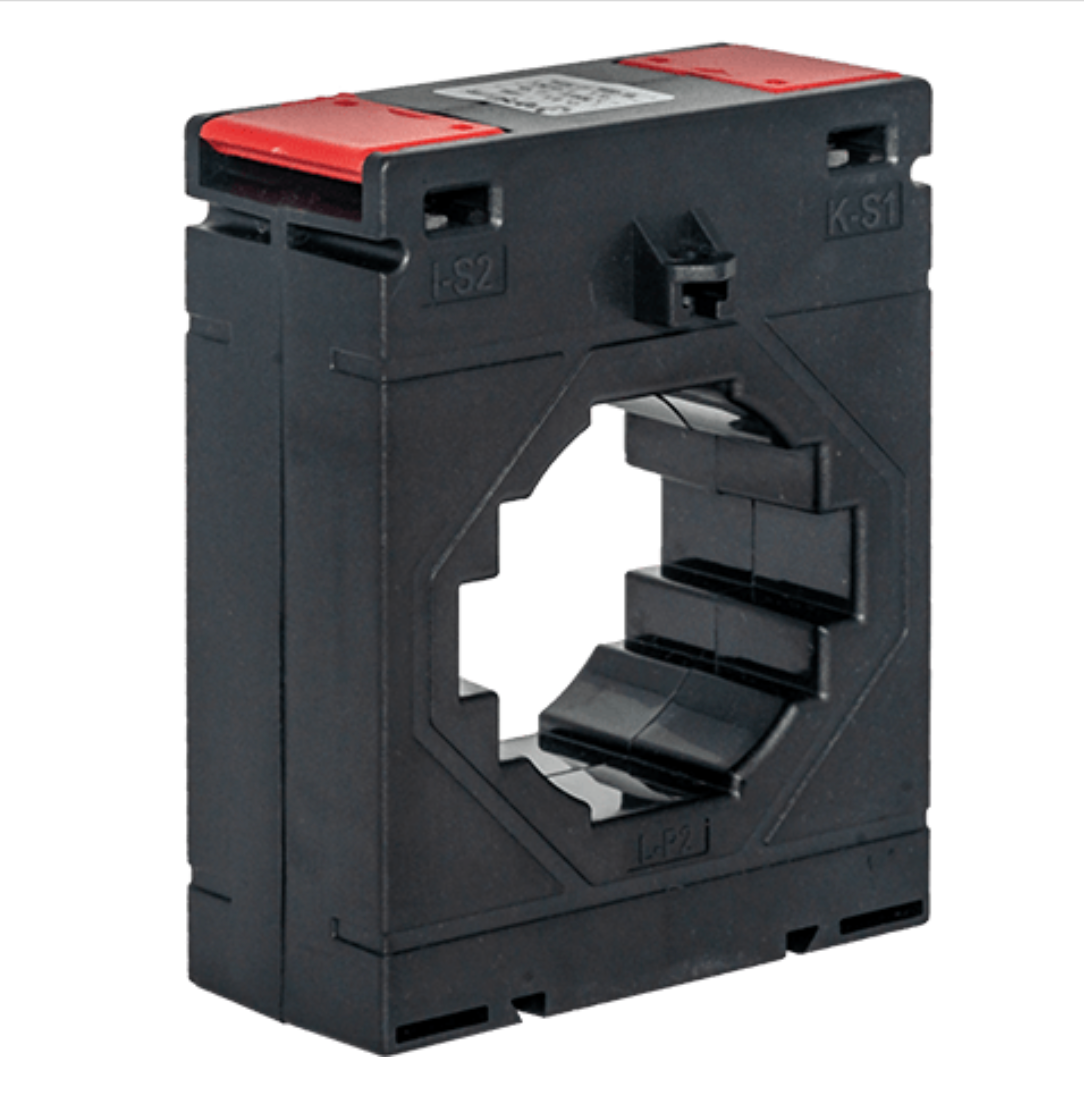

TK80 - Current measuring transformer 1500/5

Current transformer 81x13, 1500/5A -0.5S - 20VA - 80mm, Voltage

Voltage current transformers allow for precise measurement and control of electrical parameters in AC systems. They convert high current values into lower, equipment-safe values, enabling effective control and management of electrical systems.

Technical specifications

Ratio: 1500/5A

Load power: 20VA

Accuracy class: 0.5S

Terminal block Non-removable cover; for heavy-duty cables; made of brass for added safety.

Housing Non-flammable, self-extinguishing ABS

Installation KK0001 or KK0002

Primary winding 80 x 10 mm

Round wire Ø 65 mm

T-resistance to short-circuit current Ith = 60*In

T-resistance to continuous current Id = 1 * In

Ambient temperature (operating hours) -25°C~+85°C

Rated frequency 50 Hz ... 60 Hz

Switching current limit FS 5

Test voltage 3 kV for 1 minute

Maximum system voltage 0.72 kV

Standards: IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869.

Advantages of voltage current transformers:

High accuracy: ensures reliable measurements for precise control of electrical parameters.

Wide range of rated currents: allows selection of the optimal model for specific needs.

Various sizes: different window sizes ensure installation flexibility and compatibility with various cables.

Reliability and durability: made of high-quality materials, guaranteeing a long service life.
