Vendor: TENSE

TK40 - Current measuring transformer 300/5 400/5 500/5 600/5 800/5

Barcode: TK403005302
€19,48
€19,48
excl. VAT: €16
12 in stock
Mark: 300/5
  • Description
  • Instructions
  • Payment methods
  • Warranty

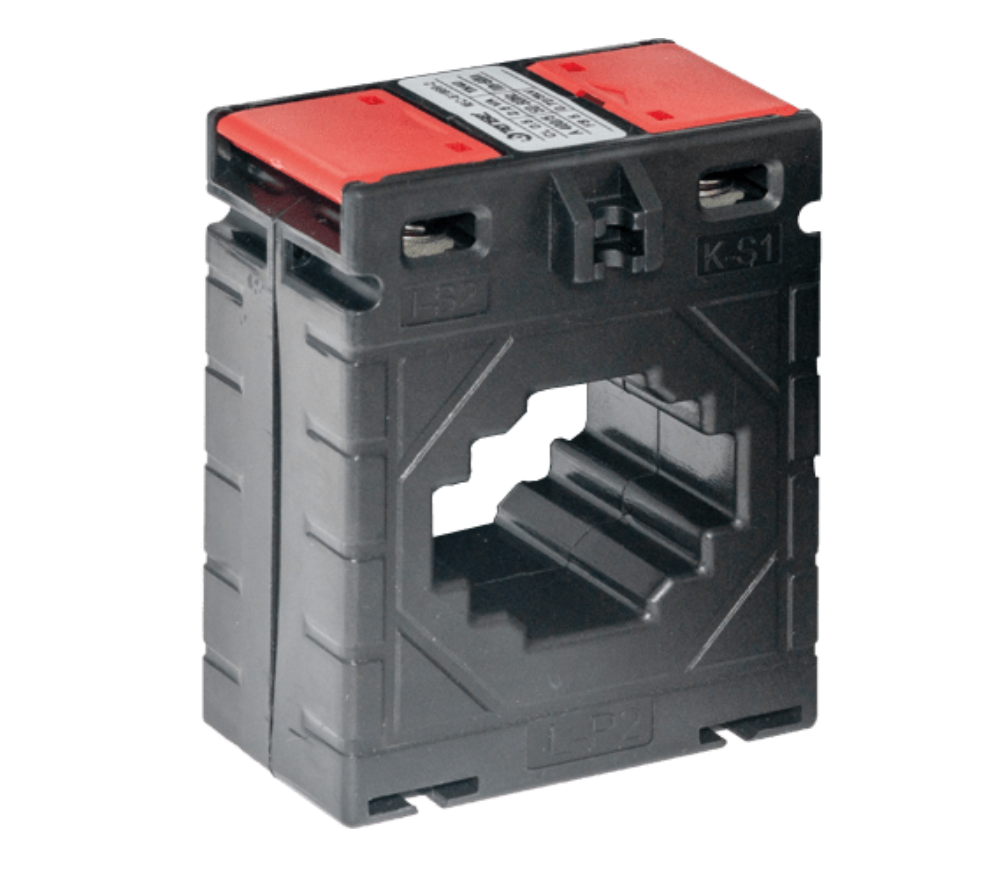

Measuring Current Transformer TK40 - TENSE

Product Description:
The TK40 current transformer is designed for indirect AC current measurement in low-voltage installations and industrial applications. The transformer converts large primary currents into standard secondary currents suitable for measurement, control, or equipment protection.

Features:

  • Accurate current conversion with 0.5S accuracy class.

  • Compact and durable housing made of non-flammable, fire-resistant ABS.

  • Terminal block with non-removable cover, suitable for large wires.

  • Short-circuit current resistance: Ith = 60 × In

  • Continuous current resistance: Id = 1 × In

  • Operating temperature: -25 °C ... +85 °C

  • Installation: KK0001 or KK0002

  • Test voltage: 3 kV for 1 minute

  • Maximum system voltage: 0.72 kV

Technical Parameters

Parameter Value
Ratio 300/5 A
Load power 3.75 VA
Accuracy class 0.5S
Primary winding 40 × 10 mm
Internal bore (conductor diameter) Ø 30 mm
Rated frequency 50-60 Hz
Overcurrent limiting factor FS 5
Installation KK0001 / KK0002
Housing material Non-flammable, fire-resistant ABS


Standards:
IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN 57414, BS3938, BS7626, EN 61869-2

Quality Control:
Each transformer is individually tested at the factory, with results recorded in a test report and attached to the transformer.

Download to

Technical information on current transformers (996 kB) - will be sent upon request

The electrical equipment we supply meets high quality standards, comes with a 24-month warranty, and complies with all EU requirements.
In case of claims, returns are free of charge.
