Network analyzer panel current, voltage, frequency, power, energy, RS485

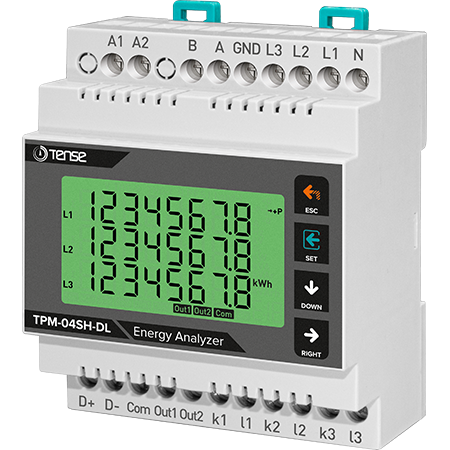

3-phase network analyzer / Network analyzer / Network analyzer - multifunctional digital panel meter, current, voltage, frequency and total power indicator, with relay output, RS485 ModBus RTU - TPM-04SHDL manufacturer TENSE (Turkey) panel meters.

Power analyzers are designed to measure and monitor electrical quantities. Thanks to the communication function, the measured energy values ​​can be independently monitored and reported. With power analyzers, analyses such as power quality, efficiency and unit cost calculation can be performed.

Main advantages:

• RS485 Modbus RTU (1200-19200 b/s)
• Three-phase voltage transformer and three-phase current transformer.

• It displays the harmonic components of voltage and current up to the 31st harmonic.

• Shows the active power in each phase (P).

• Shows the reactive power in each phase (Q, inductive and capacitive).

• Shows the phase nominal power (S)

• Displays the Cosφ and power factor values ​​for each phase.

• Displays voltage (V) and current (I) values ​​between phases and neutral phases and measures frequency.

• Shows total active energy import and export values ​​(ΣkWh).

• Shows the total inductive and capacitive reactive energy values ​​(ΣkVArh).

• Shows minimum and maximum values, maximum demand.

• 2 relay outputs, 1 digital input

• Event logs (high/low voltage/current, voltage/current asymmetry, THD-I).

• The menu is password protected.

Typically, this network analyzer is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. If you are going to connect the analyzer to ModBus, we will send you a "Registration Table" with ModBus addresses upon request.
