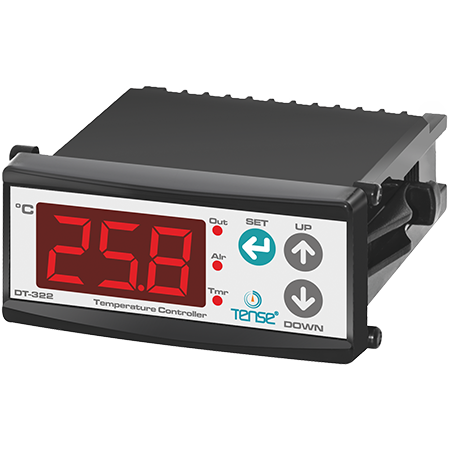

Thermostat / 2-point temperature controller DT-322 - TENSE (Turkey)

Description:
2-point temperature controller for panel mounting with ON-OFF mode. Designed for controlling and monitoring heat processes in heating, air conditioning, ventilation systems, building automation, and industrial applications.

Key features

• Sensor type: NTC

• Outputs: relay OUT and ALARM (NO+NC), 250 VAC, 2A.

• Additional function: heating/cooling

• Adjustable hysteresis for SET and ALARM settings

• OUT output turn-on delay for cooling mode

• Adjustable ON/OFF timers for OUT output in case of sensor failure.

• Upper and lower limits for SET and ALARM settings

• EEPROM memory for saving settings

• Password protection against unauthorized parameter changes

• High measurement accuracy

Technical parameters

• Measurement range: -19.9 °C ... +99.9 °C

• Resolution/step: 0.1 °C

• Power supply and operation: standard panel mounting format

• Relay outputs: 250 VAC / 2 A

Applications

• Temperature control in industrial equipment, air conditioning and heating systems

• Temperature process control

• Equipment protection and process automation
