PDB400 phase separation terminal block
- Regular price
- €37,56 €31,04 excl. VAT
- Regular price
-
- Sale price
- €37,56 €31,04 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

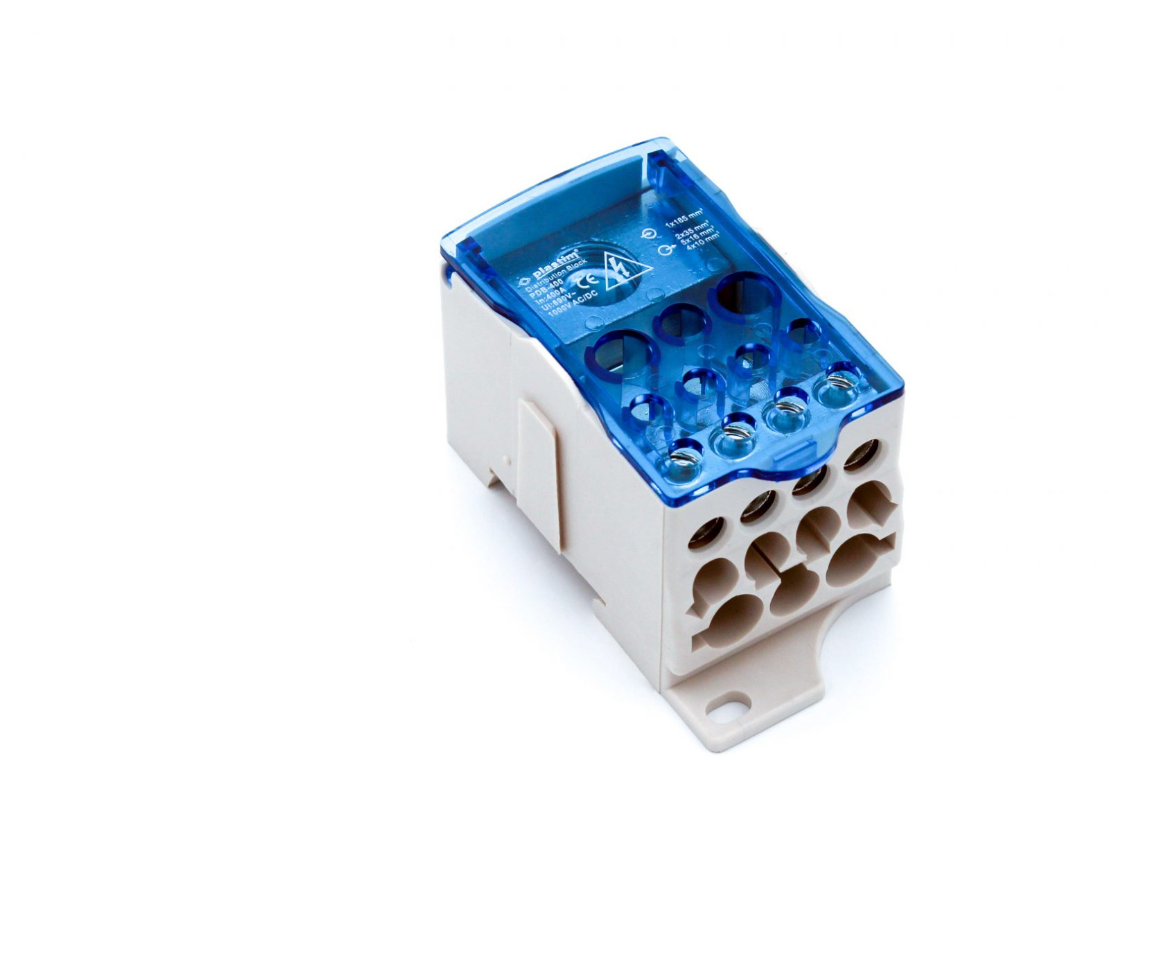

Phase separation terminal block on DIN rail, Plastim
The Plastim high-performance distribution block is used to safely and clearly distribute phase or neutral wires in industrial distribution equipment and main power points. This compact module allows connection of one large cross-section main power cable (up to 185 mm²) and safely distributes it into 11 separate branches with three different power outputs. The durable construction and high-quality conductive core ensure minimal transition resistance and 100% stability at full current load of 400 A. The plastic housing provides a secure enclosure and protection against accidental contact. The block is designed for mounting on a standard DIN 35 mm support rail or for screw mounting on a mounting plate.
Technical parameters
Product type.
Rated current: 400 A
Number of inputs: 1
Number of outputs: 11
Input wire cross-section: 1 × 95 - 185 mm²
-
Output wire cross-section: 1.5 mm - 185 mm:
Wires: 4× 2.5 - 10 mm²
5× 2.5 - 16 mm²
2× 6 - 35 mm²
Connection type: screw connection
Installation method: DIN 35 mm mounting rail / mounting plate
