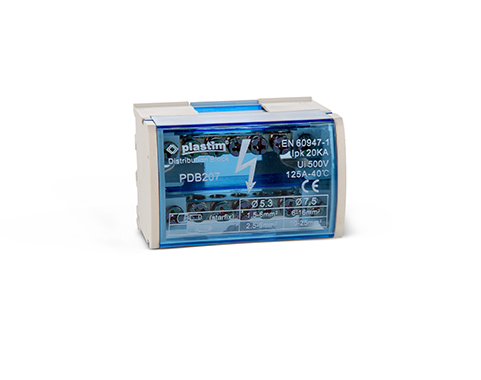

Terminal block for phase separation on DIN rail, Plastim, made in Turkey.
The compact Plastim two-pole distribution block is used for safe and clear phase and neutral conductor branching in distribution cabinets. The design features two separately insulated busbars (2 pole), each with 7 connection points. Durable brass bridges ensure high conductivity and low contact resistance. The plastic cover provides safe protection against accidental contact. The block is designed for mounting on a standard DIN 35 mm support rail or for screw mounting on a mounting plate.
Technical specifications
Product type.
Number of poles: 2
Rated current: 125 A
Number of clamps per pole: 7
Total number of terminals: 14 (2×7)
Terminal configuration per pole: 5× ø 5.3 mm + 2× ø 7.5 mm
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
Dimensions
Width: 65.0 mm
Depth: 45.5 mm
Height: 51.0 mm
