Vendor: MUCCO

SNT-M725, SNT-M715 beacon with sound signal, ø70mm

Barcode: SNT-M715-FB-1
€37,84
€37,84
excl. VAT: €31
Low stock: 7 left
Color: Red
Operating voltage: 24V/DC
  • Description
  • Instructions
  • Payment methods
  • Warranty

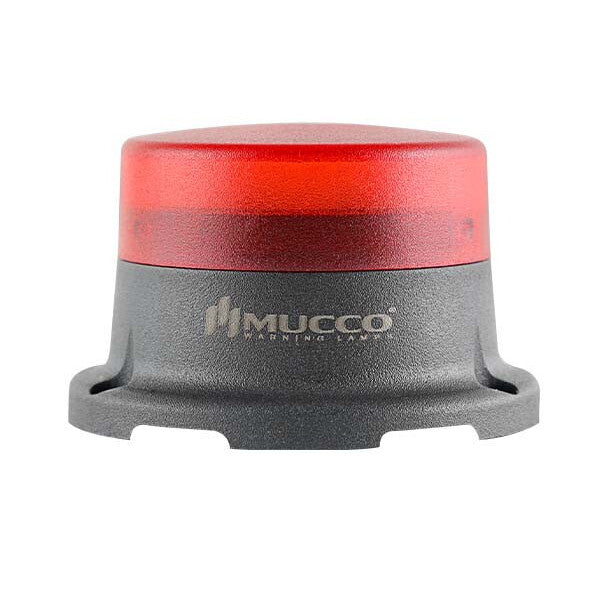

70 series SNT-M725, SNT-M715 signal light with sound signal, ø70mm, manufacturer MUCCO (Turkey)

Rated voltage, starting current

24 V DC 110-150 mA ±10 % (SNT-M715)


78-95 mA ±10 % 50-60 Hz (SNT-M725)

Protection degree

IP65, water, dust, heat and UV radiation resistant

Cover color

Red

Light source

SMD LED

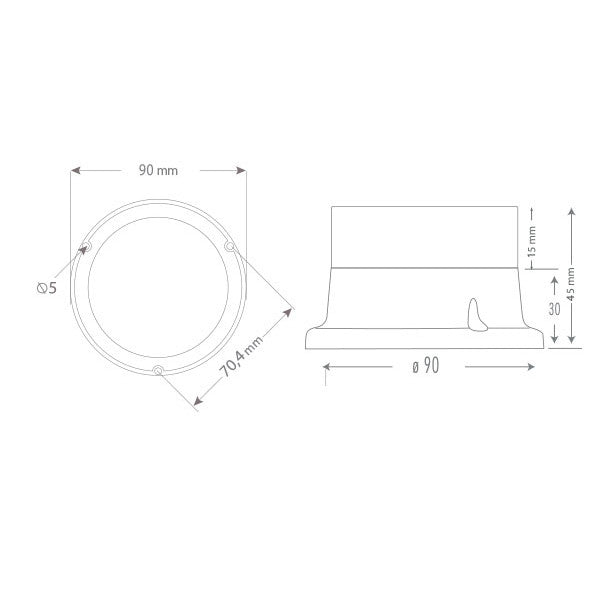

Cover diameter

ø70 mm

Volume

94 ~ 100 dB/1 m (3.3 feet)

Optical signal type

steady light, flashing

Acoustic signal type

Bell sound, 1 tone

Input response

On/off: max. 10 ms

Operating temperature

-20 °C to +50 °C (-4 °F to +122 °F)

Expected lifespan

At least 50,000 hours

Material

ABS (housing) + polycarbonate (cover)

Mounting method

Surface, wall

Certificates and quality documents

ISO-9001, CE, RoSH2 and EAC

The electrical equipment we supply meets high quality standards, comes with a 24-month warranty, and complies with all EU requirements.
In case of claims, returns are free of charge.
