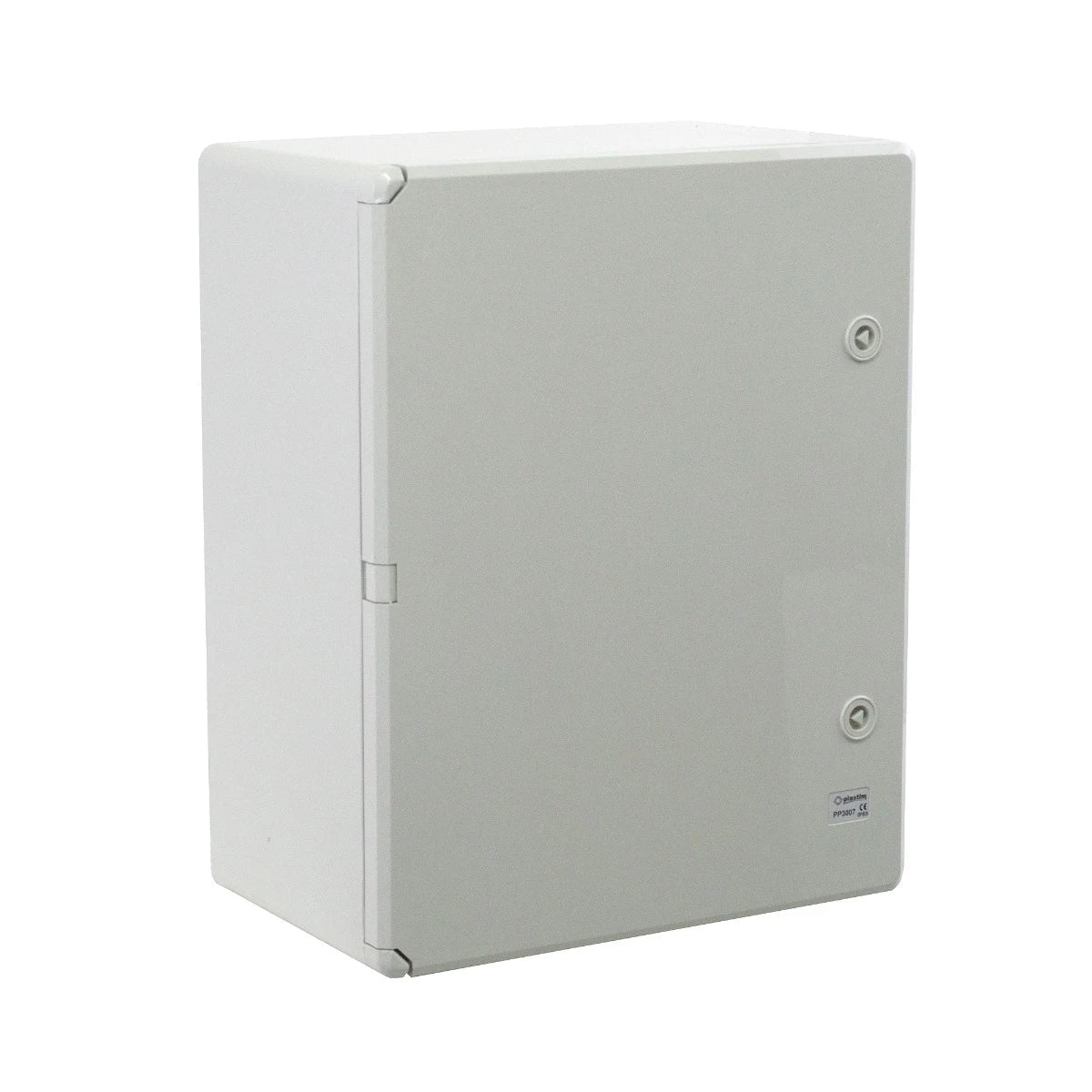

Distribution cabinet plastic gray door 350x500x190mm IP65 PP3006 (P-BOX 3550)

Plastic distribution cabinet, grey door, seam 350x500x190mm, IP65, PP3006 Plastim / P-BOX 3550

The new plastic waterproof enclosures from the Turkish company Plastim open a new page in the use of plastic protective enclosures for automation and power distribution tasks.

• Reinforced hinges with metal pins

• New enclosure design with reinforced corners and increased thickness of the door and the entire product.

• Extended temperature range in which the enclosure retains all its improved properties: -35/+60C.

• Completely corrosion-resistant lightweight solid galvanized metal mounting panel
• Can be equipped with transparent doors and DIN rails reinforced with metal pin hinges;

MAIN TECHNICAL CHARACTERISTICS

• Mounting panel: made of 1 mm thick galvanized steel
• Material.
• Width: 350 mm
• Height: 500 mm
• Depth: 190 mm
• Colour: light grey
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 4.30 kg
