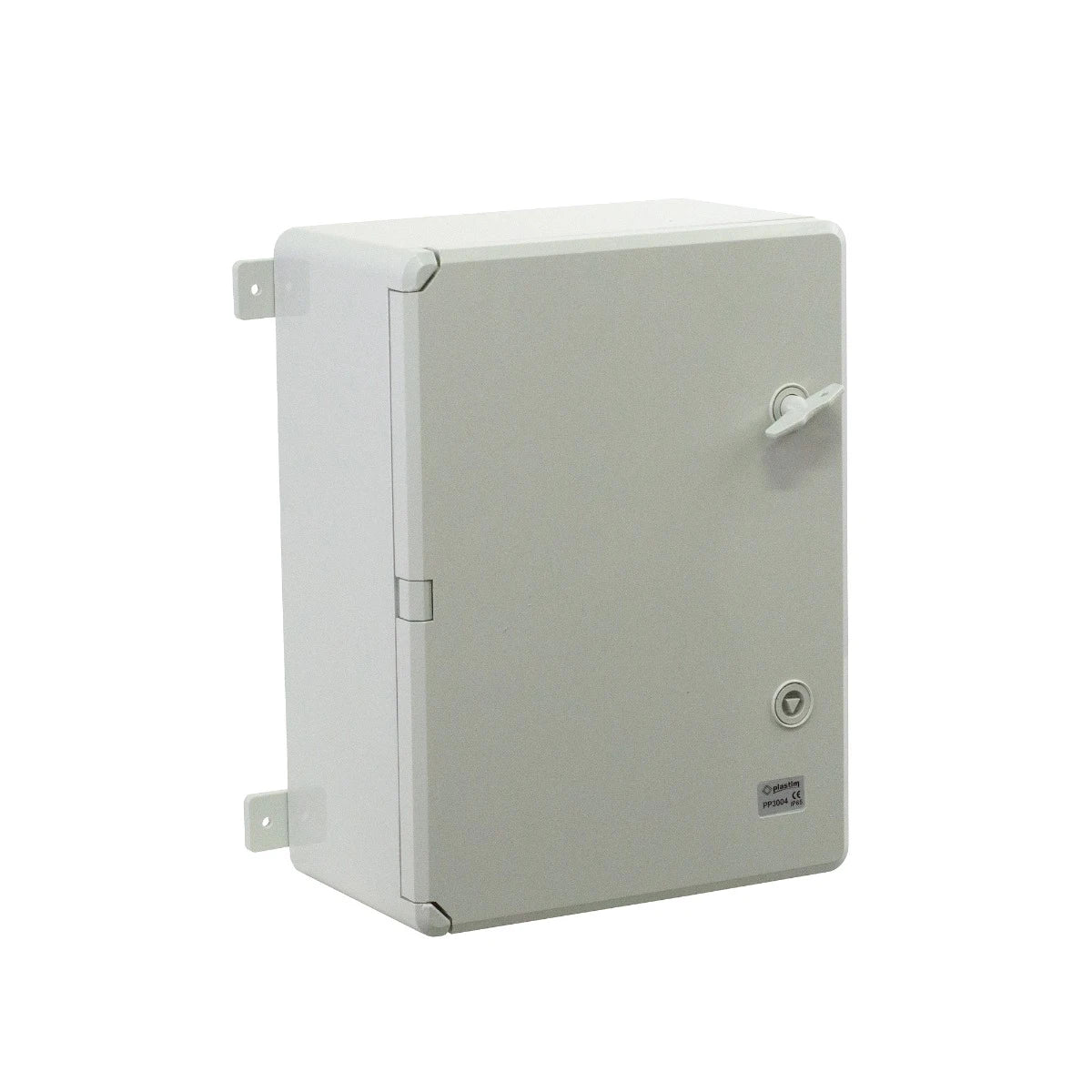

Distribution cabinet plastic gray door 300x400x170mm IP65 PP3004 (P-BOX 3040-1)

Plastic distribution cabinet, grey door, seam 300x400x170mm, IP65, PP3004 Plastim / P-BOX 3040-1

The new plastic waterproof enclosures from the Turkish company Plastim open a new page in the use of plastic protective enclosures for automation and power distribution tasks.

• Reinforced hinges with a metal pin

• New enclosure design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the enclosure maintains all its improved properties -35/+60C.

• Fully corrosion-resistant lightweight, galvanised solid metal mounting panel
• Can be equipped with transparent doors and DIN rails, reinforced with metal pin hinges;

MAIN TECHNICAL SPECIFICATIONS

• Mounting panel: made of 1 mm thick galvanized steel
• Material: ABS/PC
• Width: 300 mm
• Height: 400 mm
• Depth: 170 mm
• Colour: light grey
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 3.00 kg
