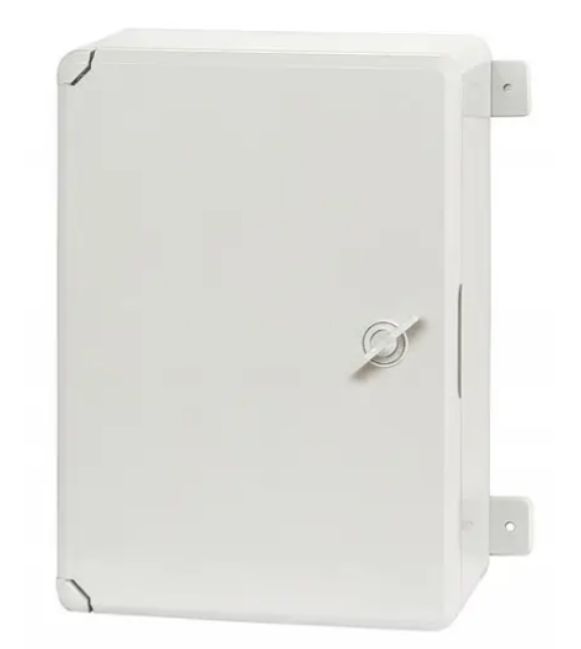

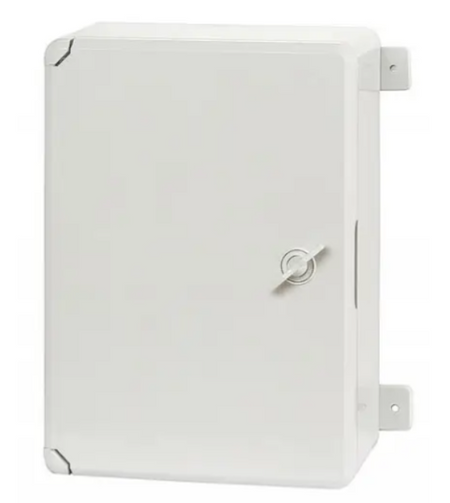

Distribution cabinet plastic gray door 200x300x130mm IP65 PP3001 (P-BOX 2030)

Plastic distribution box, grey door, joint 200x300x130mm, IP65, PP3001 Plastim / P-BOX 3040-1

The new waterproof plastic boxes from the Turkish company Plastim open a new chapter in the use of plastic protective enclosures for automation and power distribution tasks.

• Reinforced hinges with metal pins

• New enclosure design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the protector retains all its improved properties: -35/+60°C.

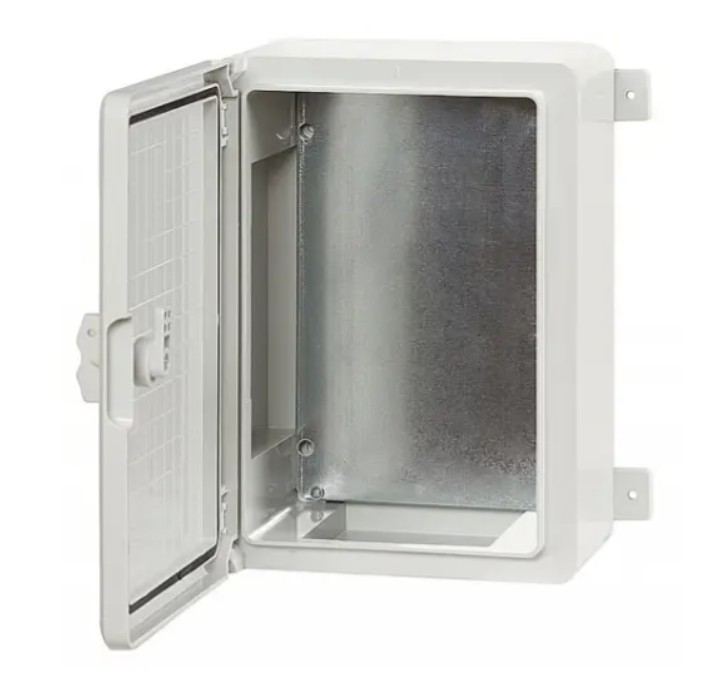

• Completely corrosion-resistant lightweight solid galvanized metal mounting panel
• Can be equipped with transparent doors and DIN rails reinforced with metal pin hinges;

MAIN TECHNICAL SPECIFICATIONS

• Mounting panel: made of 1 mm thick galvanized steel
• Material.
• Width: 200 mm
• Height: 300 mm
• Depth: 130 mm
• Colour: light grey
• Enclosure rating: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C to +65°C
• Weight: 1.70 kg
