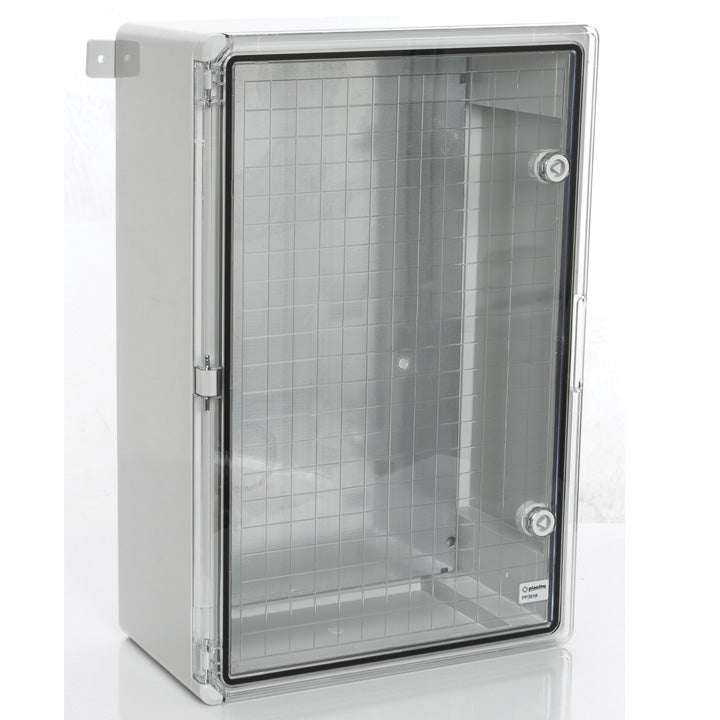

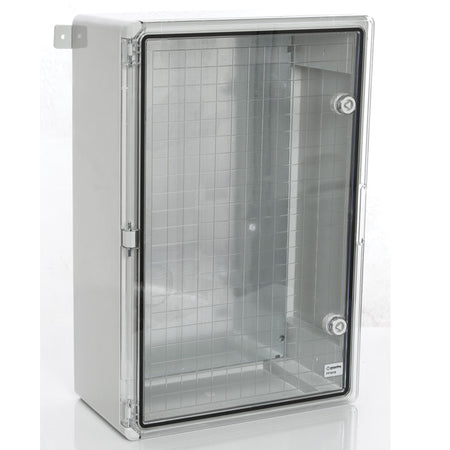

Distribution cabinet plastic transparent door 400x600x200mm IP65 PP3018 PLASTIM

Plastic distribution cabinet, transparent door, joint 400x600x200mm, IP65, PP3018 Plastim

The new plastic waterproof enclosures produced by the Turkish company Plastim open a new page in the use of plastic protective enclosures in automation and power distribution tasks.

• Reinforced hinges with a metal pin

• New enclosure design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the protector retains all its improved properties -35/+60C

• Completely corrosion-resistant lightweight, galvanized solid metal mounting panel
• Can be equipped with transparent doors and DIN rails, reinforced with metal pin hinges;

MAIN TECHNICAL FEATURES

• Mounting panel: made of 1 mm thick galvanized steel
• Material: HB Halogen-free ABS + polycarbonate (door)
• Aluminum wall: 2.5 mm
• Width: 400 mm
• Height: 600 mm
• Depth: 200 mm
• Color: light grey
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 6.00 kg
