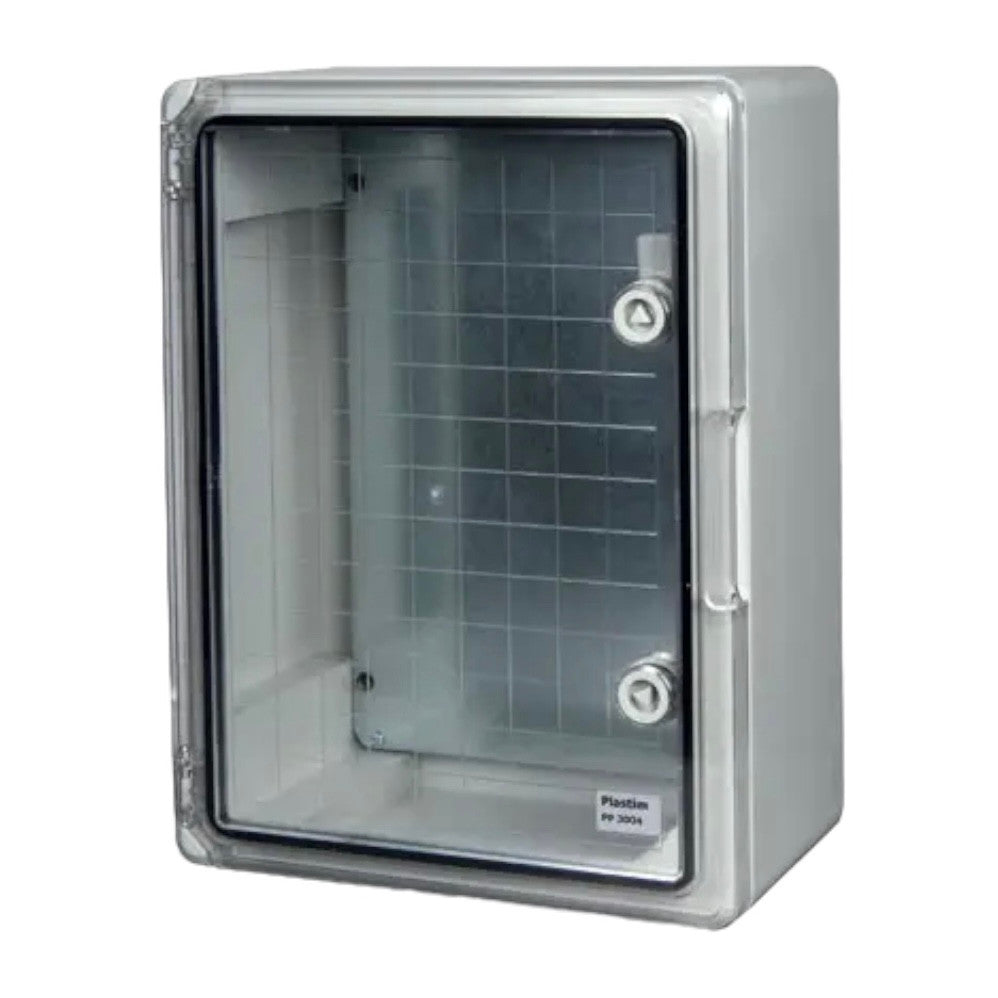

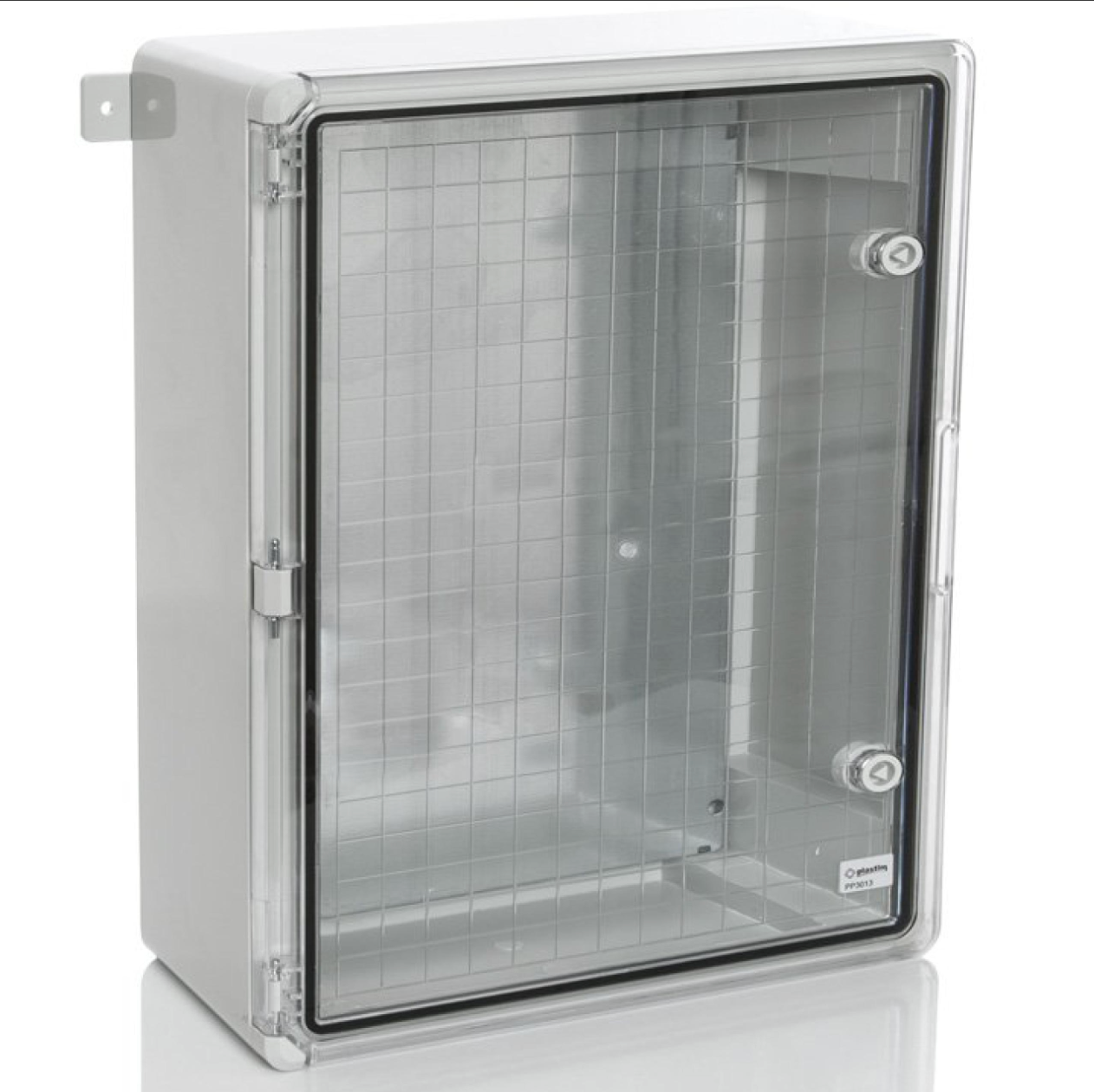

Distribution cabinet plastic transparent door 400x500x175mm IP65 PP3013

Plastic distribution cabinet, transparent door, 400x500x175mm, IP65, PP3013 Plastim

The new plastic waterproof enclosures manufactured by the Turkish company Plastim open a new page in the use of plastic protective enclosures for automation and power distribution tasks.

• Reinforced boxes with metal pins

• New enclosure design with corner reinforcements and increased door and overall product thickness.

• Extended temperature range in which the protector retains all its improved properties -35/+60C.

• Completely corrosion-resistant lightweight, galvanized solid metal mounting panel.
• Can be equipped with transparent doors and DIN reinforced metal pin rails;

MAIN TECHNICAL CHARACTERISTICS

• Mounting panel: made of 1 mm thick galvanized steel.
• Material: HB Halogen-free ABS + polycarbonate (door).
• Width: 400 mm
• Height: 500 mm
• Depth: 175 mm
• Color: light gray
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 4.3 kg
