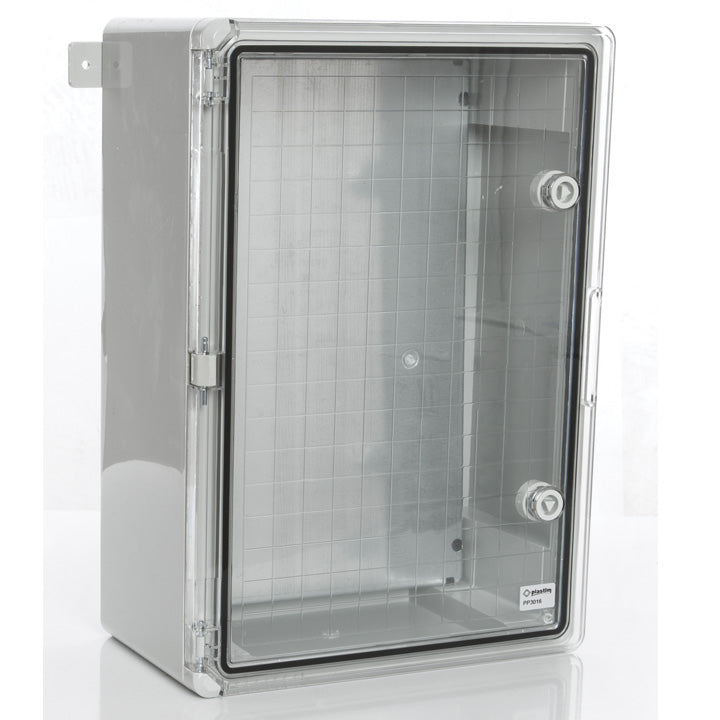

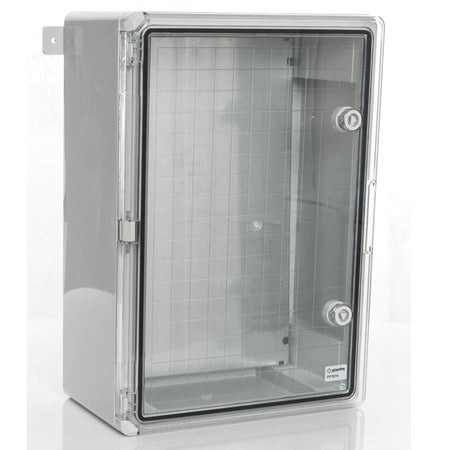

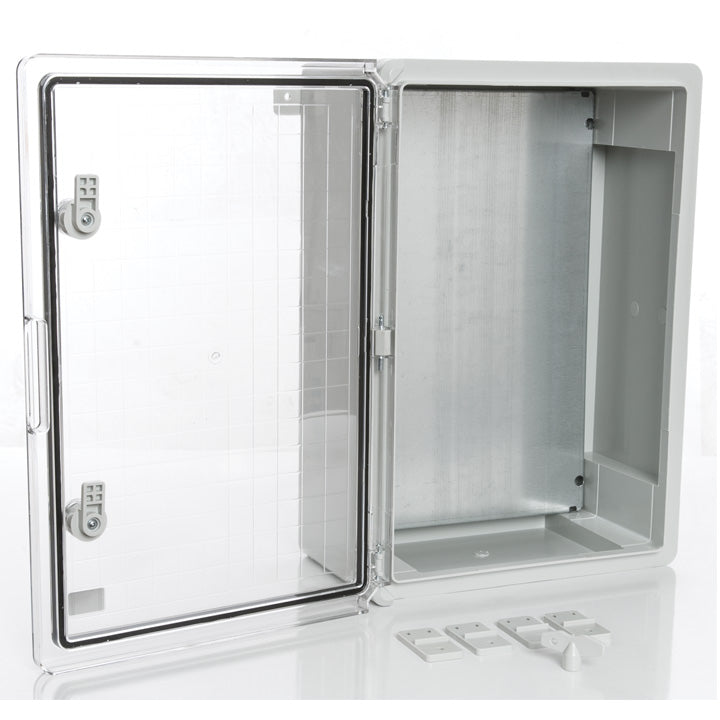

Distribution cabinet plastic transparent door 350x500x190mm IP65 PP3016

Plastic distribution cabinet, transparent door, joint 350x500x190mm, IP65, PP3016 Plastim

The new plastic waterproof enclosures produced by the Turkish company Plastim open a new chapter in the use of plastic protective enclosures for automation and power distribution tasks.

• Reinforced boxes with metal pins

• Newly designed enclosures with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the protector retains all its enhanced properties -35/+60C.

• Completely corrosion-resistant lightweight solid galvanized metal mounting panel.
• Can be equipped with transparent doors and DIN reinforced metal pin rails;

MAIN TECHNICAL FEATURES

• Mounting panel: made of 1 mm thick galvanized steel.
• Material: HB halogen-free ABS + polycarbonate (door).
• Width: 350 mm
• Height: 500 mm
• Depth: 190 mm
• Color: light grey
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 4.30 kg
