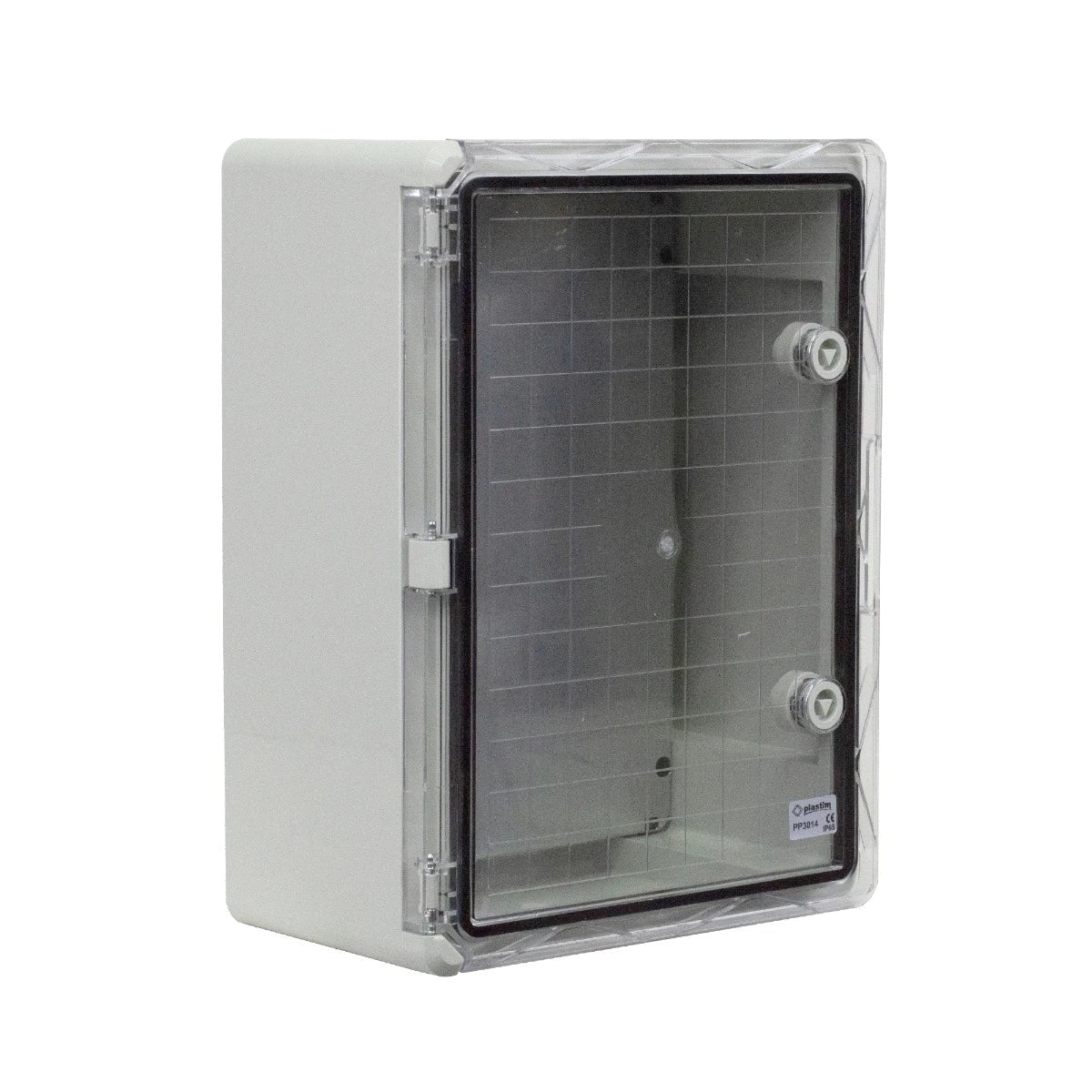

Distribution cabinet plastic transparent door 300x400x170mm IP65 PP3014

Plastic distribution box, transparent door, joint 300x400x170mm, IP65, PP3014 Plastim

The new plastic waterproof enclosures produced by the Turkish company Plastim open a new chapter in the use of plastic protective enclosures for automation and power distribution tasks.

• Reinforced boxes with metal pins

• New design enclosures with reinforced corners and increased door and overall product thickness.

• Extended temperature range in which the protector retains all its improved properties -25/+60C

• Completely corrosion-resistant lightweight solid galvanized metal mounting panel
• Can be equipped with transparent doors and DIN rails with reinforced metal pin brackets;

MAIN TECHNICAL FEATURES

• Mounting panel: made of 1 mm thick galvanized steel
• Material: Halogen-free HB ABS + polycarbonate (door).
• Width: 300 mm
• Height: 400 mm
• Depth: 170 mm
• Color: light gray
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 3.00 kg
