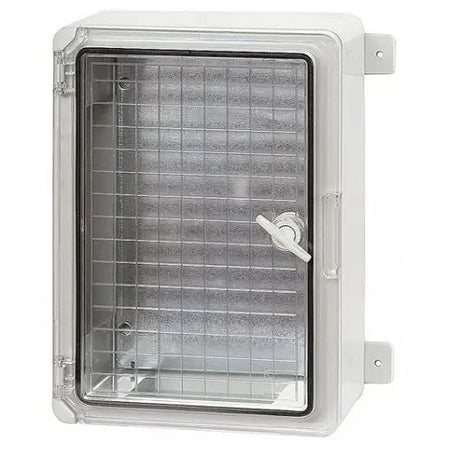

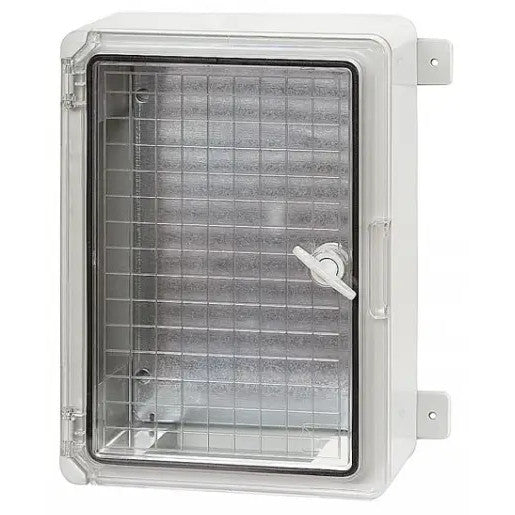

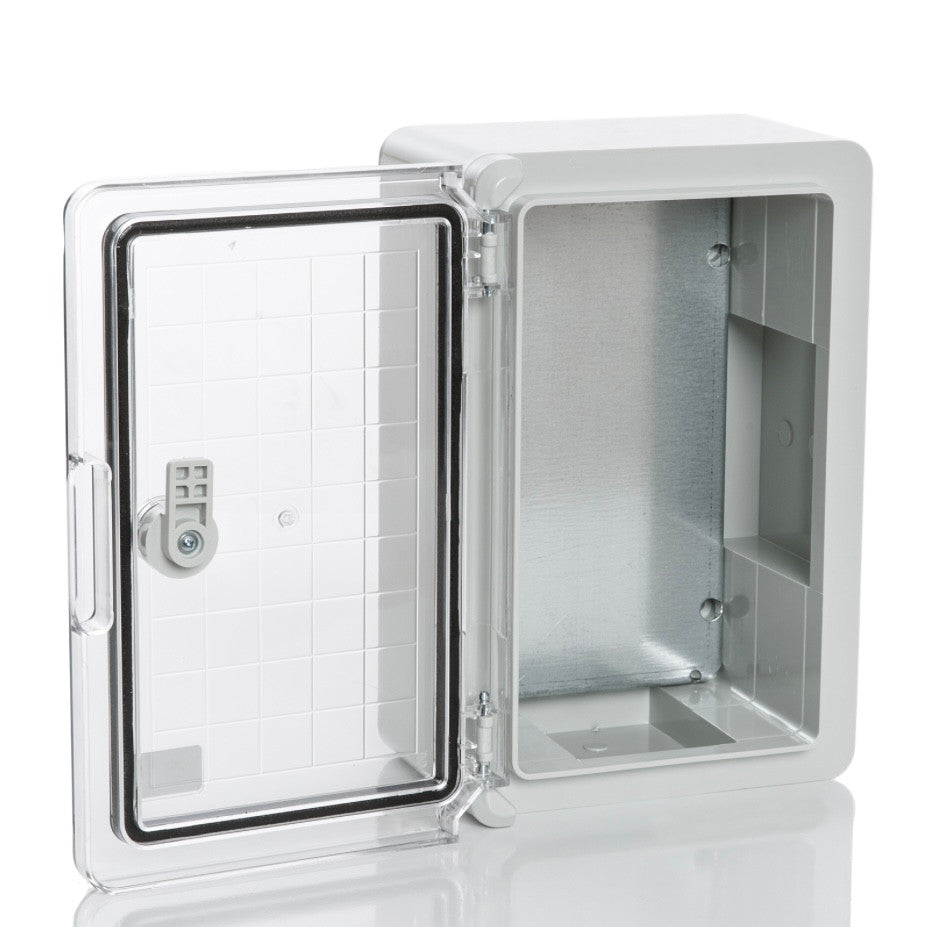

Distribution cabinet plastic transparent door 200x300x130mm IP65 PP3011

Plastic distribution cabinet, transparent door, seams 200x300x130mm, IP65, PP3011 Plastim

The new plastic waterproof enclosures produced by the Turkish company Plastim open a new page in the use of plastic protective enclosures for automation and power distribution tasks.

• Reinforced hinges with metal pin

• New enclosure design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the protector retains all its improved properties -35/+60C

• Completely corrosion-resistant lightweight solid galvanized metal mounting panel
• Can be equipped with transparent doors and DIN rails reinforced with metal pin hinges;

MAIN TECHNICAL SPECIFICATIONS

• Mounting panel: made of 1 mm thick galvanized steel
• Material: HB ABS halogen-free + polycarbonate (door)
• Width: 200 mm
• Height: 300 mm
• Depth: 130 mm
• Color: light grey
• Protection: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 1.70 kg
