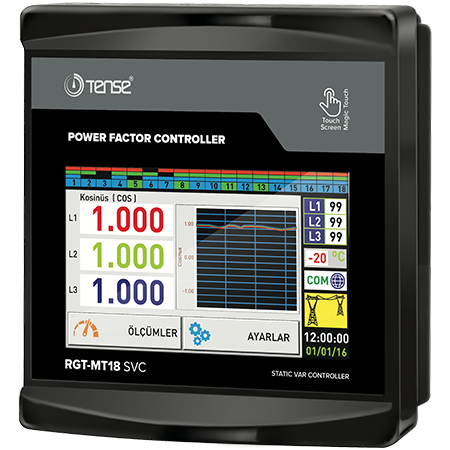

RGT-MT18 - Reactive power controller 18 levels +TCR with RS485 ModBus control

18-step + TCR Power Factor Controller for Symmetrical/Asymmetrical Networks with 5-inch Touchscreen and RS-485 (TENSE)

Reactive power control relays are designed to reduce the reactive power (inductive and capacitive) not consumed by the load and drawn from the grid. If inductive power is drawn from the grid, it intervenes by disconnecting a capacitor with an appropriate value. If capacitive power is drawn from the grid, it intervenes by taking a shunt inductor with an appropriate value. In this way, it attempts to reduce the inductive/active and capacitive/active ratios of the system. It is designed to provide more sensible compensation in unbalanced inductive and capacitive systems with RGT-MT18 TCR steps.

• Generator input and generator compensation

• Voltage, harmonic current/voltage, inductive and capacitive alarm output

• Ability to adjust turn-on, discharge and stabilization times

• Remote control via RS485 (RS485 ModBus RTU)

• Can connect single-phase, two-phase and three-phase capacitors and shunt reactors.

• Can monitor harmonic voltage and current up to the 61st harmonic

• Can monitor total energy (import/export)

• Can monitor THD-V and THD-I values for each phase.

• Create power analysis (20 samples 9999 min.) - for capacitor selection.

• Temperature alarm output

• Demand recording (active and reactive and apparent power and current demand)

• Can monitor minimum, maximum and average current and voltage values for each phase.

• Actual date and time
