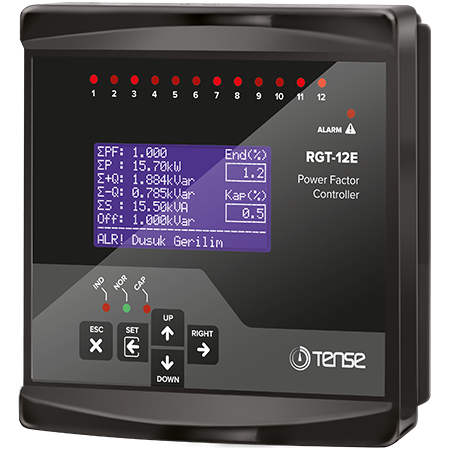

Power Factor Controller 12 steps + TCR with 2.9" Graphic LCD (TENSE) - RGT-12E

The TENSE reactive power controller RGT-12E is a fully automatic and highly accurate controller designed for optimal control of compensation stages in power systems. With digital measurement, intelligent algorithms, and a graphic LCD display, it ensures a stable power factor, efficient reactive power control, and protection of compensation equipment.

Key features and functions

Automatic detection of compensation stages

The controller self-configures upon power-up:

• Automatically detects the size of connected capacitor banks.

• parameters can also be entered manually.

• the system continuously checks the status of each stage

Intelligent switching control

The controller switches stages on and off so that:

• a stable power factor is achieved with a minimum number of switches

• individual stages are loaded evenly

• priority is given to capacitors with the lowest residual charge

• at the same time, the status of each stage is checked (faults, power changes, removal and re-connection)

TCR (Thyristor Commuted Reactor) support

The controller provides compensation control with thyristor-switched reactors, ideal for:

• Industrial applications

• dynamic compensation

• systems with frequent load changes

advanced measurements and analysis

• Harmonic voltage and current measurements up to the 31st harmonic.

• Total energy monitoring (import/export)

• THD-V and THD-I measurements for each phase

• Generation of power analysis (20 samples over 9999 min) - very useful when designing compensation nodesAngular wiring of compensation elements.

Application options:

• single-phase capacitors

• two-phase capacitors

• three-phase capacitors

• shunt reactors

Adjustable time functions

Can be set:

• intervention time

• discharge time

• stabilization time
  This allows for precise adjustment of control to the nature of the operation.

Generator functions

The controller has:

• generator control input

• generator power compensation function

Technical features (brief overview)

• 12 relay compensation outputs

• TCR support

• Graphic LCD display 2.9"

• Automatic stage detection

• Harmonic measurement up to 31st order

• Energy statistics and history

• THD-V / THD-I

• Support for single-phase, two-phase, and three-phase stages

• Programmable off, on, and discharge time

• Protection against faults in stages
