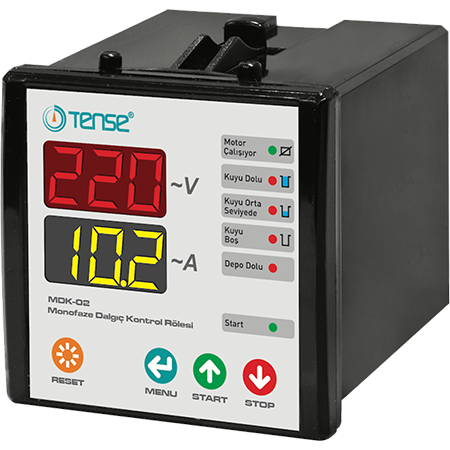

TENSE MDK-02 Single-Phase Submersible Borehole Pump Controller, 140-280 VAC, 60 A

Product Description

The TENSE MDK-02 controller is designed for the protection and control of submersible pumps in boreholes and wells.
It provides protection against voltage and current surges, water shortage, and pump overload.
Built-in functions also include tank level monitoring, time delay settings, and inrush current control.

Key Features

• Single-phase power supply, range: 140-280 VAC.

• Maximum current: 60 A

• Microprocessor control with LED display

• Protection functions:

  • Overcurrent/undercurrent

  • Overvoltage/undervoltage

  • Water level control in well/tank

• Operating parameter settings: P1-P10 (e.g., max/min voltage, current, response delay, start interval, auto-reset time)

• Operating modes: START / STOP

• Built-in pump delay timer to extend pump operating life

• Pump status indication via LED indicators

Technical Parameters

• Operating voltage: 140-280 V AC

• Frequency: 50 Hz

• Current range: 0.5-60 A

• Power consumption: < 4 W

• Liquid sensitivity: < 50 kΩ

• Protection class: IP40

• Operating temperature: -5 °C to +55 °C

• Maximum cable cross-section: 1.5 mm²

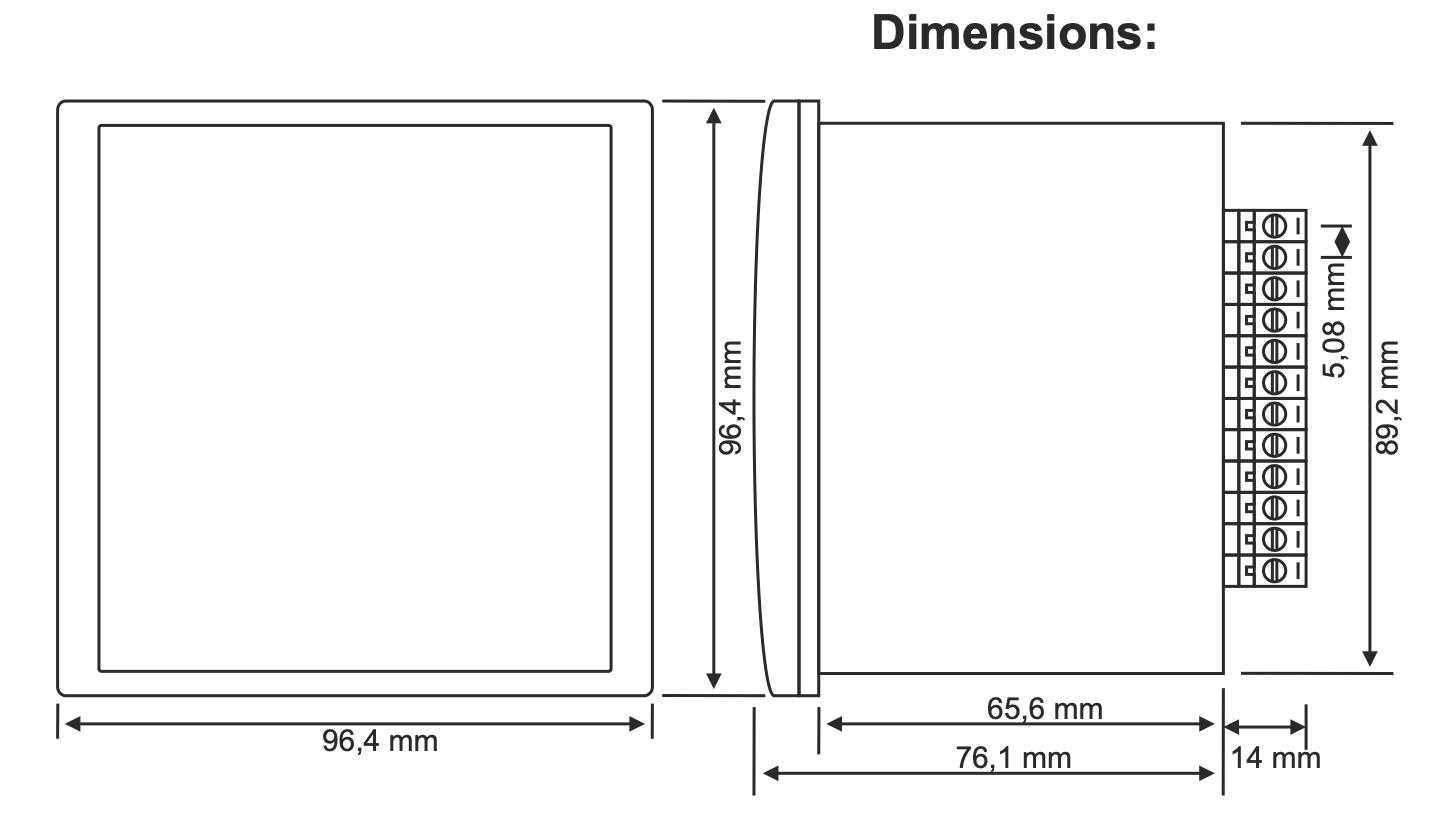

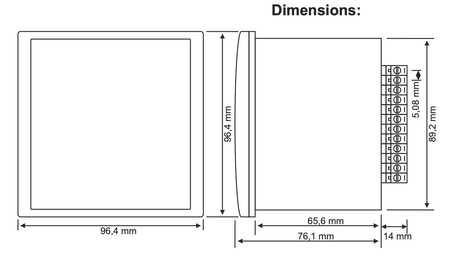

• Mounting aperture: 91 × 91 mm

• Installation height: < 2000 m

• Weight: 325 g

Application:

• Protection of submersible pumps against dry running and overload

• Water level control in tanks and wells

• Monitoring and safe operation of domestic and industrial pumps

Important Notes

• Electrodes/water level sensors are not included - they must be ordered separately.

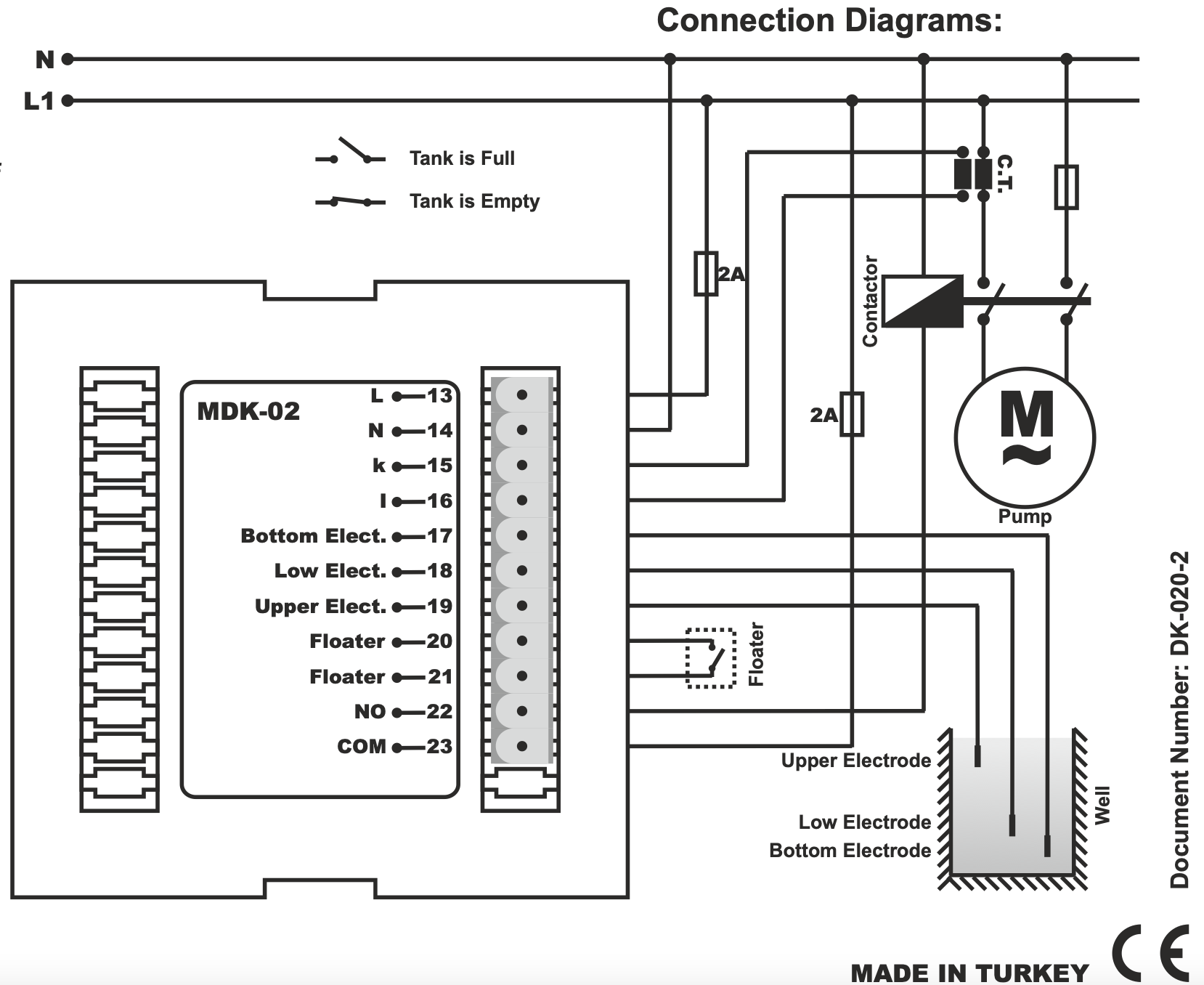

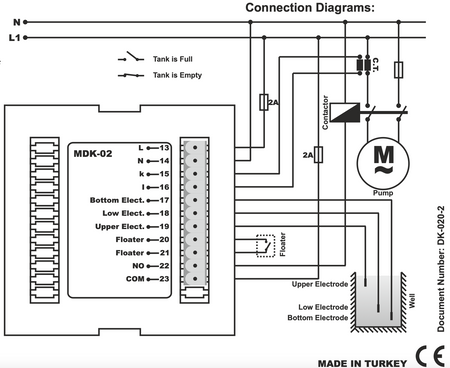

• The controller must be connected according to the manufacturer's wiring diagram.

• The fluid must not be flammable or explosive.

• Installation temperature must be > 0 °C

• The pump must be earthed

• If two level sensors are used, the upper and middle sensors must be connected correctly.
