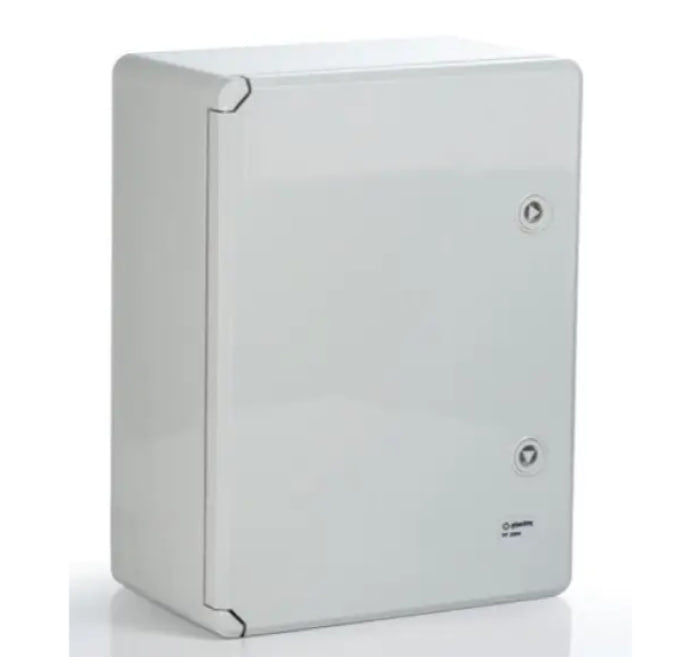

Plastic cabinet gray 250x350x150mm IP65 PP3002 (P-BOX 2535)

Plastic distribution cabinet, grey door, joint 250x350x150mm, IP65, PP3002 Plastim / P-BOX 3040-1

The new plastic waterproof boxes from the Turkish company Plastim open a new page in the use of plastic protective boxes for automation and power distribution tasks.

• Reinforced hinges with metal pins

• New enclosure design with corner reinforcements and increased door and overall product thickness.

• Extended temperature range where the protector retains all its improved properties -35/+60C.

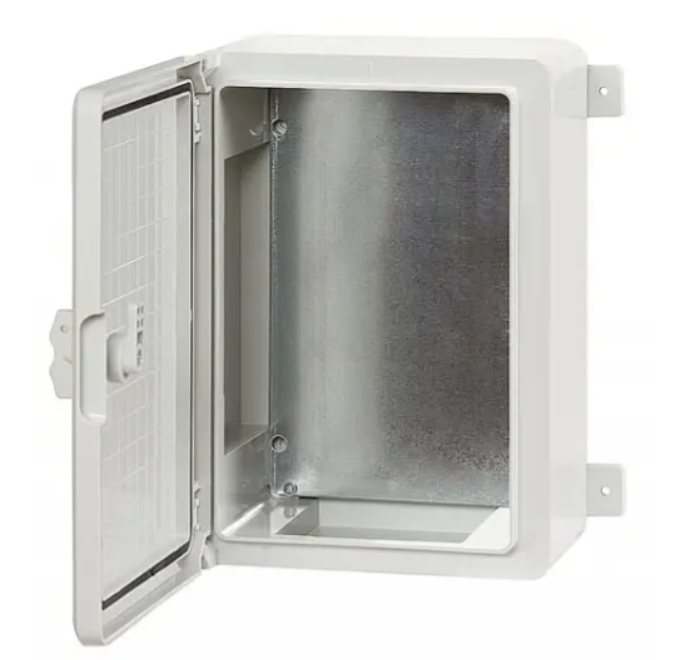

• Completely corrosion-resistant lightweight solid galvanized metal mounting panel
• Can be equipped with transparent doors and DIN rails reinforced with metal pin hinges;

MAIN TECHNICAL CHARACTERISTICS

• Mounting panel: made of 1 mm thick galvanized steel
• Material.
• Width: 250 mm
• Height: 350 mm
• Depth: 150 mm
• Colour: light grey
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 2.20 kg
