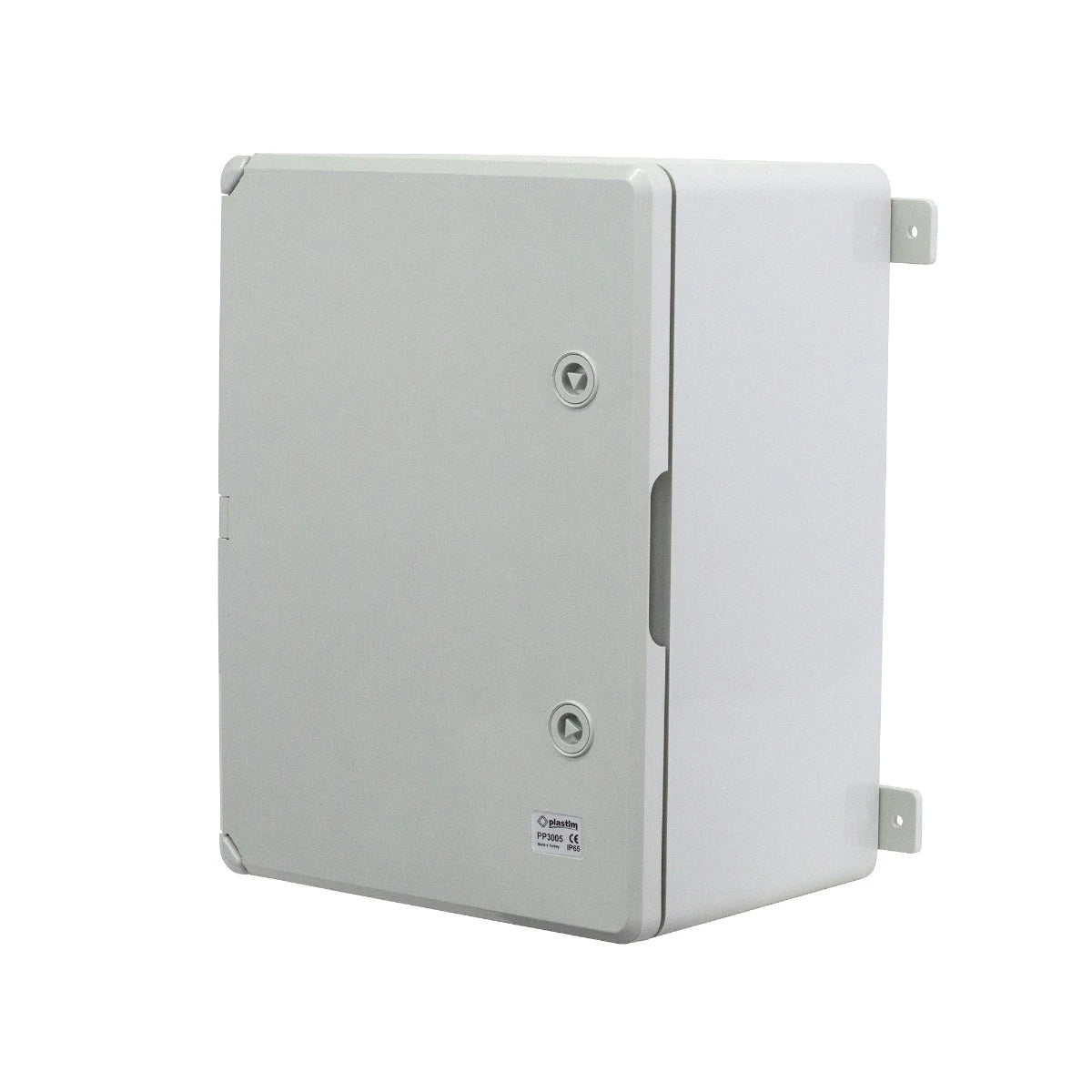

Plastic cabinet with gray door 300x400x220mm IP65 PP3005 (P-BOX 3040-2)

Plastic distribution cabinet, grey door, seam 300x400x220mm, IP65, PP3005 Plastim / P-BOX 3040-2

The new waterproof plastic boxes from the Turkish company Plastim open a new chapter in the use of plastic protective boxes for automation and power distribution tasks.

• Reinforced hinges with metal pin

• New housing design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the enclosure retains all its improved properties: -35/+60C.

• Completely corrosion-resistant, lightweight, galvanized solid metal mounting panel
• Can be equipped with transparent doors and DIN rails, reinforced with metal pin hinges;

MAIN TECHNICAL CHARACTERISTICS

• Mounting panel: made of 1 mm thick galvanized steel
• Material:
• Width: 300 mm
• Height: 400 mm
• Depth: 220 mm
• Color: light grey
• Protection class: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 3.40 kg
