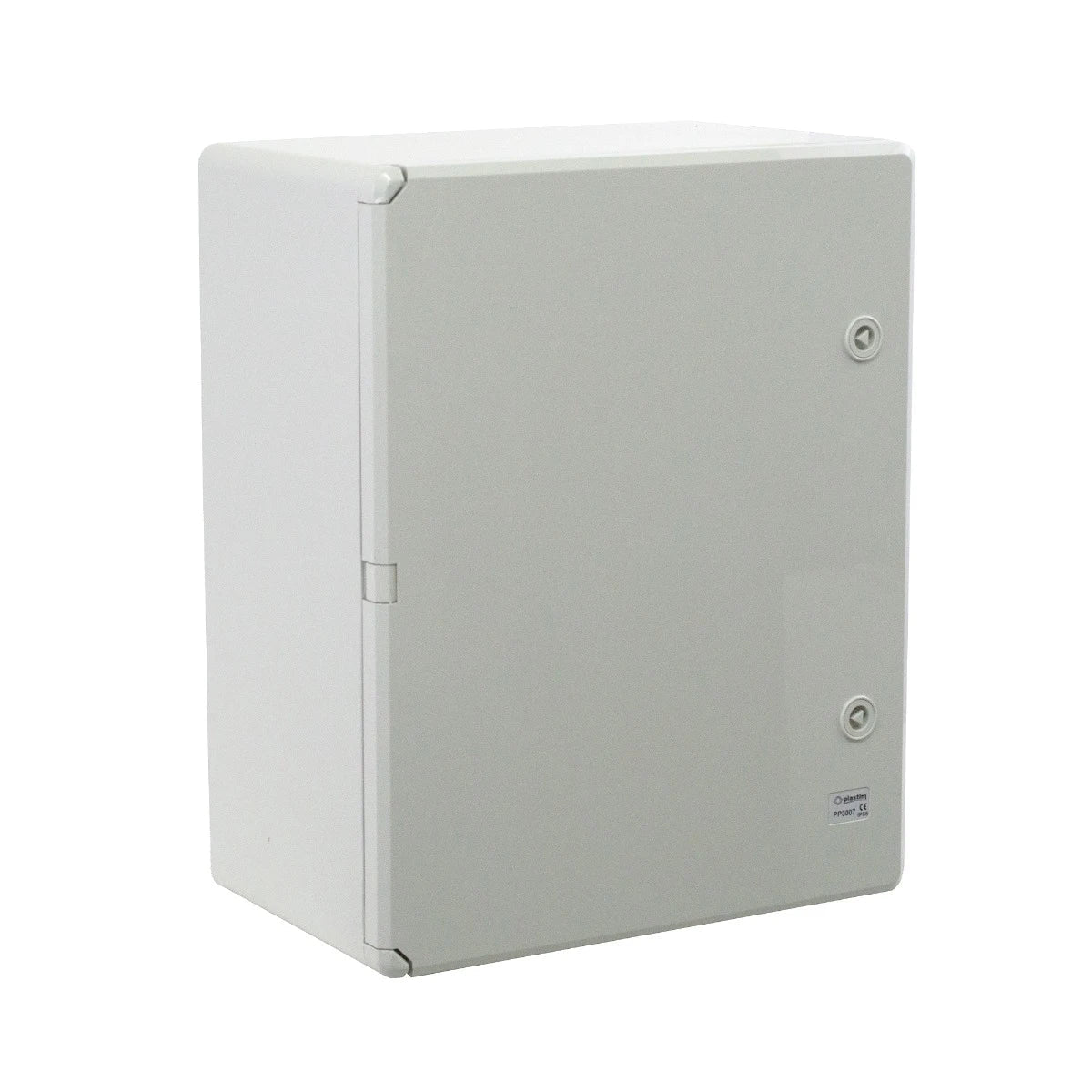

Plastic cabinet gray door 400x500x240mm IP65 PP3007 (P-BOX 4050-2)

Plastic distribution cabinet, grey door, seam 400x500x240mm, IP65, PP3007 Plastim / P-BOX 4050-2

The new plastic waterproof enclosures from the Turkish company Plastim open a new chapter in the use of plastic protective boxes for automation and power distribution tasks.

• Reinforced hinges with metal pin

• New enclosure design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the protector maintains all its enhanced properties -35/+60C.

• Completely corrosion-resistant lightweight solid galvanized metal mounting panel
• Can be equipped with transparent doors and DIN rails reinforced with metal pin hinges;

MAIN TECHNICAL SPECIFICATIONS

• Mounting panel: made of 1 mm thick galvanized steel
• Material.
• Width: 400 mm
• Height: 500 mm
• Depth: 240 mm
• Colour: light grey
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 3.00 kg
