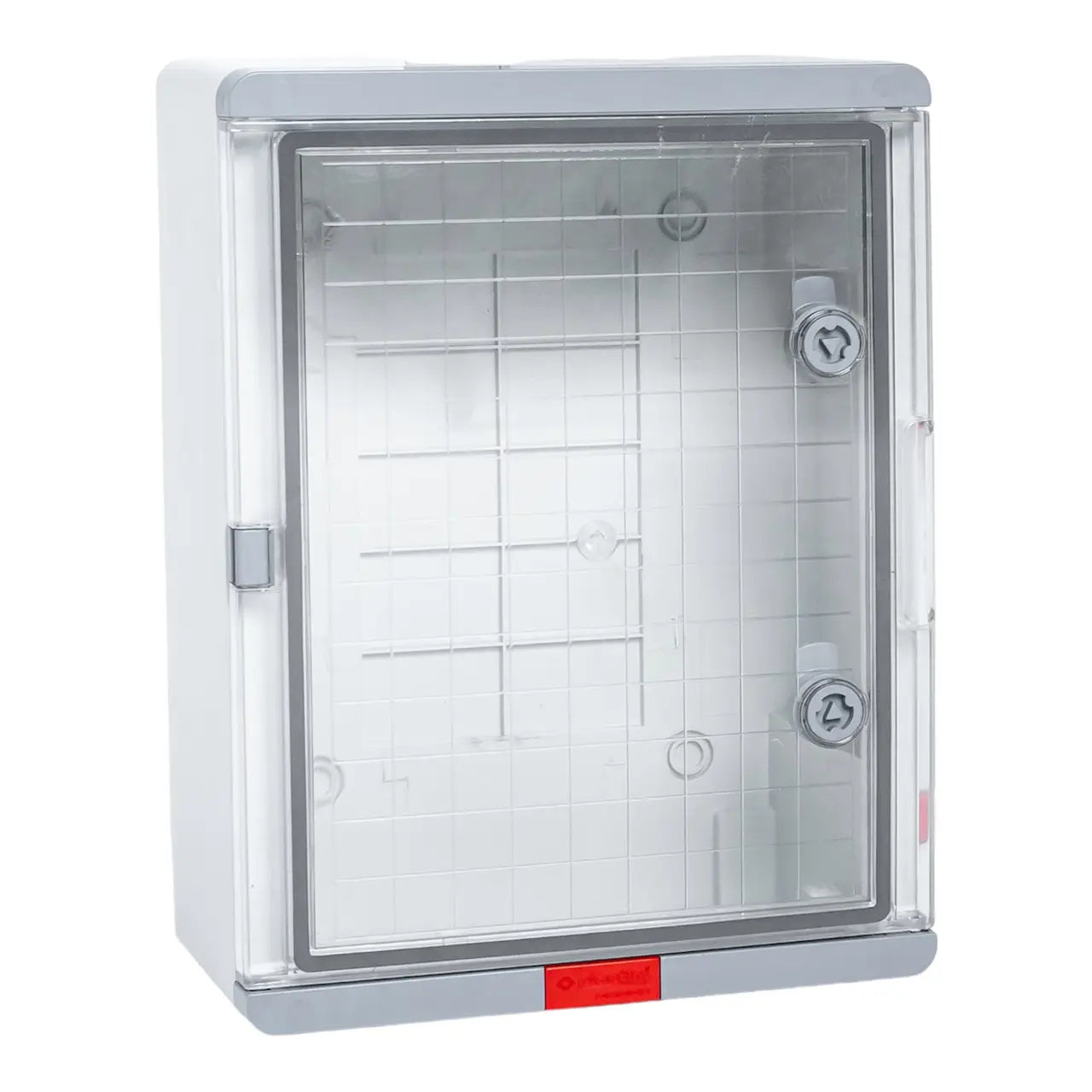

Plastic box IP 67, transparent door, 500x400x180 mm

Hermetic plastic electrical panel IP67 with mounting plate Plastim (Turkey)

The impact-resistant IP67 panel from Turkish manufacturer Plastim is a reliable solution for protecting electrical connections in harsh conditions – high humidity, dust, chemical environments, or outdoor installations. The durable plastic casing and high degree of hermetic sealing make it an ideal choice for industrial, construction, energy, and marine infrastructure applications.

Advantages of the IP67 hermetic plastic enclosure

Complete protection against dust and moisture (IP67)
The device is completely dustproof and can withstand temporary immersion in water (1 m / 30 min). Suitable for car washes, outdoor installations, and wet or dusty environments.

Corrosion resistance
Plastic does not rust, which is particularly valued in marine environments, chemical plants, or areas with high humidity levels.

Easy to install and transport
The plastic enclosure is significantly lighter than metal alternatives, making it easier to install and use in hard-to-reach places.

High dielectric properties
Plastic does not conduct electricity, which increases electrical safety and provides additional insulation.

UV resistance
The UV-resistant ABS plastic casing maintains its strength and color stability with prolonged outdoor use.

Technical specifications

• Material: ABS, UV-stable, halogen-free.

• Protection: IP67

• Impact resistance (IK): IK08

• Rated current: 800 A

• Rated voltage: 690 V

• Dimensions (H × W × D): 500 × 400 × 180 mm

• Package dimensions: 504 × 404 × 184 mm

• Operating temperature: -35 to +65 °C

• RAL color code: 7035

• Net weight: 4.3 kg
