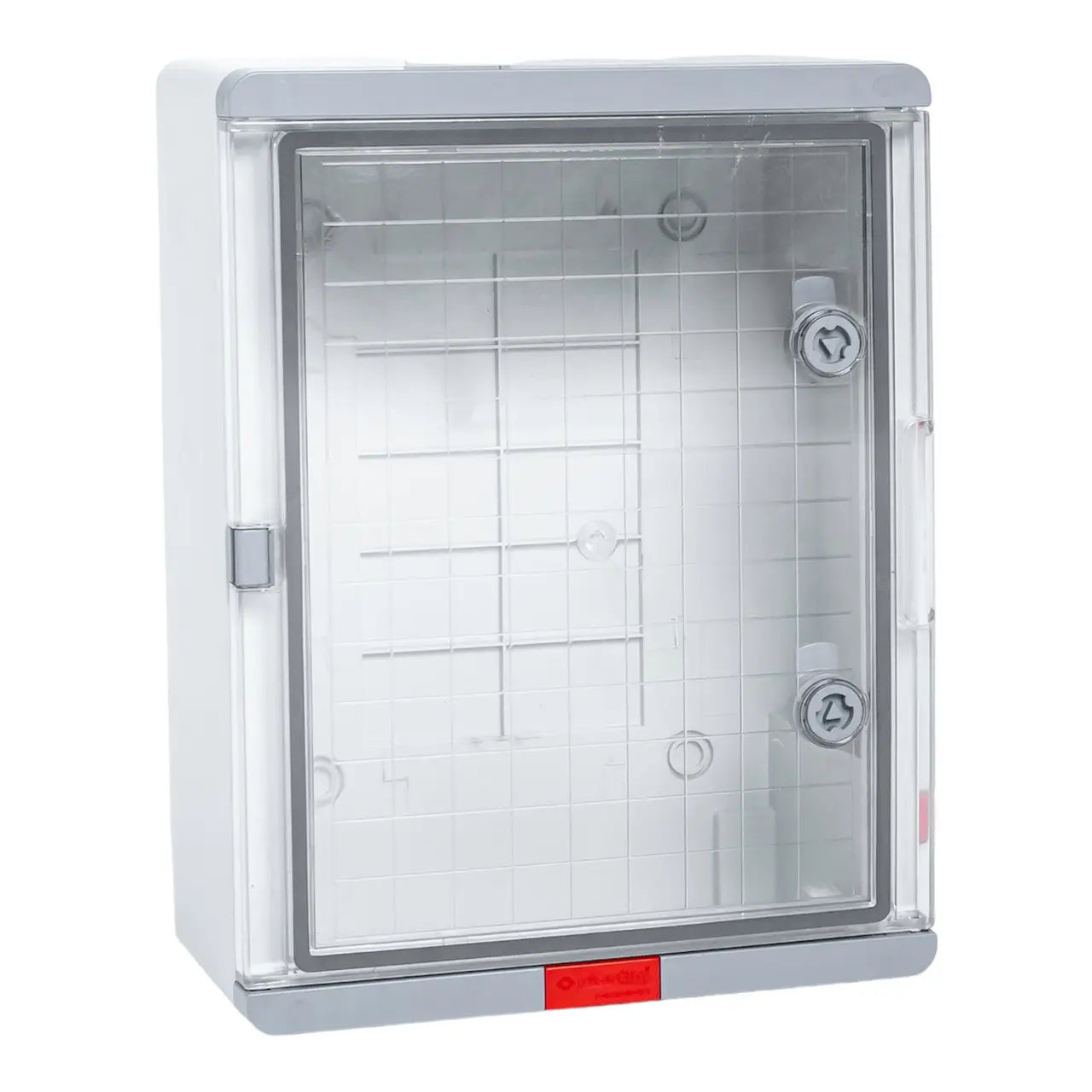

Plastic box IP 67, transparent door, 300x200x130 mm

Hermetic plastic electrical panel IP67 with mounting panel Plastim (Turkey)

The impact-resistant IP67 panel from the Turkish manufacturer Plastim is a reliable solution for protecting electrical connections in environments with high humidity, dust, and chemical loads. Its durable plastic housing and high degree of hermetic sealing make it suitable for outdoor use, industrial enterprises, construction projects, and marine infrastructure.

Advantages of the plastic hermetic enclosure IP67

Complete protection against dust and moisture (IP67)
The device is fully protected against dust and can withstand temporary immersion in water up to 1 meter deep for up to 30 minutes. Ideal for car washes, outdoor installations or humid and dusty environments.

Corrosion Resistance
The plastic housing does not rust, which is an advantage, especially in marine climates, chemical plants, and areas with high humidity.

Easy Installation and Transport
Low weight makes installation and relocation easy, even in hard-to-reach places.

High Dielectric Properties
Plastic is a non-conductive material, providing additional electrical insulation and increasing the level of safety.

UV Resistance
UV-stable ABS plastic retains its strength and color fastness even after prolonged exposure to sunlight.

Technical Parameters

• Material: ABS, UV stable, halogen-free.

• Protection: IP67

• Impact resistance (IK): IK08

• Rated current: 800 A

• Rated voltage: 690 V

• Operating temperature: -35 to +65 °C

• RAL color code: 7035

• Dimensions (H × W × D): 300 × 200 × 130 mm

• Packaging dimensions: 304 × 204 × 134 mm

• Net weight: 1.7 kg
