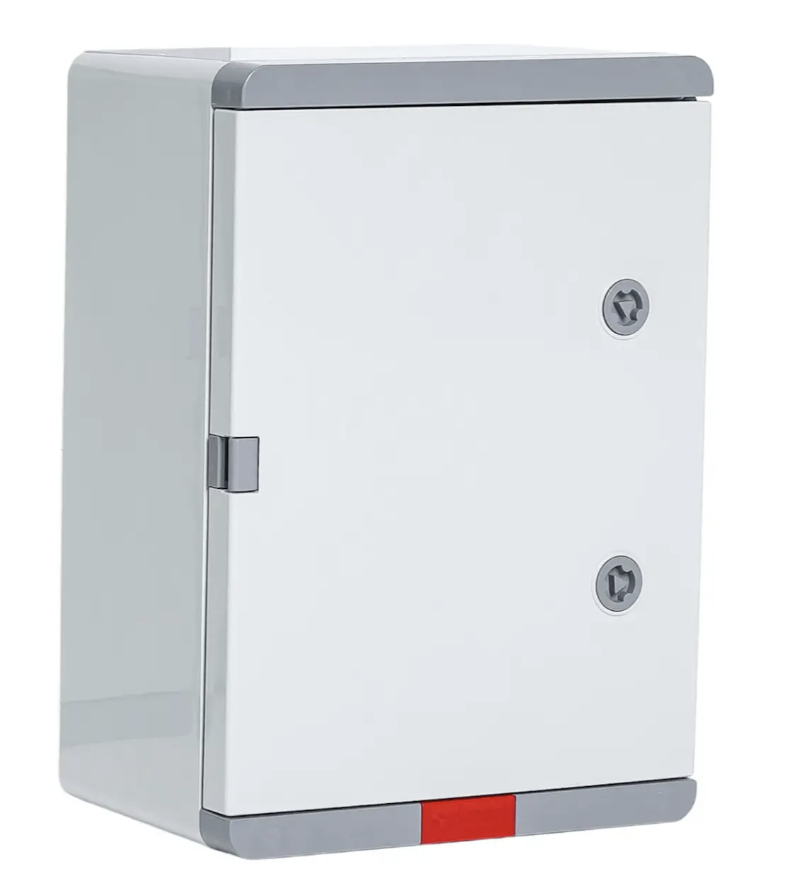

Impact-resistant hermetic plastic housing with IP67 protection and mounting panel, Plastim (Turkey).
The plastic housing with IP67 protection has several significant advantages, especially for use in harsh environmental conditions:
high protection against moisture and dust:
The IP67 rating means that the housing is completely protected against dust and can withstand temporary immersion in water up to 1 m deep for 30 minutes, making it ideal for installation in damp or dusty locations, such as outdoors, industrial areas or near bodies of water.
Corrosion resistance:
Unlike metal panels, plastic is not subject to corrosion, which is especially valuable in aggressive environments - near the sea, in chemical plants or in enterprises with high humidity levels.
Easy and simple installation:
The plastic housing is much lighter than the metal housing, which makes it easier to transport and install, especially in hard-to-reach places.
Dielectric properties:
Plastic does not conduct electricity, which increases safety when working with electrical equipment and reduces the risk of short circuits.
Resistance to UV radiation:
If special ultraviolet plastic is used, the protective agent retains its properties for a long time even when constantly exposed to sunlight.
Technical characteristics
Resistance to: chemicals, alkalis, oils, salts, etc.
Rated voltage: up to 690 V
Maximum current: up to 800 A
Operating temperature: -35°C + 65°C
Material: HB ABS
Mounting plate: 1 mm galvanized steel
IP protection: IP67
IK protection: IK08
Color: RAL7035 gray
Application examples
Humid and dusty environment
Electrical shielding in car washes, swimming pools, water parks, fountains.
Mounting boxes for controlling irrigation systems and pumping stations.
Equipment in food processing plants where wet cleaning and disinfection are carried out regularly.
Industrial equipment
Equipment protection in dusty workshops, concrete batching plants and metallurgical plants.
Installation of guards in areas with aggressive environments (e.g. chemical plants).
Maritime and port infrastructure
Protection of electrical installations on platforms, in ports and on ships.
Use in coastal areas with high humidity and salt water exposure.
Construction sites
Temporary power distribution blocks for operating construction machinery in adverse weather conditions.
Underground installations
