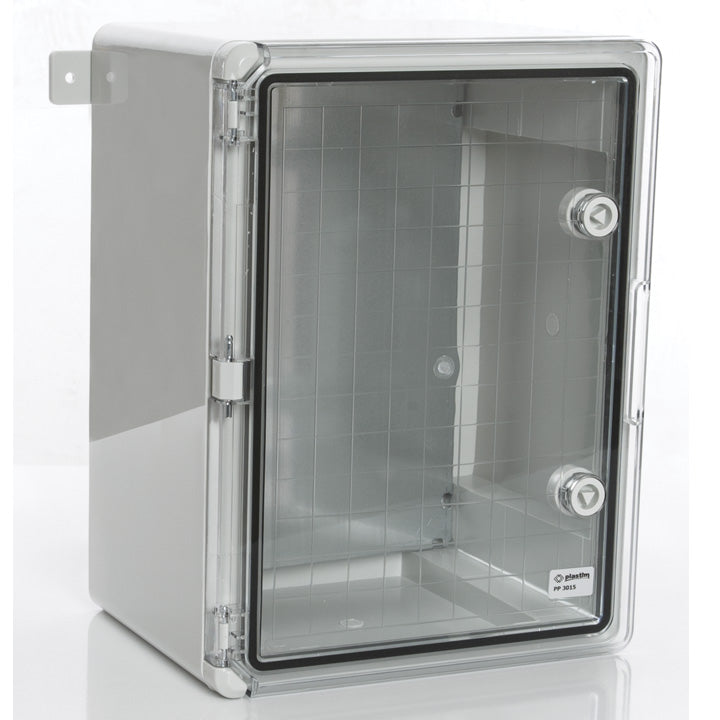

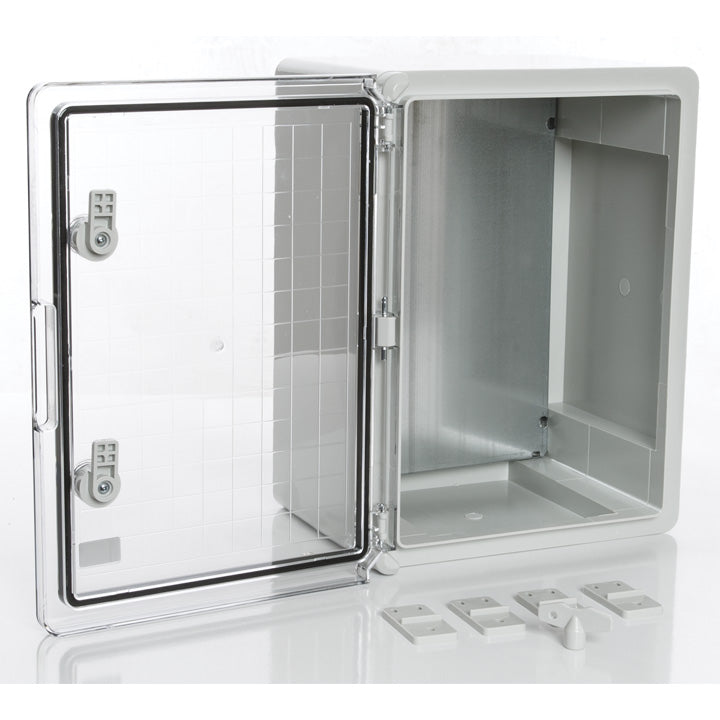

Plastic transparent distribution cabinet door 300x400x220mm IP65 PP3015

Plastic distribution cabinet, transparent door, joint 300x400x220mm, IP65, PP3015 Plastim

The new plastic waterproof enclosures manufactured by the Turkish company Plastim open a new page in the use of plastic protective enclosures for automation and energy distribution tasks.

• Reinforced boxes with metal pin

• New enclosure design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the protector retains all its improved properties -35/+60C.

• Completely corrosion-resistant lightweight, galvanized solid metal mounting panel.
• Can be equipped with transparent doors and DIN reinforced metal pin rails;

MAIN TECHNICAL CHARACTERISTICS

• Mounting panel: made of 1 mm thick galvanized steel.
• Material: HB ABS halogen-free + polycarbonate (door).
• Width: 300 mm
• Height: 400 mm
• Depth: 220 mm
• Color: light grey
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 3.40 kg
