Vendor: Plastim

Plastic transparent door 500x700x250mm IP65 PP3020

Barcode: PP3020
€152,80
€152,80
excl. VAT: €126
Low stock: 3 left
  • Description
  • Payment methods
  • Warranty

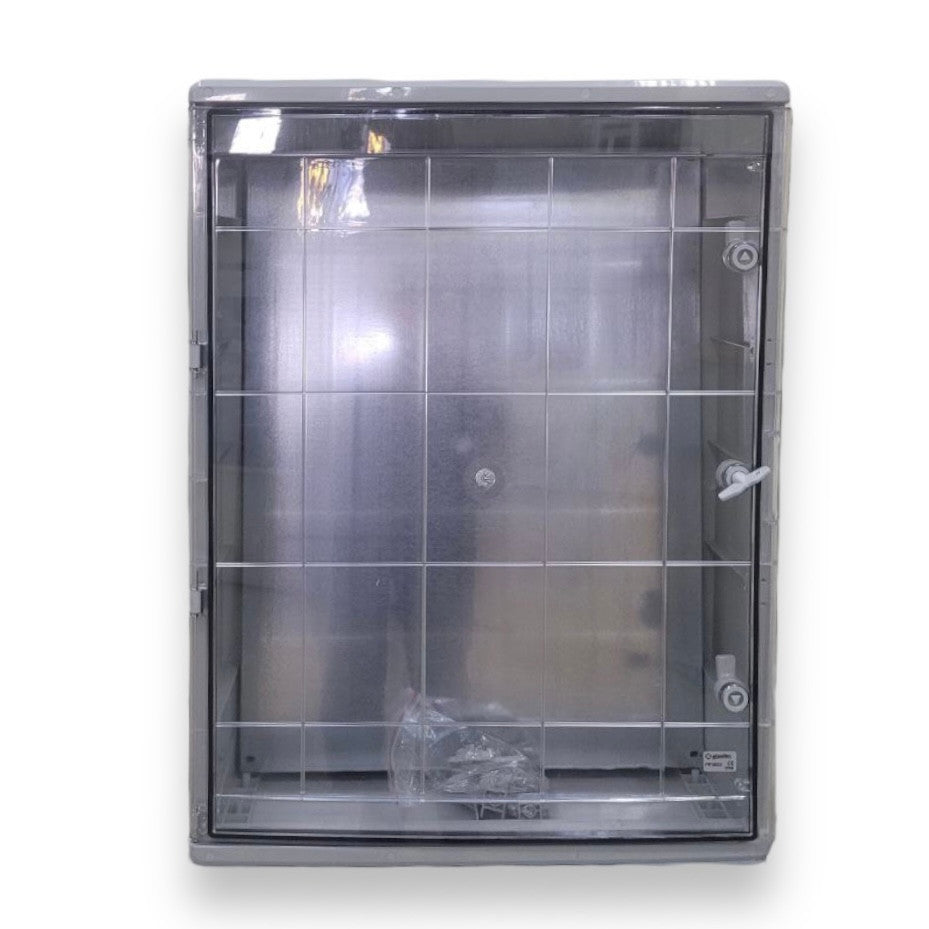

Plastic distribution cabinet, transparent door, joint 500x700x250mm, IP65, PP3020 Plastim

The new plastic waterproof enclosures produced by the Turkish company Plastim open a new chapter in the use of plastic protective enclosures for automation and power distribution tasks.

  • Reinforced hinges with metal pin

  • New enclosure design with corner reinforcements and increased thickness of the door and the entire product.

  • Extended temperature range in which the enclosure maintains all its improved properties -35/+60C

  • Fully corrosion-resistant lightweight solid galvanized metal mounting panel
  • Can be equipped with transparent doors and DIN rails reinforced with metal pin hinges;

MAIN TECHNICAL FEATURES

  • Mounting panel: made of 1 mm thick galvanized steel
  • Material: Halogen-free HB ABS + polycarbonate (door).
  • Width: 500 mm
  • Height: 700 mm
  • Depth: 250 mm
  • Color: light grey
  • Enclosure: IP65, IK08
  • Rated voltage: up to 690 V
  • Maximum current: up to 800 A
  • Operating temperature: -35°C + 65°C
  • Weight: 10.10 kg
The electrical equipment we supply meets high quality standards, comes with a 24-month warranty, and complies with all EU requirements.
In case of claims, returns are free of charge.
