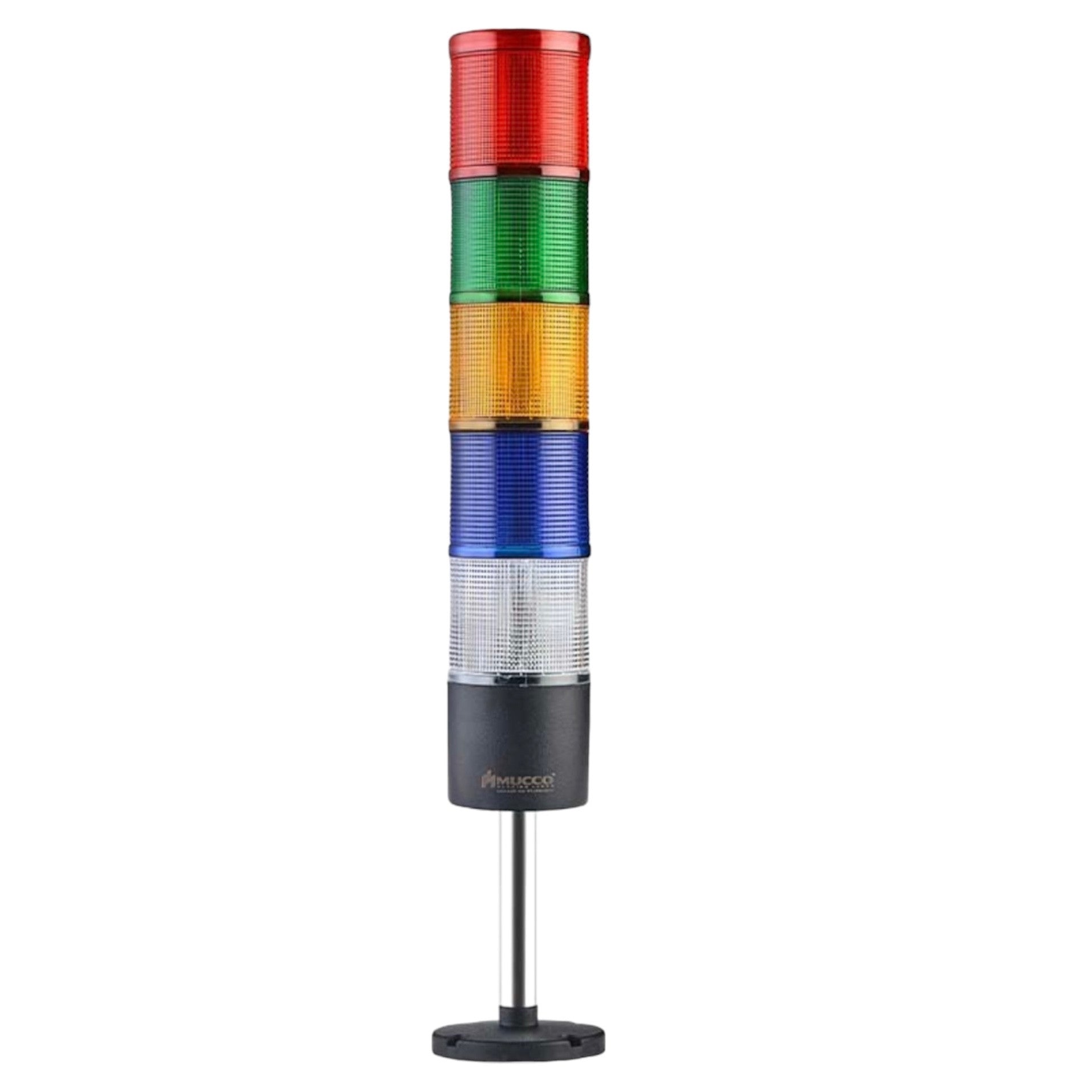

Five-storey signal pole with surface mounting and 10 cm tube

Five-tier signal light with surface mounting and 10 cm tube, 12-24, 40-250V AC/DC, SNT-7013 / SNT-7022, manufacturer MUCCO (Turkey)

Buzzer options No

Beacon type Flashing

TECHNICAL DATA

12 ~ 24 V AC/DC: 174 mA ±10%

• Housing material: ABS (body) + Polycarbonate (lens)
• Lens colors: Red, Green, Yellow, Blue, White (customizable colors)
• Lens diameter: ø70 mm
• Light source: LED SMD
• Light mode: Steady, Flashing, Strobe, Rotating
• Input response time: On/Off: max. 10 ms
• Tone: 1 tone (wire control)
• Alarm sound: 103~116 dB at 1 m (3.3 ft)
• Connection: Wired connection
• Mounting type: Foldable base and options with external tube
• Operating conditions: -20°C to +50°C (-4°F to +122°F)
• Operating life: 50,000 hours
• Protection class: IP65
• Water, dust, heat, and UV resistant
• ISO-9001, CE, RoHS2 and EAC
