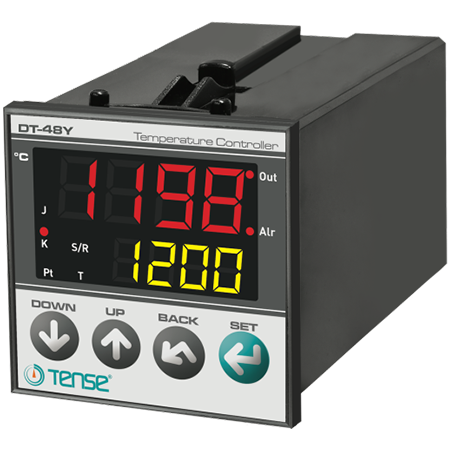

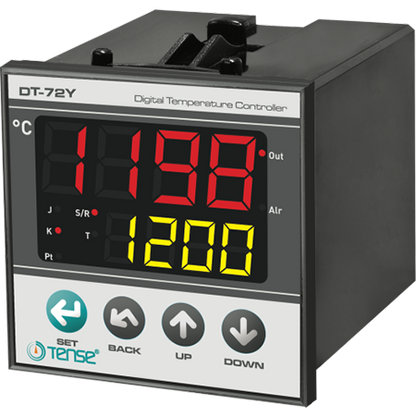

PID Temperature Controller TENSE - Panel (DT-48Y)

Product description:
The PID temperature controller is designed for the control and monitoring of heating processes in heating, air conditioning and ventilation systems, building automation and industrial equipment. The controller supports both PID control and conventional ON/OFF control and offers self-optimization to prevent overshoot of the process value.

Functions and features:

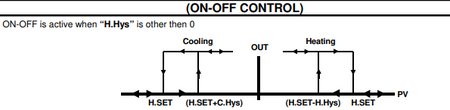

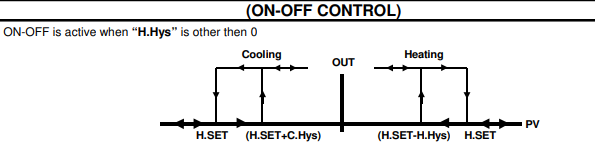

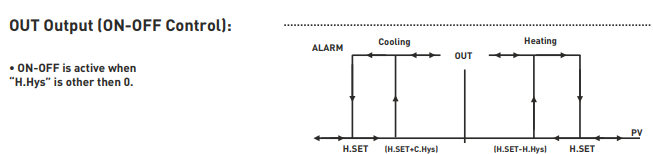

• P, PI, PD, PID, ON/OFF control type.

• Automatic PID parameter tuning

• Anti-overshoot

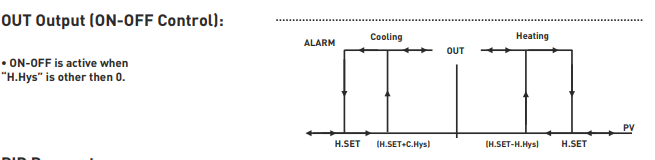

• ON-OFF delay in cooling mode

• Password protection

• EEPROM memory for saving settings after power failure

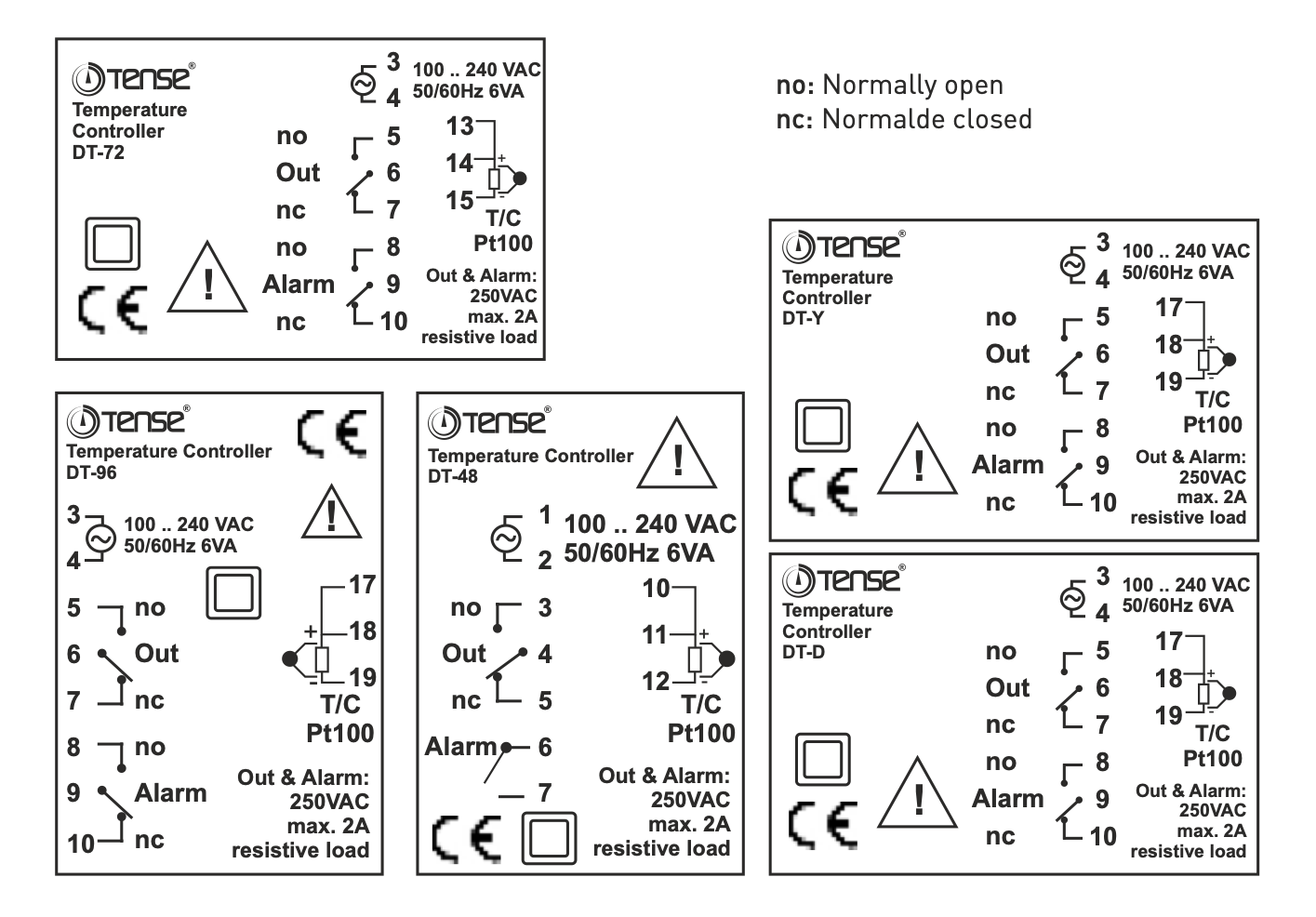

• Outputs:

  • OUT relay (NO+NC), 250 VAC, 2A

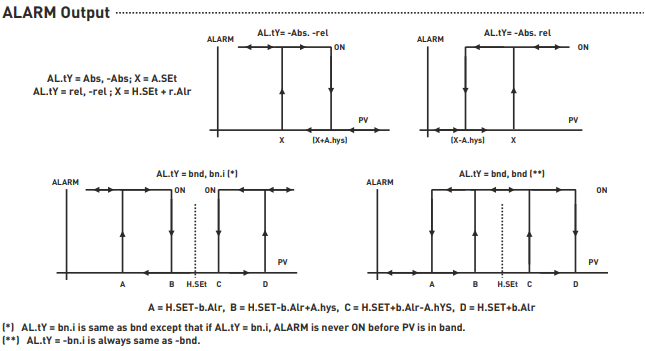

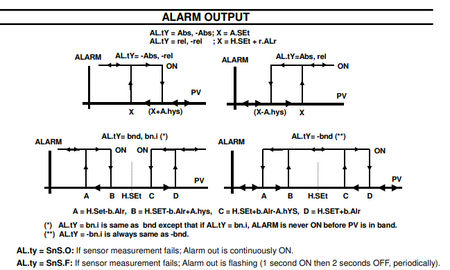

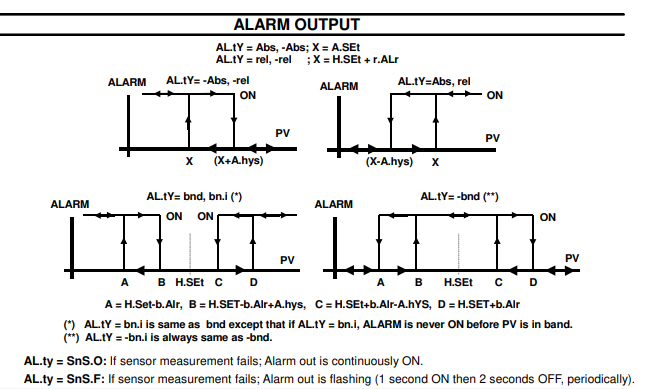

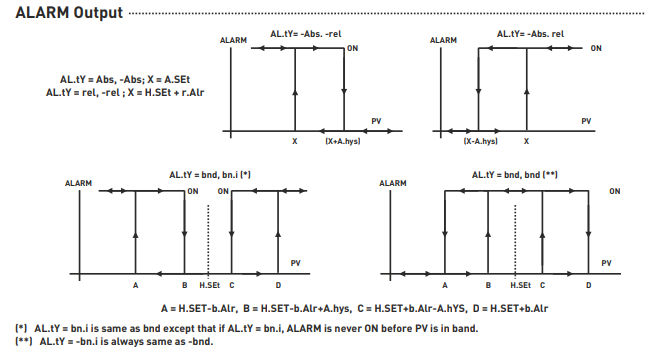

  • ALARM relay (NO+NC), 250 VAC, 2A - triggers if value is exceeded or not reached (DT-48Y).

Measuring range and sensors:

• Measuring range: -100 °C ... +1750 °C

• Sensor type: T/C (J,K,T,S,R) or Pt100.

• Resolution: 0.1 °C

• Range setting depends on the connected sensor

Display:

• High contrast display, readable even in low light.

• Simultaneous display of set value (SV) and actual value (PV).

Recommended accessories:

• J-type Fe-Const thermocouples (6/8 m) with cables: 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m or 5 m.

Applications:

• Heating and ventilation temperature control

• Industrial processes requiring precise PID control

• Alarm in case of elevated or decreased temperature

Advantages:

• Reliable Turkish TENSE product

• Easy panel mounting

• High quality and safe relay outputs
